Description

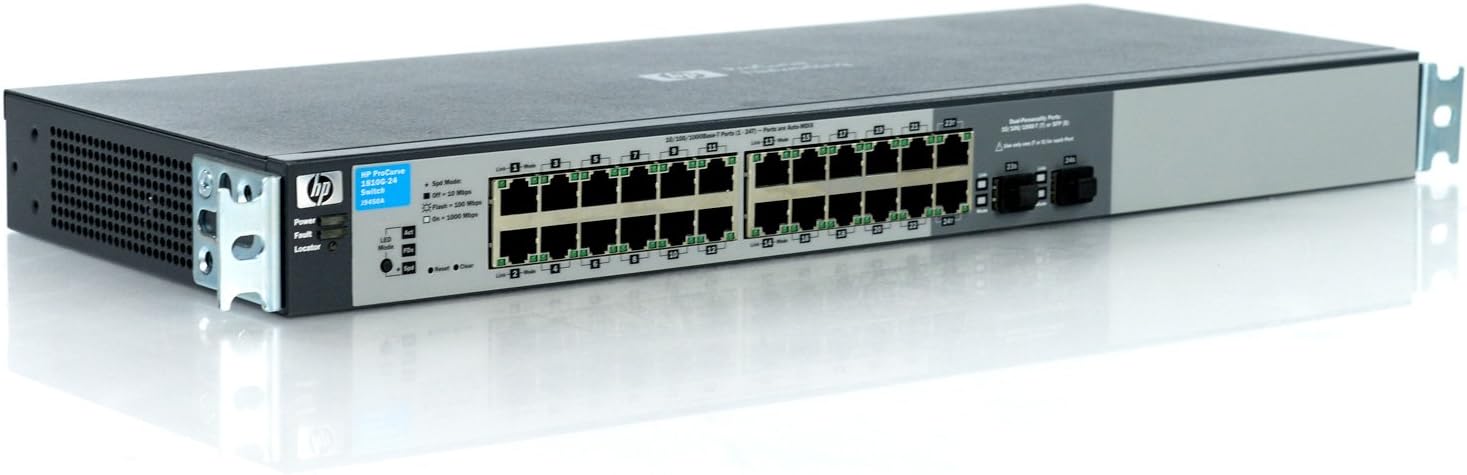

The HP J9450A is a ProCurve 1810G-24 Gigabit Ethernet switch featuring 24 ports, including 2 dual-personality SFP/RJ-45 ports. Designed for small to medium-sized networks, it offers silent, fanless operation, VLAN support, QoS, and energy-efficient performance in a compact, flexible form factor.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
HP Networking |
| Category |
|
| Part Number |
J9450A |
| Subcategory |
Network Devices |
| Colour |
Black |
|
Switch Type
|
Managed |
| Basic Switching RJ-45 Ethernet Ports Quantity |
24 |
| Basic Switching RJ-45 Ethernet Ports Type |
1 GbE Copper |
| Combo SFP Ports Quantity |
2 |
| Console Port |
RJ-45 |
| MAC Address Table |
8000 entries |
| Switching Capacity |
48 Gbit/s |
| Throughput |
35.7 Mpps |
| Latency (10-100 Mbps) |
7.4 µs |
| Latency (1 Gbps) |
3 µs |
| Internal Memory |
16 MB |
| Flash Memory |
8 MB |
| AC Input Voltage |
100 - 240 V |
| AC Input Frequency |
50 - 60 Hz |
| Output Power |
30 W |
| Operating Temperature |
0 - 40 °C |
| Storage Temperature |
-40 - 70 °C |
| Operating Relative Humidity |
15 - 95% |
| Storage Relative Humidity |
15 - 90% |
| Heat Dissipation |
102 BTU/h |
| Dimensions (WxDxH) |
442.5 x 171.2 x 43.9 mm |
| Weight |
2.04 kgs |
Information About J9450A
The HP ProCurve 1810G-24 Switch (J9450A) is a 24-port Gigabit Ethernet switch designed for small to medium-sized businesses seeking reliable and cost-effective network connectivity. It features 22 auto-sensing 10/100/1000 RJ-45 ports and 2 dual-personality ports that can function as either additional RJ-45 Gigabit Ethernet ports or as SFP ports for fiber connectivity.
Key Features:
-
Silent Operation: The fanless design ensures quiet operation, making it suitable for office environments where noise is a concern.
-
Energy Efficiency: Supports Energy Efficient Ethernet (EEE) and idle-port power down features to reduce power consumption during periods of low network activity.
-
Quality of Service (QoS): Traffic prioritization (IEEE 802.1p) allows for real-time traffic classification with eight priority levels mapped to four queues, enhancing the performance of critical applications.
-
VLAN Support: Enables network segmentation for improved security and performance optimization.
-
Flexible Deployment: Offers multiple mounting options, including wall, ceiling, under-table, or desktop installations, providing versatility in various environments.
In summary, the HP ProCurve 1810G-24 Switch (J9450A) delivers essential networking features with an emphasis on energy efficiency and quiet operation, making it a suitable choice for businesses looking to enhance their network infrastructure.
