Description

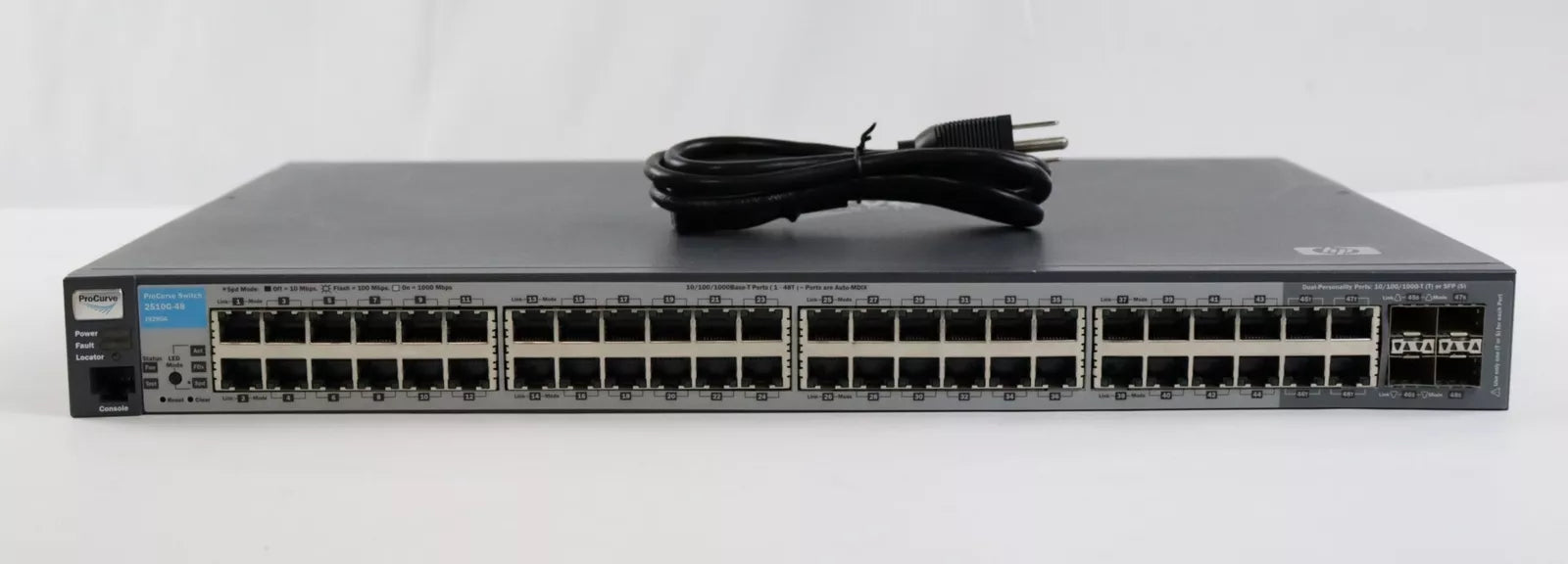

The J9280A is an HP ProCurve 2610-48 Layer 2 managed, stackable switch featuring 48 10/100Base-TX ports and 2 dual-personality Gigabit uplink ports.





Technical Specifications

Condition	New/Never Used Surplus
Brand	HP Networking
Category	Pilot Devices
Part Number	J9280A
Subcatecory	Selector Switches
Product Type	Ethernet Switch
Total Number of Network Ports	48
Port/Expansion Slot Details	48 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Number of Total Expansion Slots	4
Expansion Slot Type	SFP
Number of SFP Slots	2
Layer Supported	2
Form Factor	Rack-mountable
Height	1.7 in
Width	17.4 in
Depth	12.7 in
Weight	8.60 lbs





Information About J9280A

The HP ProCurve 2510G-48 Switch, model J9280A, is a Layer 2 managed switch designed to deliver reliable and scalable network connectivity for small to medium-sized businesses. It offers a comprehensive set of features to support high-performance networking environments.

Key Features:

• Port Configuration:

  • 48 auto-sensing 10/100/1000Base-T ports for high-speed network connections.

  • 4 dual-personality ports, each configurable as either:

    • 10/100/1000Base-T RJ-45 port, or

    • Small Form-Factor Pluggable (SFP) slot for fiber connectivity.

• Performance:

  • Switching capacity of 96 Gbps, ensuring efficient data handling.

  • Throughput of 71.4 million packets per second (Mpps) for optimal performance.

• Management and Security:

  • Comprehensive Layer 2 feature set including support for VLANs, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).

  • Quality of Service (QoS) capabilities to prioritize critical network traffic.

  • Access control lists (ACLs) and port security features to enhance network protection.

• Design and Efficiency:

  • Rack-mountable 1U form factor, facilitating easy integration into standard network racks.

  • Fanless design, ensuring quiet operation suitable for office environments.

  • Energy-efficient, with a maximum power consumption of 92 watts.

Additional Specifications:

• Memory: Equipped with 64 MB SDRAM and 16 MB flash memory.

• Operating Temperature Range: 0°C to 45°C (32°F to 113°F).

The HP ProCurve 2510G-48 Switch (J9280A) is engineered to provide essential networking solutions with a focus on reliability, security, and energy efficiency, making it a suitable choice for businesses seeking a cost-effective and robust network infrastructure.
