Description

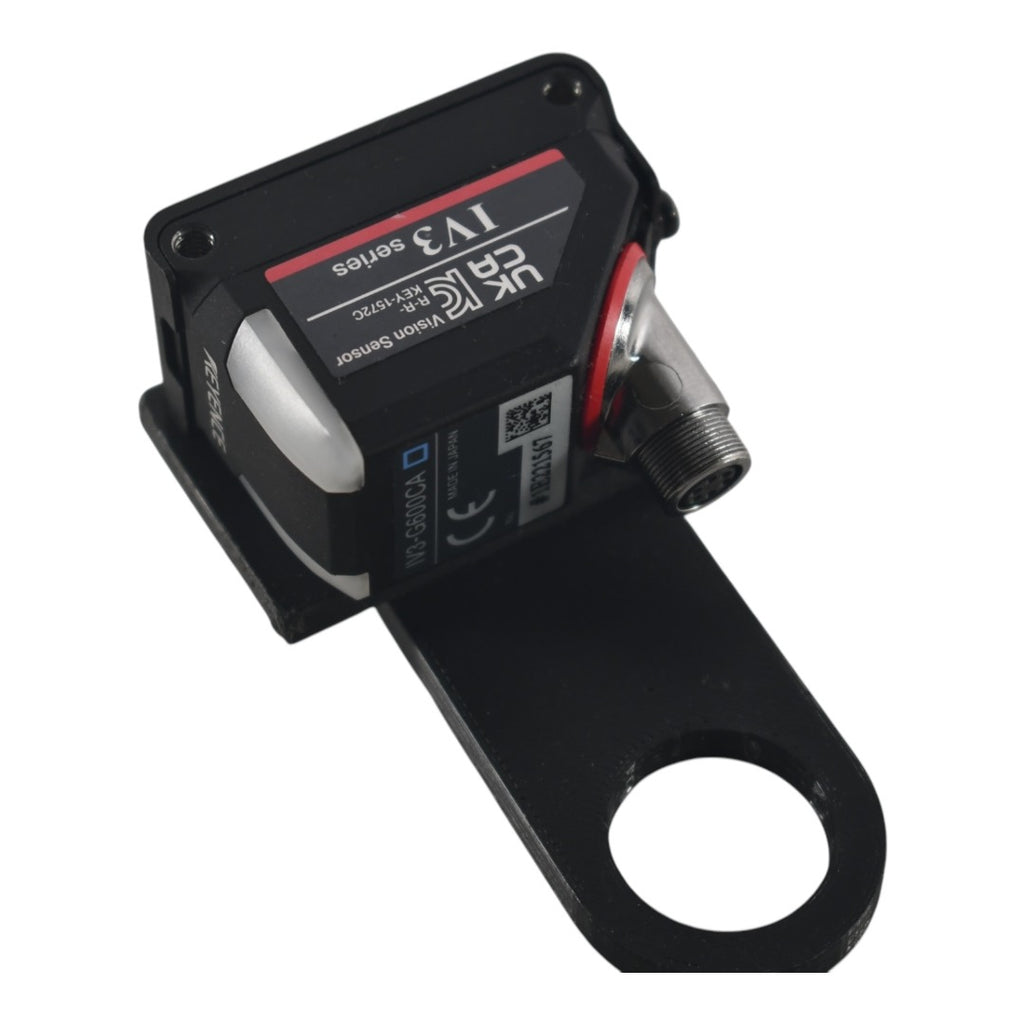

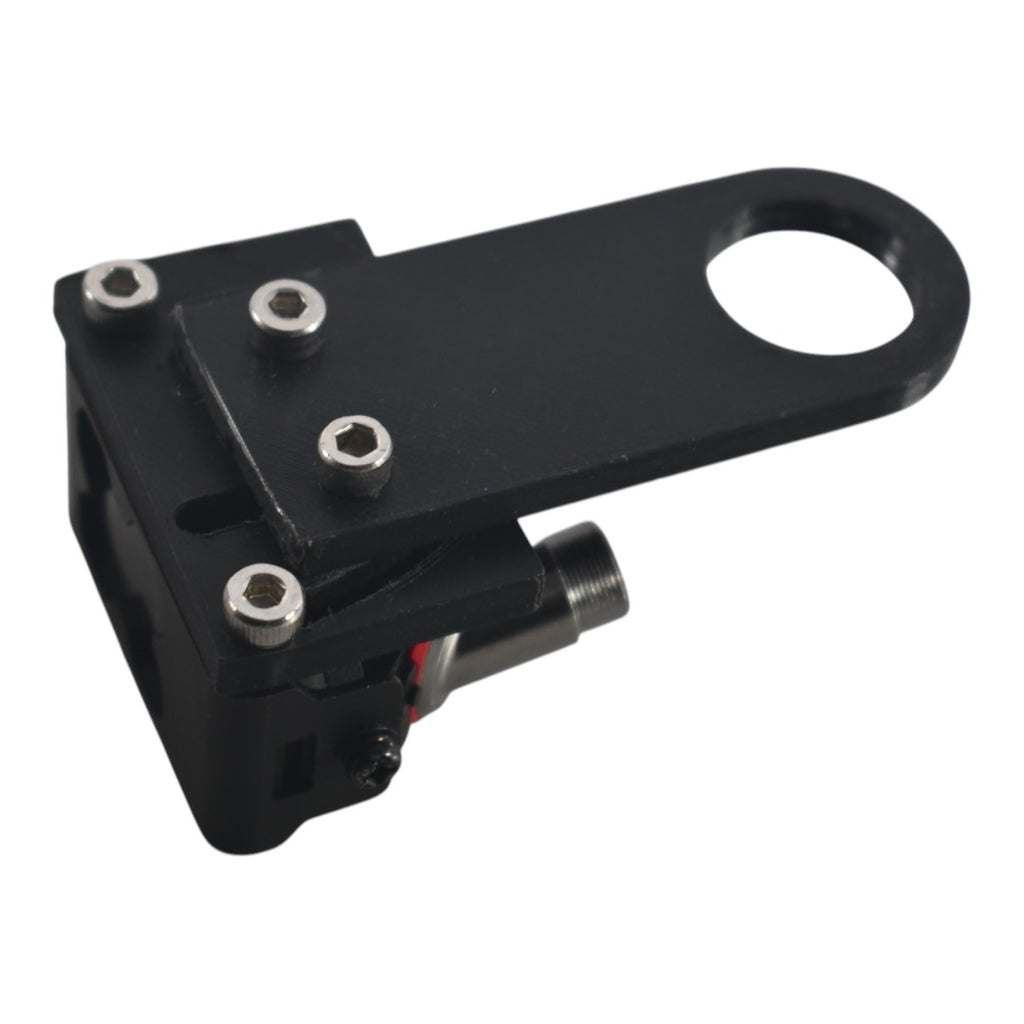

The Keyence IV3-G600CA is a compact, wide-view color autofocus vision sensor head designed for flexible visual inspection in industrial automation. Offering a large field of view and built-in white LED illumination, it delivers reliable image capture across various distances and lighting conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Sensors & Switches |
| Part Number |
IV3-G600CA |
| Subcategory |
Sensor Accessory |
| Series |
IV3 Series |
| Type |
Wide-view color AF model |
| Image Sensor |
1/2.9″ color CMOS |
| Resolution |
1280 (H) × 960 (V) pixels |
| Installed Distance |
50 mm (1.97″) or more |
| Field of View |
50 mm: 51 × 38 mm; 3000 mm: 2730 × 2044 mm |
| Focus Adjustment |
Auto |
| Exposure Time |
12 µs to 9 ms |
| Lighting |
White LED (pulse/continuous selectable) |
| Indicators |
Dual indicator LEDs |
| Enclosure Rating |
IP67 |
| Operating Temperature |
0 °C to +50 °C (32 °F to 122 °F) |
| Relative Humidity |
35–85 % RH (non-condensing) |
| Vibration Resistance |
10–55 Hz, 1.5 mm amplitude (2 h each X/Y/Z) |
| Shock Resistance |
500 m/s² (approx. 50 G), 3 times in each axis |
| Material |
Zinc die-cast case, acrylic front cover, TPU indicator cover |
| Weight |
75 g (2.65 oz) without lighting unit / 225 g (7.94 oz) with lighting unit |
Information About IV3-G600CA
The IV3-G600CA belongs to the Keyence IV3 Series of intelligent vision sensors, combining color recognition, autofocus functionality, and AI-assisted inspection capabilities in a compact housing. Featuring a 1/2.9-inch color CMOS sensor with 1280 × 960 resolution, the IV3-G600CA can cover broad inspection areas—from small components at 50 mm up to large objects at 3,000 mm. The unit’s autofocus function simplifies installation and adjustment, while its IP67-rated zinc die-cast housing provides excellent resistance to dust and moisture. Equipped with switchable pulse or continuous white LED lighting, the IV3-G600CA ensures consistent image quality for a wide range of applications, including packaging verification, assembly confirmation, and quality inspection.
Key Features:
- Wide Field of View: Captures large areas, ideal for multi-point inspection or part positioning.
- High-Resolution Imaging: 1/2.9″ color CMOS sensor with 1280 × 960 pixel output ensures detailed detection.
- Autofocus Function: Automatically adjusts focus to maintain image clarity at varying distances.
- Built-In White LED Illumination: Provides even lighting under both pulse and continuous modes.
- Durable Industrial Design: IP67 enclosure resists dust, oil, and water for reliable operation.
- Flexible Installation: Compact form factor allows mounting in constrained spaces.
- Stable Performance: Withstands vibration (10–55 Hz) and shock (500 m/s²) for use in demanding environments.
- Temperature Tolerant: Operates from 0 °C to +50 °C (32 °F to 122 °F).
- Dual Indicator LEDs: Visual feedback simplifies setup and status monitoring.
- Lightweight Construction: Only 75 g without lighting unit (225 g with lighting unit) for easy integration.
The IV3-G600CA combines precision, durability, and ease of use—ideal for high-speed visual inspection and automation tasks.
