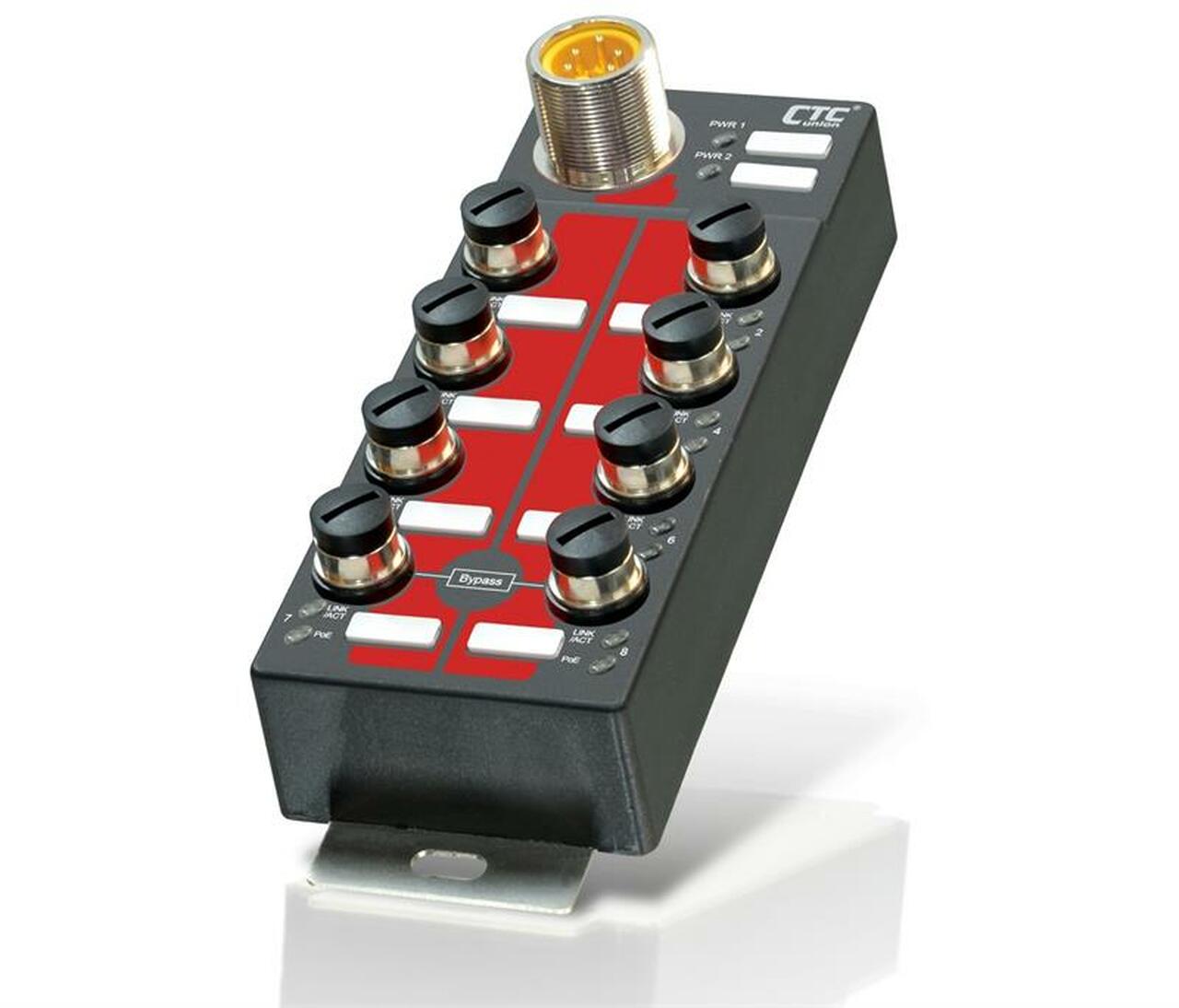

The ITP-800-8PHE24 is an unmanaged Fast Ethernet PoE switch that provides 8 10/100Base-TX PoE+ Fast Ethernet ports. The Ethernet switch is designed for industrial applications in harsh environments.

The switch's Ethernet ports utilize M12 connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances such as vibration and shock.

The ITP-800-8PHE24 series Ethernet switches are compliant with EN50155, covering operating temperature, power input voltage, surge, ESD, vibration, and shock, thus making these switches suitable for industrial applications in vehicle, rolling stock, and railways.

All Industrial Ethernet switches include a DIN rail mounting kit.

Features

• IP67 grade housing for against water, dust, and oil
• Rugged and fanless design
• 8-Port 10/100Base-TX UTP with 8x IEEE802.3at/af PoE Ethernet Switch
• Use M12/M23 connector anti-vibration and shock for a vehicle, rolling stock, and railway applications
• 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency (94~97%) to boost PoE output voltage to 55VDC
• Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100 meters
• Provides 8-port IEEE802.3af / 802.3at PoE output (30W per Port), Maximum PoE output power budget 180W
• Supports flow control
• DIN rail or wall mounting installation
• Supports broadcast storm protection
• Supports auto-negotiation and auto-MDI/MDI-X
• Wide operating temperature -40~75°C (ITP-800-8PHE24)
• CE, FCC, EN50155, and EN50121-4 for railway certified
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
