Description

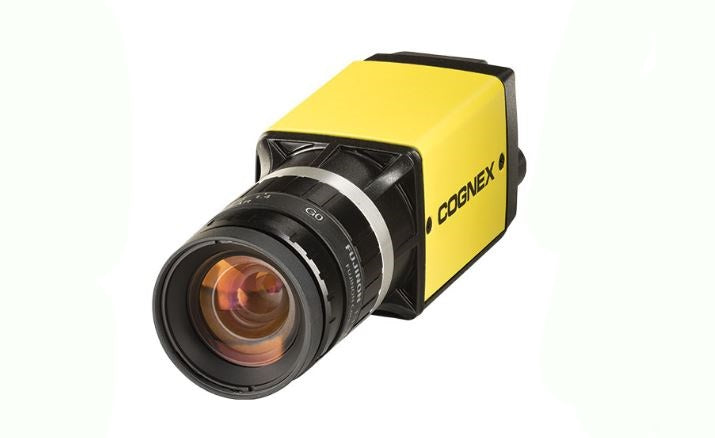

The Cognex ISM1400-11 is a compact smart vision system designed for high-performance industrial inspection and quality control. It combines advanced vision processing with a 1/3-inch CCD sensor to deliver accurate imaging in space-constrained applications. This system supports efficient integration into automated processes requiring reliable visual inspection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cognex |
| Category |
Camera & Vision |
| Part Number |
ISM1400-11 |
| Subcategory |
CCD Camera |
| Product Type |
Smart Vision System |
| Series |
In-Sight Micro 1000 |
| Sensor Type |
1/3-inch CCD |
| Pixel Bit Depth |
8 bits per pixel |
| Power Consumption |
6.49 W |
| Connectivity |
Ethernet, I/O, PoE |
| Cables Supported |
Breakout, Ethernet, I/O Module |
| Protection Rating |
IP51 (with cables and lens attached) |
| Indicators |
LED1, LED2, Ethernet |
| Shipping Shock Rating |
80 G with 50 g or lighter lens |
Information About ISM1400-11
The ISM1400-11 is part of the Cognex In-Sight Micro 1000 series developed for embedded industrial vision applications. It is built with a compact housing and integrated processing to support advanced vision algorithms without external controllers. The system interfaces with industrial networks and I/O through Ethernet and PoE connectivity for streamlined integration. It is commonly used in automated inspection, identification, and measurement tasks where precision and space efficiency are critical.
Key Features:
- In-Sight Micro 1000 Platform: Designed for compact, embedded industrial vision applications.
- CCD Image Sensor: Utilizes a 1/3-inch CCD sensor for consistent image quality.
- Smart Vision Processing: Executes inspection and analysis directly on the device.
- Power over Ethernet Support: Simplifies installation by combining power and data.
- Industrial Connectivity: Includes Ethernet and I/O connectors for system integration.
- Visual Status Indicators: LED indicators provide operational and network status.
- Industrial Protection Rating: Rated IP51 with cables and lens attached.
The ISM1400-11 delivers the reliability and precision required for compact industrial vision inspection and automation systems.
