IS220PAICH2B Analog I/O Pack: Specifications and Fit

The IS220PAICH2B is the Mark VIe (and Mark VIeS) analog I/O pack in its H2 configuration — 12 channels per terminal board, made up of 10 analog inputs and 2 analog outputs. The first eight inputs are configurable to 1-5 V dc, ±5 V dc, ±10 V dc, or 0-20 mA; the last two accept 0-20 mA or ±1 mA. A 16-bit A/D converter handles input conversion and a 14-bit D/A converter (0.5% accuracy) handles the outputs, at a normal scan time of 5 ms (200 Hz) — note that the controller's own frame rate typically runs at 100 Hz, so the pack is rarely the limiting factor. Output 1 supports the H2-specific 0-200 mA range in addition to the standard 0-20 mA on output 2, and output loading is rated at 800 Ω for the 4-20 mA range and 50 Ω for the 200 mA range.

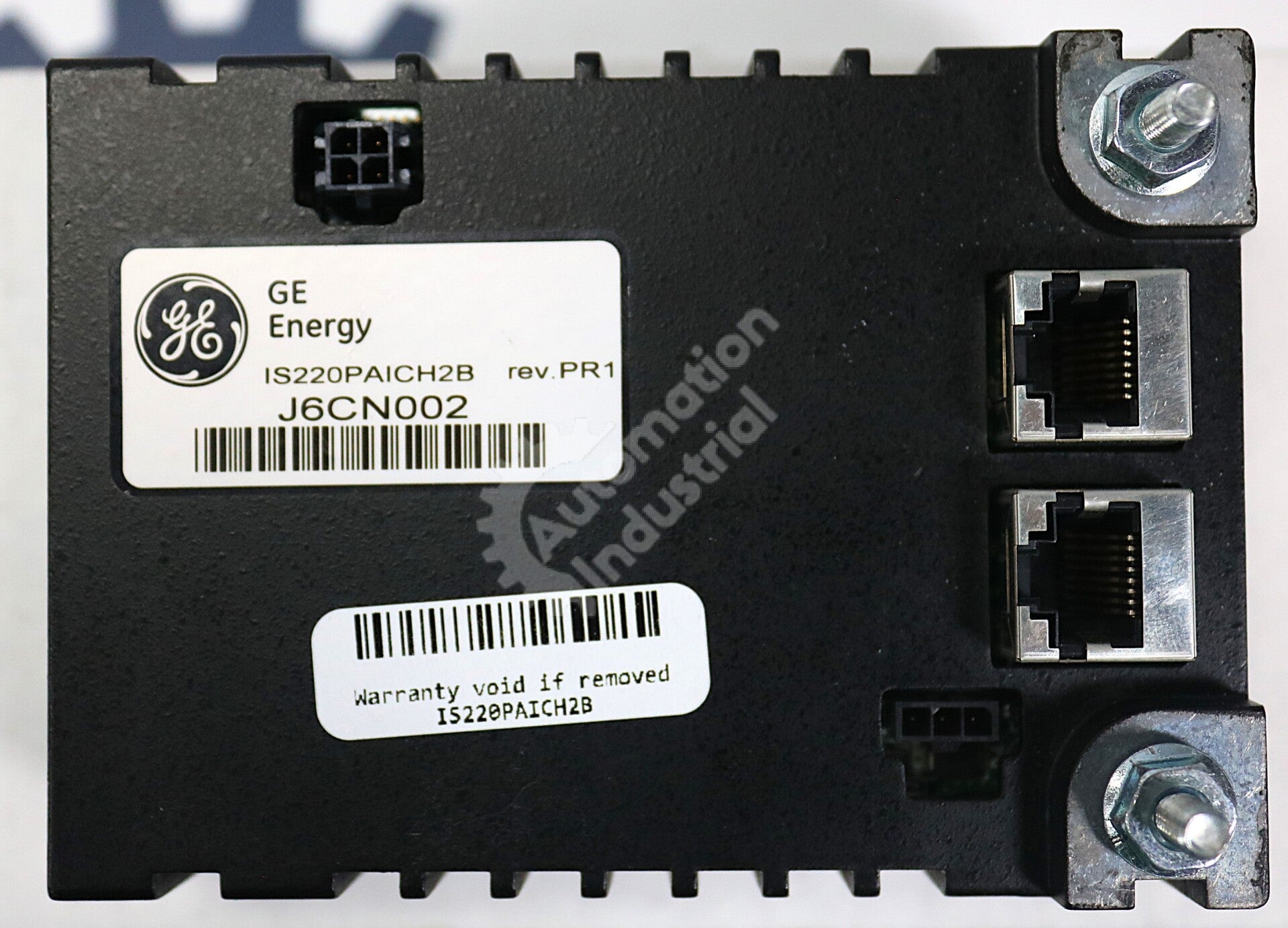

Physically, the pack draws 5.3 W typical (6.2 W worst case) from a 28 V dc supply carried on a 3-pin connector, operates from -30 to 65°C, and connects to its terminal board through a single DC-37 pin connector that carries the 24 input signals plus ID, relay coil power, and feedback multiplex commands. Dual RJ-45 ports (ENET1/ENET2) link the pack to the <R>, <S>, or <T> controller over IONet; standard practice on dual-connected systems is to run ENET1 to the network associated with the R controller. The H1B/H2B generation uses a BPPC processor board, which needs ControlST V04.03 or later for full support.

Before You Buy: Check the Terminal Board and Wiring First

• The load terminal resistors for the current-loop inputs live on the terminal board, not the pack — a resistor out of tolerance produces the same bad reading as a failed channel on the PAIC.
• Confirm the terminal board revision: this pack is strictly compatible with the TBAIH1C (or STAI) terminal board revision. An earlier board revision triggers a system compatibility report rather than working silently — that's a configuration mismatch, not damage, and no hardware is harmed by the mismatch itself.
• Run the swap test before ordering a replacement: install the suspect pack on a known-good terminal board (or a known-good pack on the suspect board) and see which one the fault follows.
• Check both ENET1 and ENET2 links, cable condition, and switch health before assuming the pack itself is unresponsive — IONet issues and pack failures look identical from the control room.
• A suicide-relay or output-stage alarm on either analog output does point at the pack's acquisition board, and that's the case where replacing the pack is the right move.

Reading IS220PAICH2B

IS220 = Mark VIe distributed I/O pack, PAIC = analog I/O function, H2 = the generation with the 0-200 mA output daughterboard, B = the BPPC-based hardware revision. Every one of those segments has to line up with your terminal board revision and ControlST project — an H2A and an H2B are close cousins, not the same part. Our GE Speedtronic Part Number Decoder covers the logic behind the full string.

Related Hardware

This pack pairs with TBAIH1C/STAI-type analog terminal boards; it will report a compatibility issue on the DIN-rail mounted DTAI board or on earlier TBAI revisions. For discrete signals on the same panel, see the related PDIA, PDOA, and PDIO packs. Our GE Mark VI IS200 Boards collection lists compatible terminal boards for cross-reference.

What to Send for a Fast Quote

• Full part number and suffix (IS220PAICH2B) with revision letter
• A label photo
• Turbine model and Mark control generation
• Quantity
• Urgency of the request

We respond to every request within 24 hours, ship worldwide DDP, and accept purchase orders. As a request-a-quote store we don't list prices online — Request a Quote and our team will confirm stock and terms directly.
