New-Surplus IS215UCVEM09 Mark VI Controller

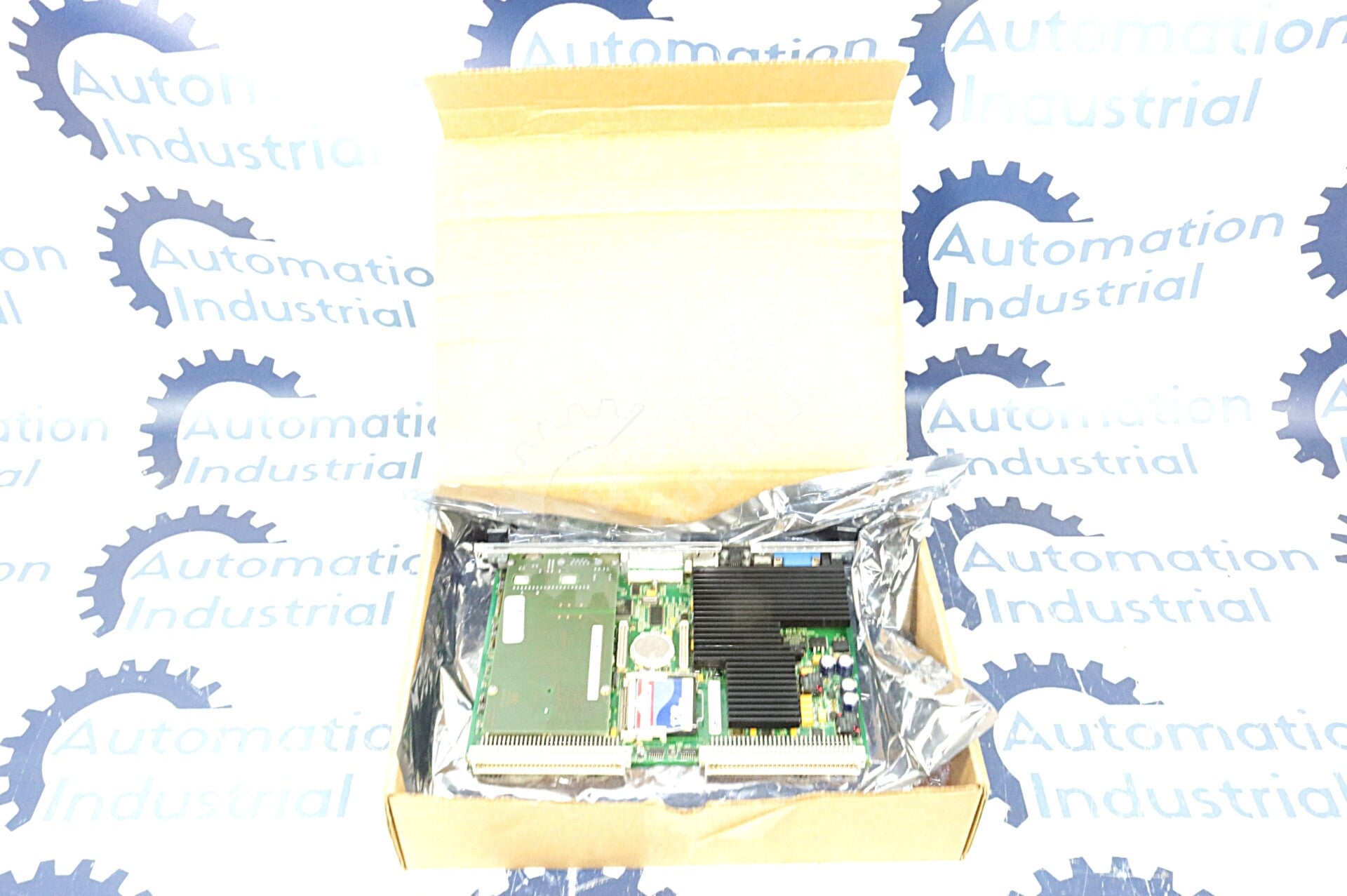

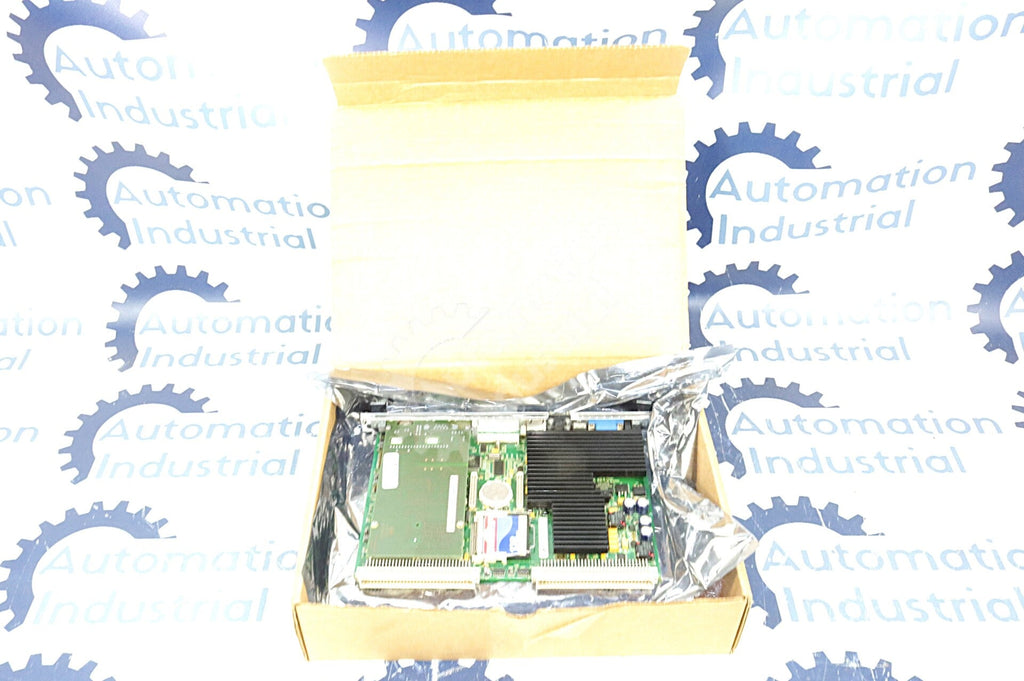

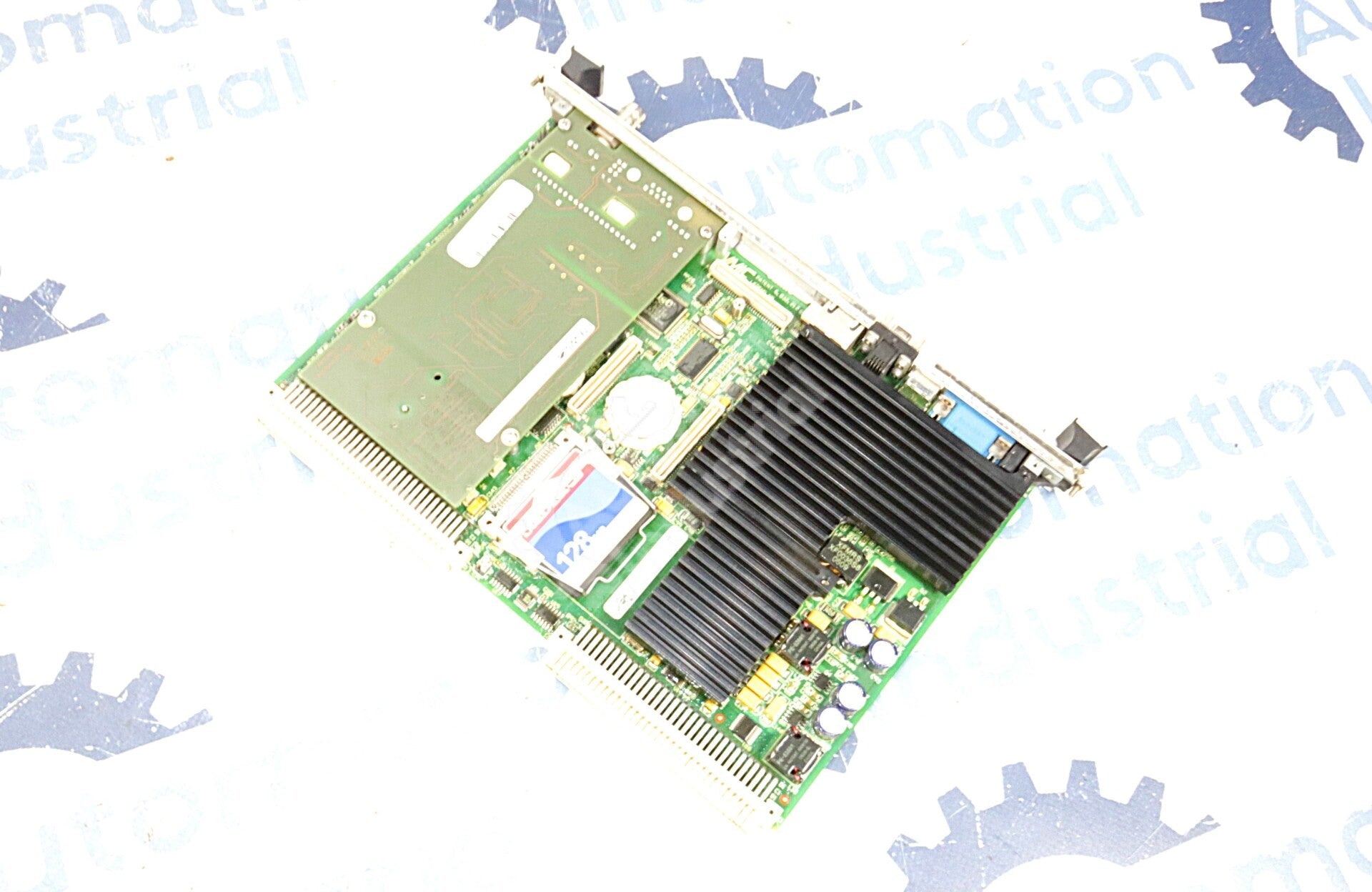

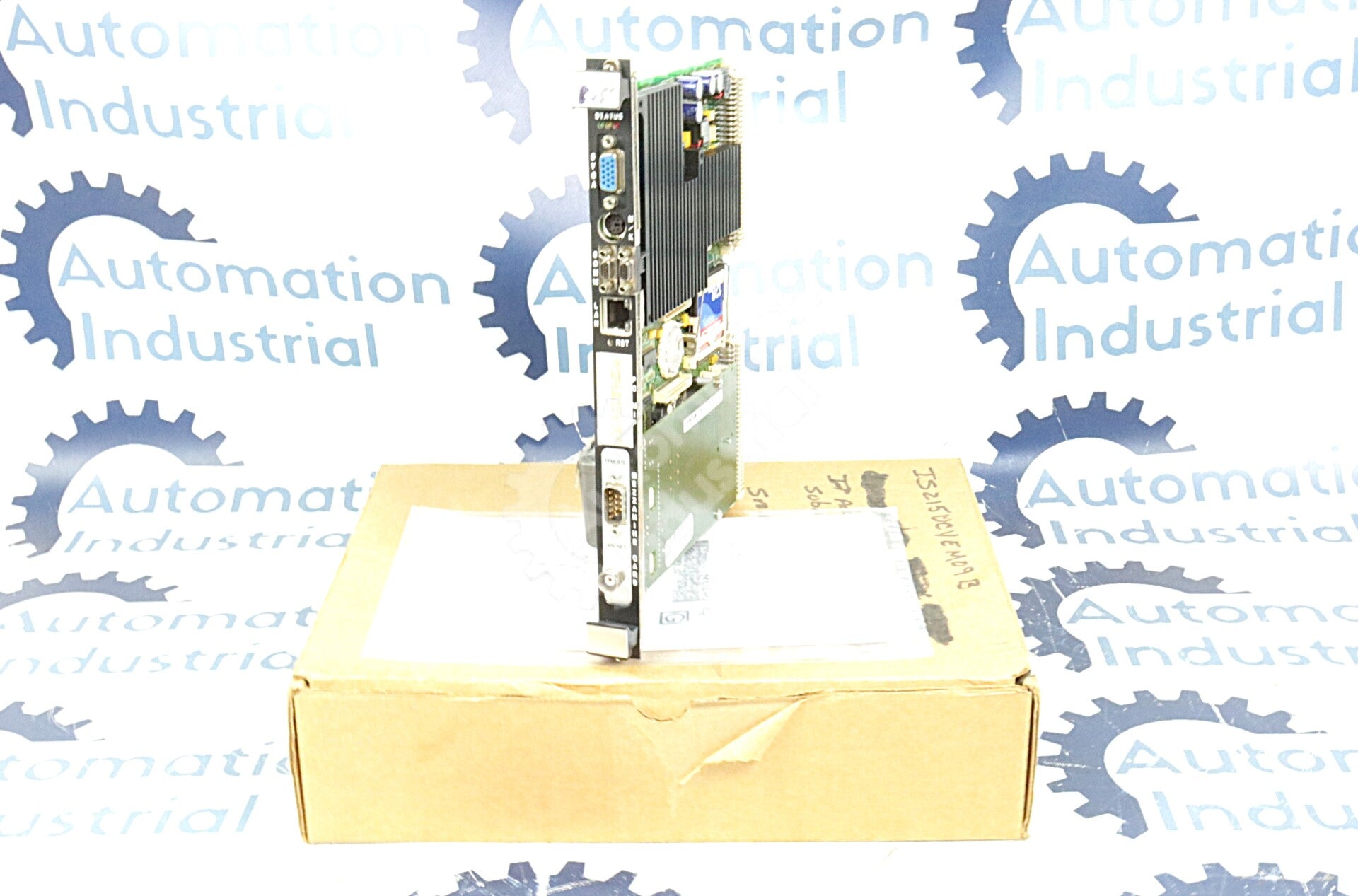

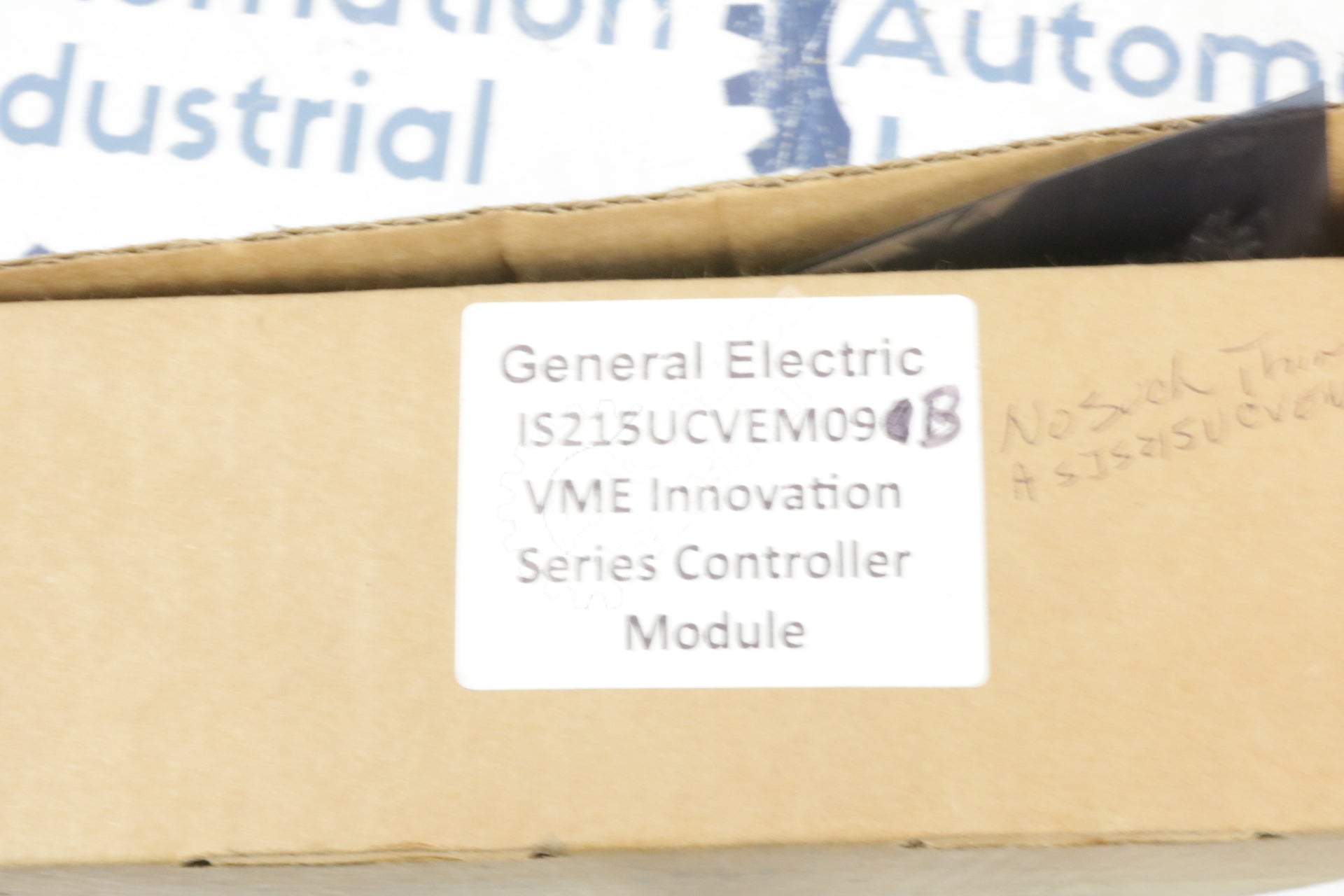

Offered as new-surplus, factory-packaged stock, this IS215UCVEM09 is an M-series UCVE main controller for the GE Speedtronic Mark VI system, ready to hold as a critical spare. Supplied at the M09C revision, it runs the turbine control application under QNX in the VME rack and carries the M-series enhancements over the base UCVEH2.

The M-Series Controller's Role

The UCVE is the standard Mark VI main controller; the M-series UCVEM adds support for additional Ethernet ports and Profibus on top of that base capability, including a toolbox-configured secondary Ethernet port on a separate subnet for EGD and Ethernet Modbus. In service the controller exchanges I/O data across the VME backplane through the VCMI communication board and synchronizes to the VCMI clock. In simplex the data is the plant's process I/O; in TMR, the <R>, <S> and <T> controllers work on voted inputs and hand computed outputs to the output hardware for voting.

Why Hold a Controller Spare

In a TMR panel a single controller fault does not stop the machine — the turbine keeps running on the remaining two cores — but it does put the unit at reduced redundancy until the board is replaced. A qualified, matched spare on the shelf shortens that exposure. Because this is unused factory-packaged stock, it is a sensible way to protect against lead-time risk on a platform that is increasingly hard to source.

Commission It Right: Firmware, VCMI and Voting

A new-surplus controller arrives without your site's application, so plan the software steps into the swap:

• Download the firmware and application from ControlST or the toolbox; the controller validates its configuration against the hardware at power-up, so a mismatch will hold it offline even though the board is sound.
• Configure any secondary Ethernet or Profibus interfaces the M-series board provides, matching the subnet and protocol settings your system expects.
• Confirm communication with the VCMI across the VME backplane before returning the core to service.
• In TMR, verify the replaced core rejoins the vote cleanly with <R>, <S> and <T> in agreement.

Skipping the validation step is the usual reason a perfectly good replacement first appears to fault.

Matching Generation, Variant and Revision

Read the number as IS215 (Mark VI special assembly), UCVE (controller type and generation), M09 (M-series variant) and the trailing "C" (revision). UCVE is one of the UCVx generations (UCVB, UCVD, UCVE, UCVG), and M-series and H-series boards differ in connectivity, so match generation, variant and revision to what you are replacing. The GE Speedtronic Part Number Decoder lays out each field.

Boards That Work With It

The VCMI communication board is the controller's essential partner in the rack. For platform background see Mark V vs Mark VI: DS200 to IS200, and browse related cards in our GE Mark VI IS200 Boards and GE Speedtronic Turbine Control Boards collections.

Before You Order — and What We Need

First confirm the controller is truly the fault (rule out firmware and configuration, the VCMI and backplane, rack power, and a downstream I/O board reporting upstream). Then send the full part number and suffix (IS215UCVEM09 / M09C), the revision, a photo of the label, the turbine model and Mark VI generation, simplex or TMR, the ControlST or firmware version if known, the quantity, and your urgency. The reference manual is GEH-6421.

Request a Quote for this new-surplus IS215UCVEM09 and we respond within 24 hours, ship worldwide DDP, and accept purchase orders.
