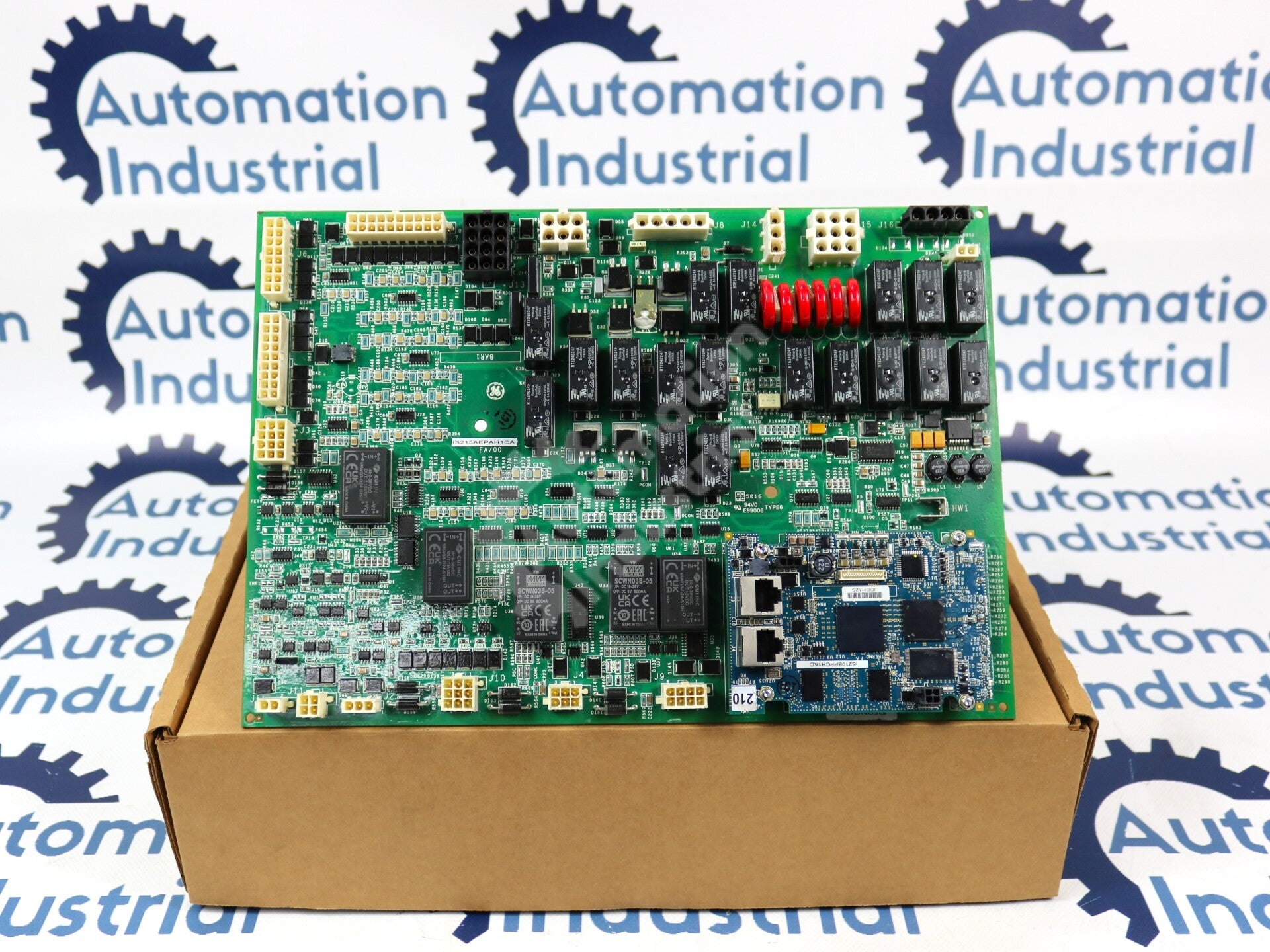

Inside the IS215AEPAH1CA Wind Pitch Axis Control Module

The IS215AEPAH1CA is a GE Speedtronic Mark VIe module listed here for wind-turbine pitch-axis control and supplied with an IS210BPPCH1AC I/O pack processor. It belongs to GE's AEPA family (Alternative Energy Power Assembly), the alternative-energy branch of the Mark VIe distributed-I/O platform. The module carries the field interface for a pitch axis, while the BPPC processor mounted on it runs the pack's code and links it to the control network.

Pitch control sets blade angle to regulate rotor speed and shed load in high wind, so a healthy pitch node matters to the whole machine even though this is a standard, non-safety I/O pack. Because the module and its processor are offered here as a pair, you can restore both the field interface and the compute side of a failed node in one move.

Pitch Faults: Deciding Whether the Module or the Field Side Is at Fault

Pitch alarms are among the most misdiagnosed events on a turbine, because so much of the pitch system lives outside the cabinet. Before replacing this module, walk the field side first:

• Pitch actuator and drive. A sticking pitch motor, drive, or hydraulic actuator throws position and rate faults that look like a board problem.
• Position feedback. Blade encoders or resolvers and their cabling in the rotating hub are frequent failure points; bad feedback reads as a control fault at the module.
• Slip ring and hub wiring. Signals crossing the slip ring degrade over time, so check continuity before condemning electronics.
• Pitch backup power. Many designs hold a battery or capacitor bank for emergency feather; a weak bank raises faults that have nothing to do with the module.
• Processor versus interface. If the node will not communicate at all, suspect the BPPC processor, its power feed, or IONet; if only pitch signals are wrong, suspect this AEPA module or its field terminations.

Confirm the diagnostic alarms in ToolboxST, and on a TMR machine verify which of <R>, <S>, or <T> actually voted out before you order a board.

The Role of the IS210BPPCH1AC Processor in Pitch Control

The IS210BPPCH1AC bundled with this module is the generic compute core; the AEPA module beneath it is the application-specific part. Two Ethernet ports connect the pack to IONet, the Mark VIe I/O network, the second port giving a redundant path back to the controllers. The BPPC is the C-generation I/O pack processor, newer than the BPPB and used on ControlST V04.04 or later; in a TMR node the three redundant packs align with the <R>, <S>, and <T> controllers. It is a standard processor, not a Mark VIeS safety pack, which would instead carry an S-group suffix.

Part Number Breakdown for the IS215AEPAH1CA

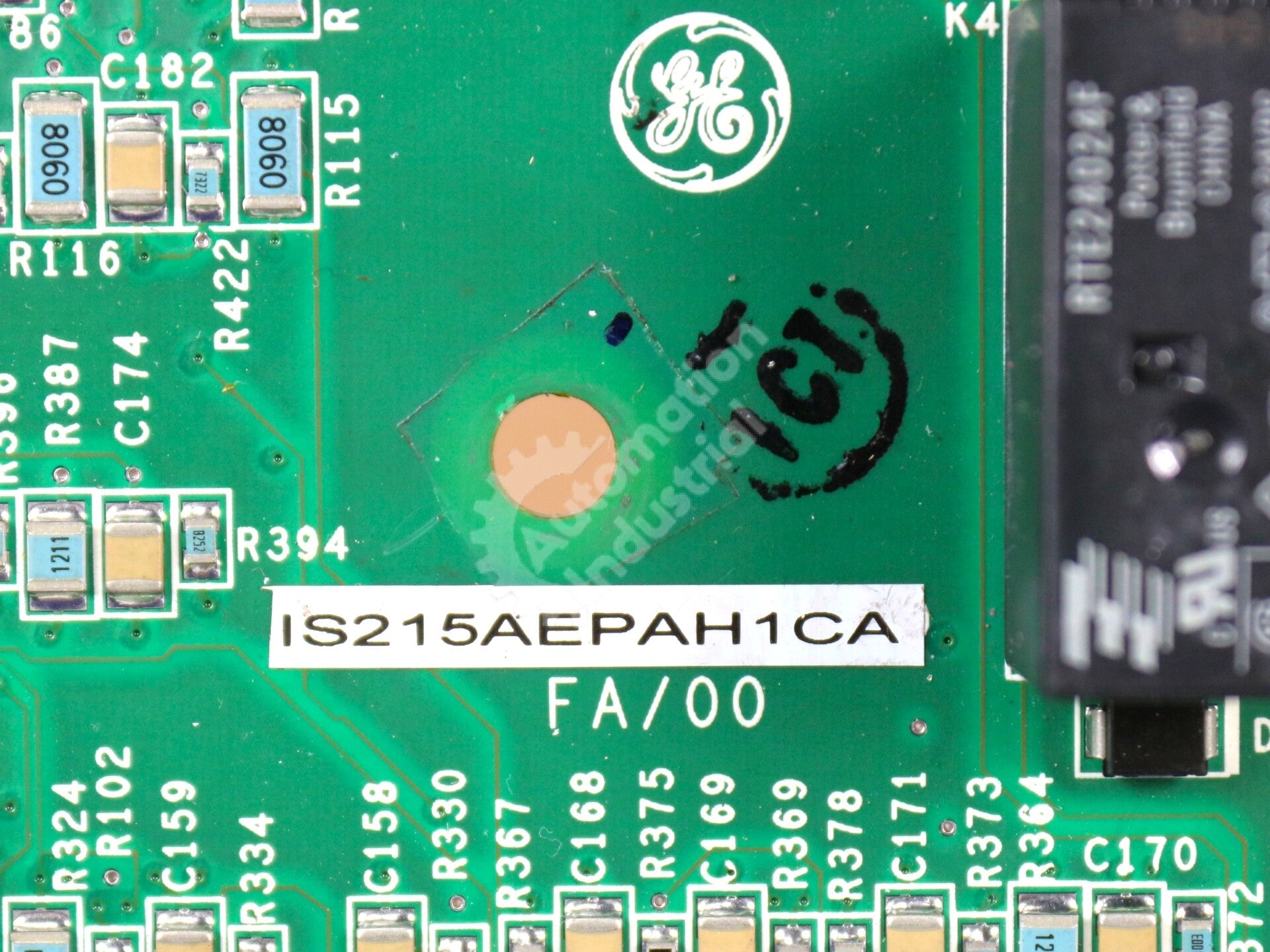

The number resolves into the assembly designator (IS215), the functional acronym (AEPA), a hardware group (H1), and a revision suffix (CA). The companion IS210BPPCH1AC follows the same pattern as a BPPC processor. When you source a replacement, match the acronym and group first and keep the revision as close as your spares allow. Our GE Speedtronic Part Number Decoder breaks down every field so you can read the label with confidence.

Information to Include When You Ask for a Quote

To make sure the module and processor match your node, send:

• The full part numbers for both the IS215AEPAH1CA and the IS210BPPCH1AC, each with its suffix.
• The revision codes on the board labels, plus a photo of the labels where possible.
• Turbine model and whether the platform is Mark VI or Mark VIe.
• Quantity and the urgency of the repair.

Get a Quote on the IS215AEPAH1CA

This module is offered in used condition, cleaned and tested. Tell us what your pitch node needs and we will confirm revisions and availability from stock. We return quotes within 24 hours, ship worldwide DDP, and accept purchase orders from qualified operators and EPCs. Use the Request a Quote button to begin, and browse related stock in GE Mark VI IS200 Boards.
