[shortdesc]
- Frequency: 2.8 GHz, Memory Support: DDR4, Memory Bus: Dual-channel
[/shortdesc]
[properties]
| Product Name |
E-2314 |
| Description |
Dell E2314 Monitor, 23-inch Full HD monitor with LED backlight technology, designed for everyday use. |
| Display Type |
LED-backlit LCD |
| Screen Size |
23 inches |
| Resolution |
1920 x 1080 (Full HD) |
| Aspect Ratio |
16:09 |
| Brightness |
250 cd/m² |
| Contrast Ratio |
1000:1 (typical) |
| Viewing Angle |
160° horizontal / 170° vertical |
| Response Time |
5 ms (gray to gray) |
| Connectivity |
VGA, DVI-D |
| Power Consumption |
Typical: 22W, Standby: 0. |
[/properties]
[specifications]
| Refresh Rate |
60 Hz |
| Pixel Pitch |
0.265 mm |
| Panel Type |
TN (Twisted Nematic) |
| Color Depth |
16.7 million colors |
| Surface Coating |
Anti-glare, 3H hardness |
| Backlight Technology |
LED |
| Certifications |
ENERGY STAR, EPEAT Gold, TCO |
| Environmental Safety |
Arsenic-free glass and mercury-free panel, built to reduce environmental impact. |
| EMC Compliance |
Complies with international EMC standards |
| Stand Adjustability |
Tilt (-5° to 21°) |
| Mount Compatibility |
VESA mount (100 mm x 100 mm) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Power Requirements |
AC 100-240V, 50/60Hz |
| Response Time Enhancements |
Supports rapid response time improvements for smooth visuals. |
| Blue Light Filter |
Integrated blue light reduction feature to minimize eye strain. |
| Anti-Flicker Technology |
Includes flicker-free technology for comfortable viewing. |
[/specifications]

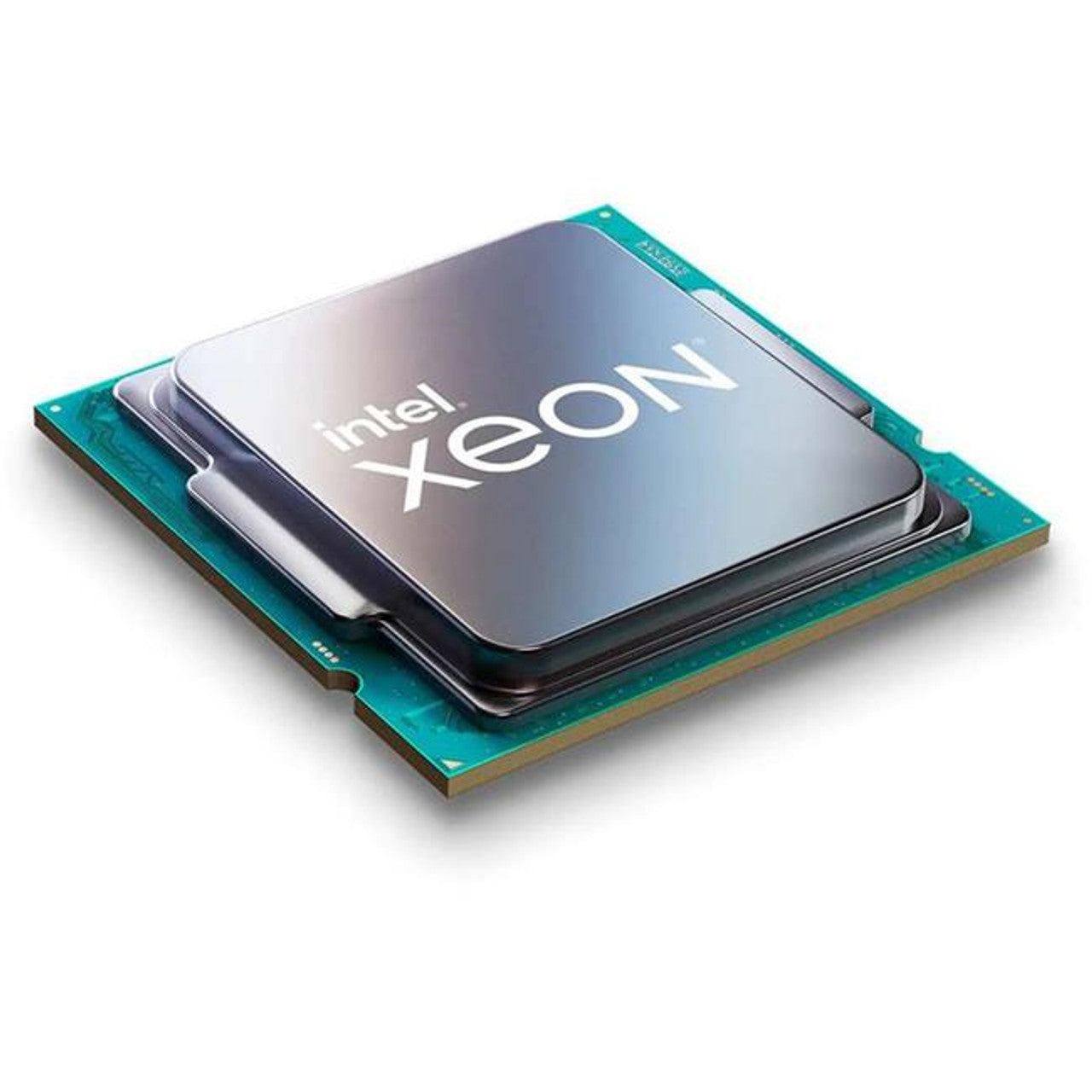

Intel Xeon E-2314 Processor
The Intel Xeon E-2314 is a server/workstation processor with 4 cores, launched in September 2021. It is part of the Xeon E lineup, using the Rocket Lake-E architecture with Socket 1200. Xeon E-2314 has 8 MB of L3 cache and operates at 2.8 GHz by default, but can boost up to 4.5 GHz, depending on the workload. With a TDP of 65 W, the Xeon E-2314 consumes typical power levels for a modern PC.
Physical
- Socket: Intel Socket 1200
- Foundry: Intel
- Process Size: 14 nm
- Die Size: 276 mm²
- Package: FC-LGA1200
- tJMax: 100°C
Processor
- Market: Server/Workstation
- Production Status: Active
- Release Date: Sep 8th, 2021
- Part#: SRKN8
Performance
- Frequency: 2.8 GHz
- Turbo Clock: up to 4.5 GHz
- Base Clock: 100 MHz
- Multiplier: 28.0x
- Multiplier Unlocked: No
- TDP: 65 W
Architecture
- Codename: Rocket Lake-E
- Generation: Xeon E (Rocket Lake-E)
- Memory Support: DDR4
- Rated Speed: 3200 MT/s
- Memory Bus: Dual-channel
- ECC Memory: Yes
- PCI-Express: Gen 4, 20 Lanes (CPU only)
- Chipsets: C252, C256
Cache
- Cache L1: 80 KB (per core)
- Cache L2: 512 KB (per core)
- Cache L3: 8 MB (shared)
