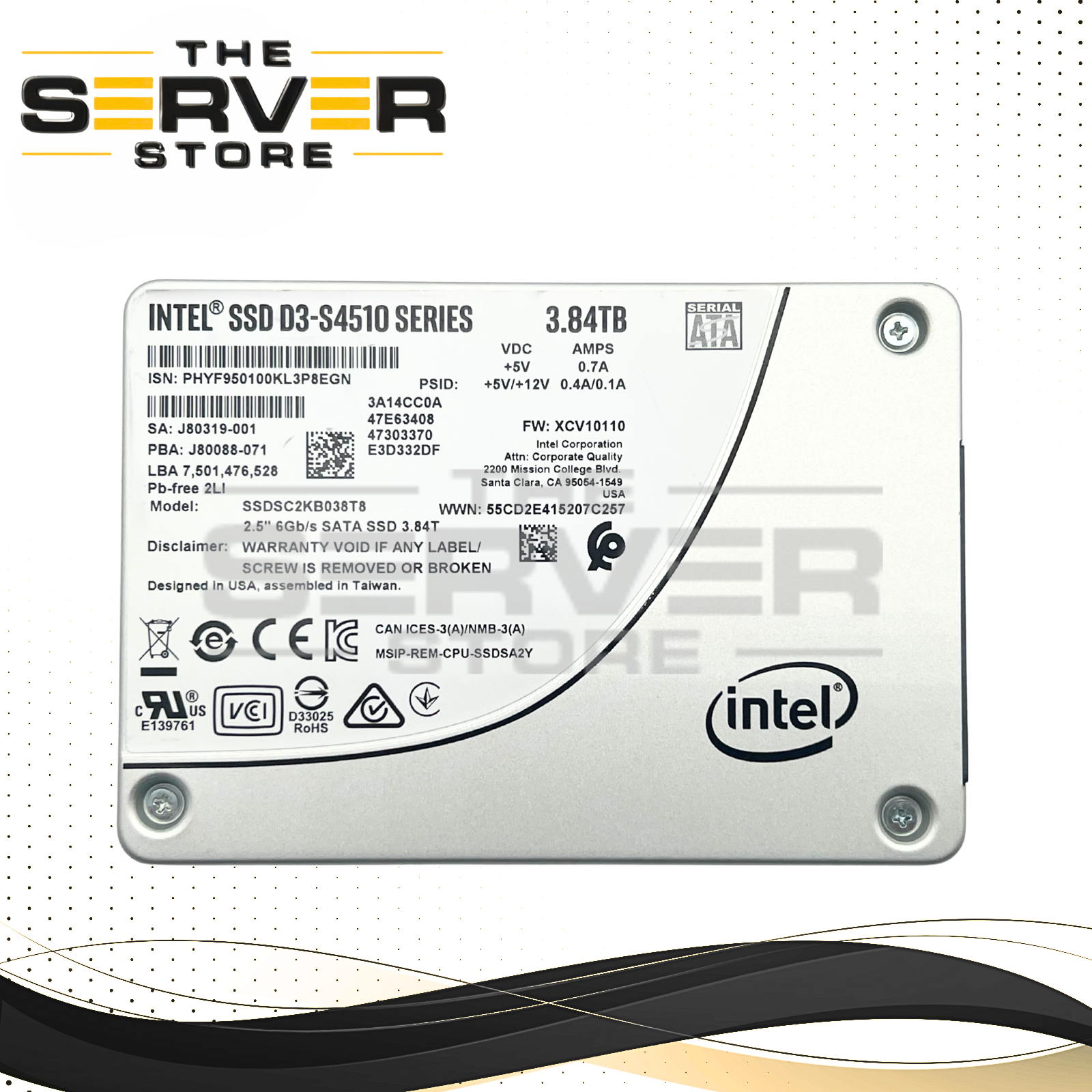

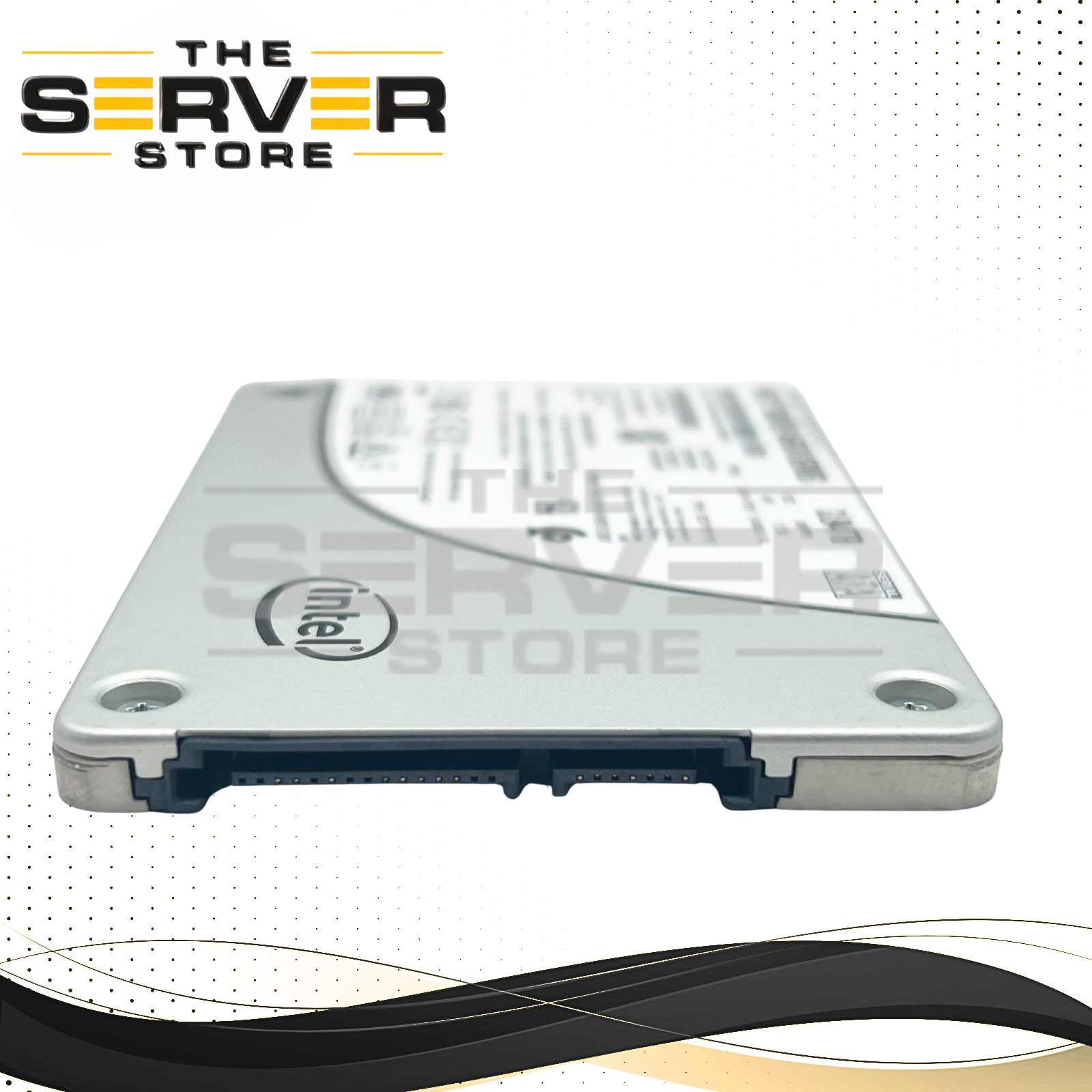

Intel 3.84TB SATA 6G RI SFF 2.5" SSD D3-S4510 Series SSDSC2KB038T8
Other Related Part Number: J80319-001
Core Specifications
-
Capacity: 3.84TB
-
Form Factor: 2.5" SFF (7mm height)
-
Interface: SATA III 6Gb/s
-
NAND Type: 64-Layer 3D TLC NAND
-
Controller: Intel enterprise SATA controller
Performance
-
Sequential Read: Up to 560 MB/s
-
Sequential Write: Up to 510 MB/s
-
Random Read (4KB): Up to 97,000 IOPS
-
Random Write (4KB): Up to 32,000 IOPS
-
Latency (Typical): ~36µs (Read) / ~37µs (Write)
Reliability & Endurance
-
Workload Type: Read Intensive (RI)
-
Endurance: ~13.1 PBW (Petabytes Written)
-
DWPD: ~1.4–1.9 Drive Writes Per Day (5 years)
-
MTBF: 2 Million Hours
-
UBER: <1 per 10¹⁷ bits read
-
Warranty: 5-Year Limited
Features & Security
-
Encryption: AES 256-bit hardware-based encryption
-
Power Loss Protection: Yes (PLP)
-
Data Integrity: End-to-End Data Protection
-
Monitoring: SMART telemetry & thermal monitoring
Power & Environmental
-
Power Consumption: 3.6W Active / 1.1W Idle
-
Operating Temperature: 0°C to 70°C
-
Shock Resistance: 1000G (0.5ms)
-
Vibration: 2.17 GRMS (Operating)
Server Compatibility (All Manufacturers – One Line)
HPE ProLiant DL20, DL120, DL160, DL180, DL325, DL360, DL380, DL385, DL388, DL560, DL580, ML30, ML110, ML150, ML350, BL420c, BL460c, BL465c, BL660c, Synergy 480/660, Apollo 4200; Dell PowerEdge R240, R340, R440, R540, R640, R740, R740xd, R840, R940, R650, R750, T140, T340, T440, T640, MX740c, MX840c, M640, FC640; Lenovo ThinkSystem SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR950, ST250, ST550, SD530, VX3320, VX7820; Cisco UCS C220 M3/M4/M5/M6, C240 M3/M4/M5/M6, B200 M5/M6, X210c M6/M7; Supermicro SYS-1019, SYS-1029, SYS-2029, SYS-5019, SYS-6019, SYS-1029U, SYS-6029U, SYS-2029BT, SYS-6029TR
Important Notes
- Requires a 2.5" SATA-compatible backplane and controller
- Must use the correct manufacturer-specific tray/caddy for proper installation
- OEM firmware variants may display as non-certified in some server management tools but remain fully functional
This Intel D3-S4510 3.84TB SSD is a proven enterprise solution for data centers, virtualization, and read-heavy workloads, offering strong endurance, consistent performance, and enterprise-grade reliability.
