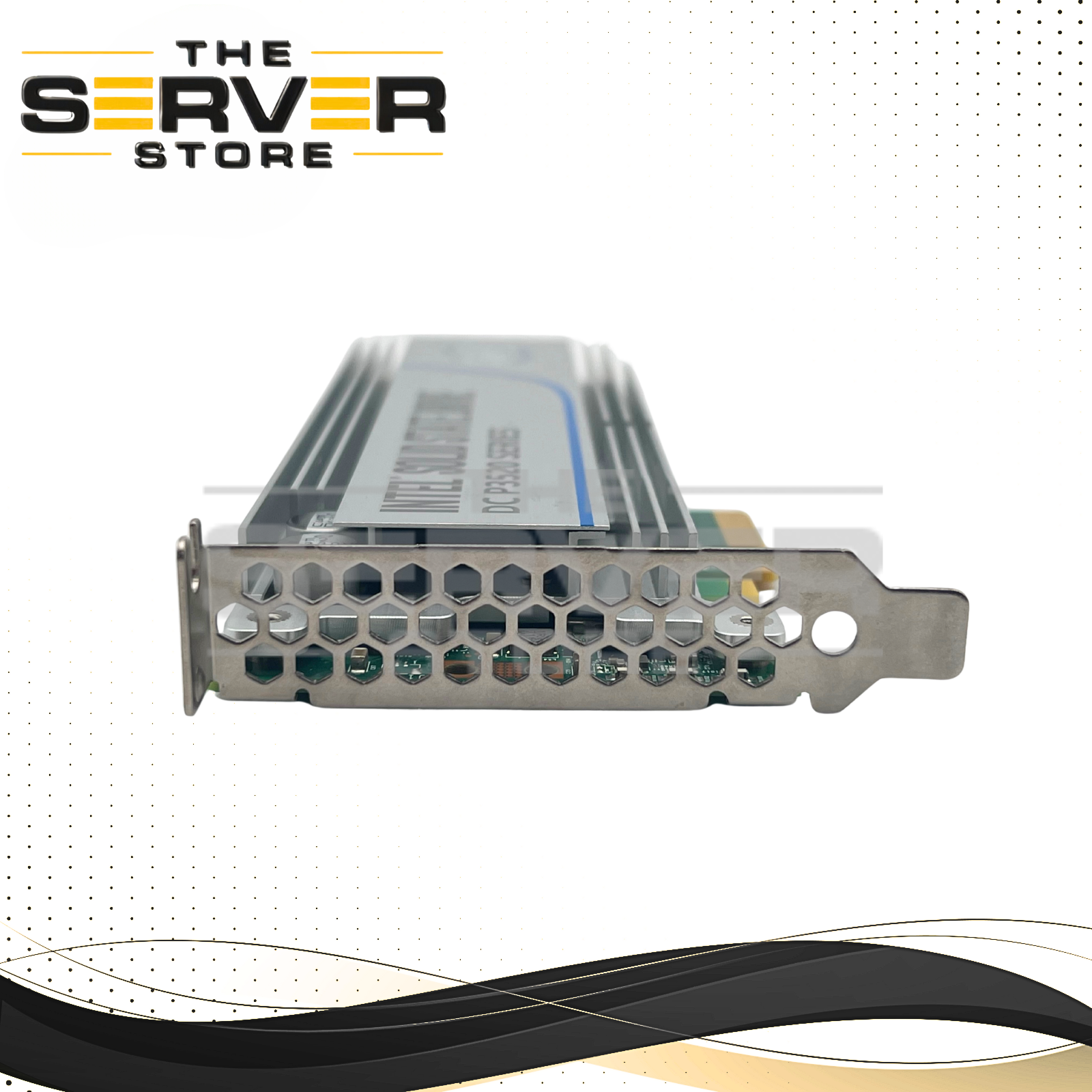

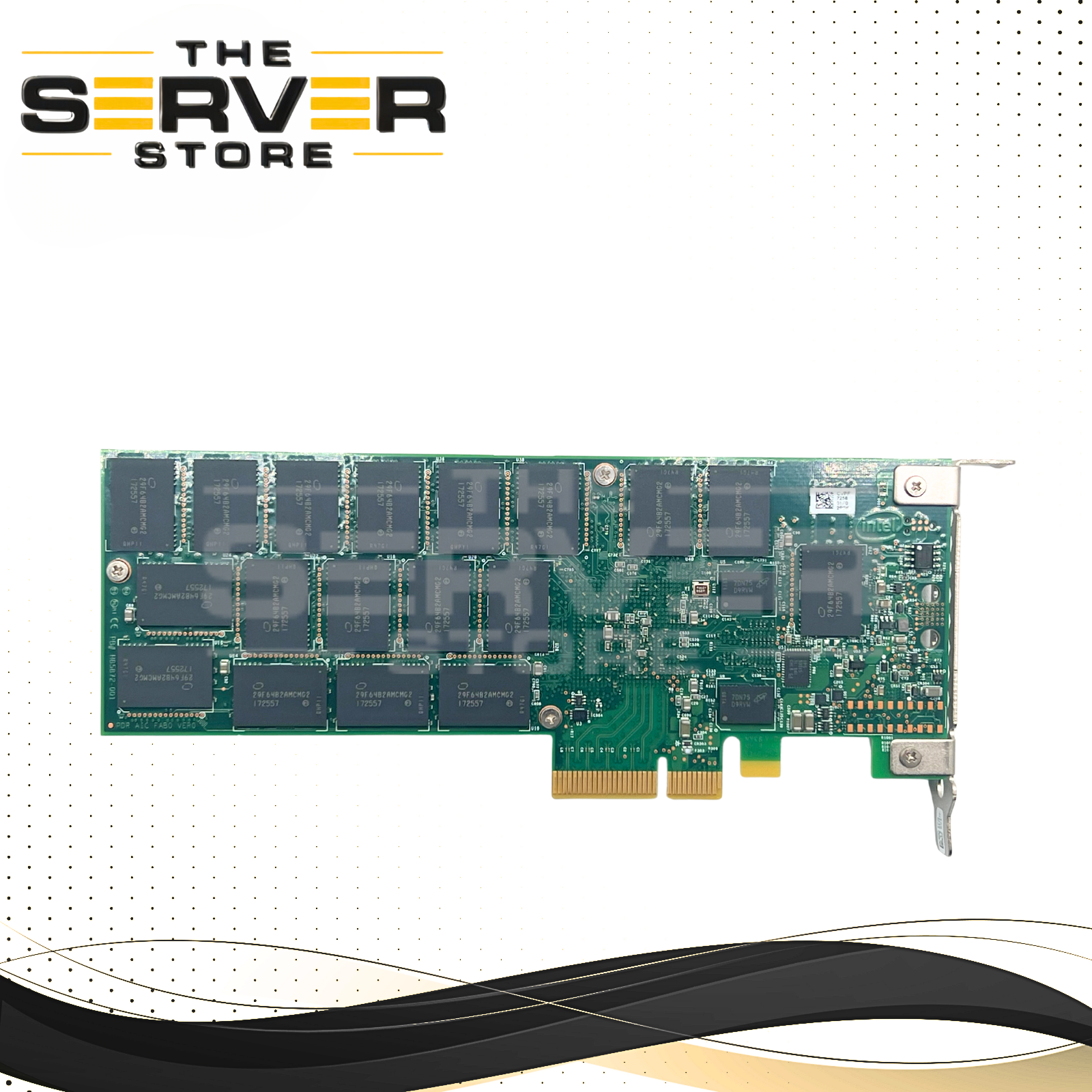

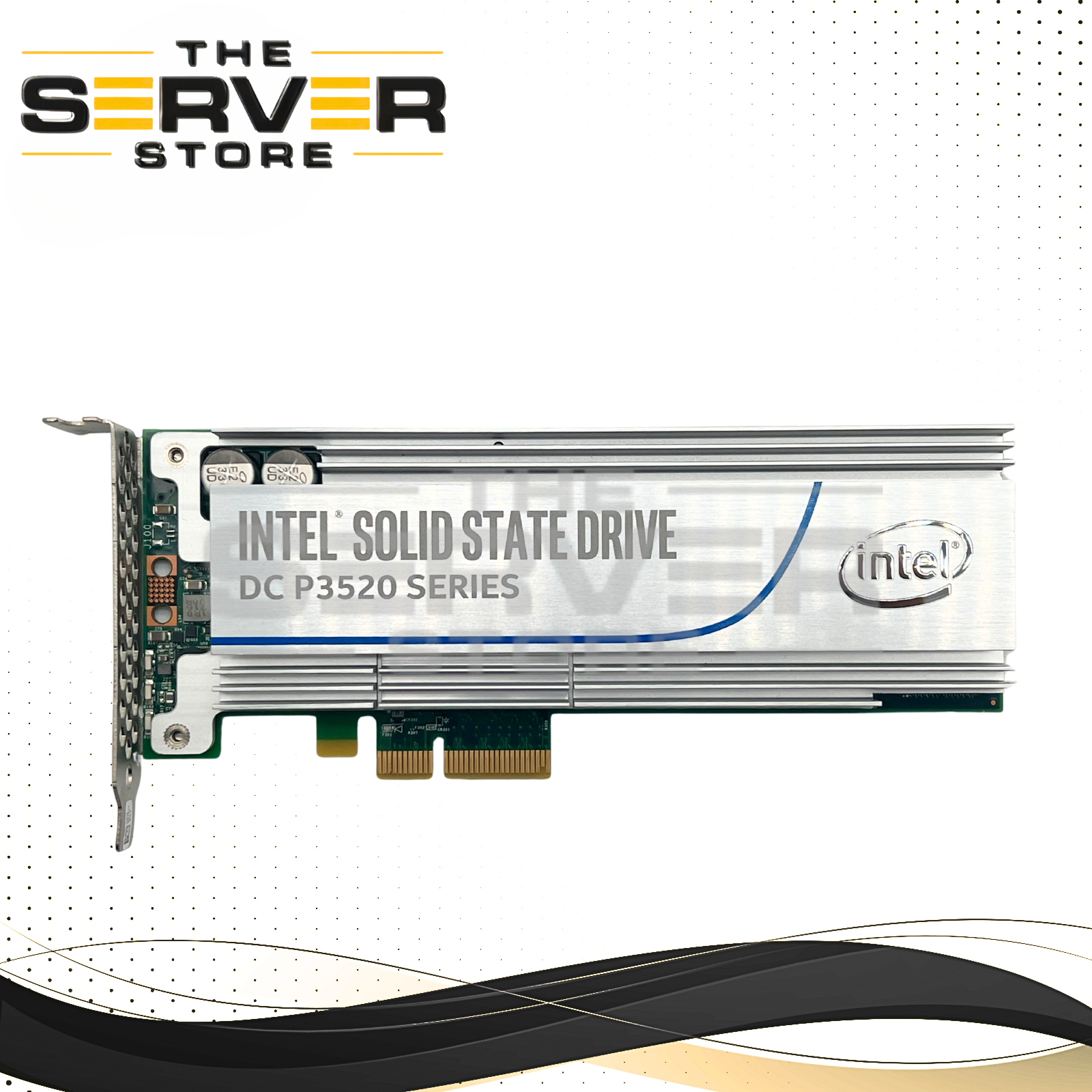

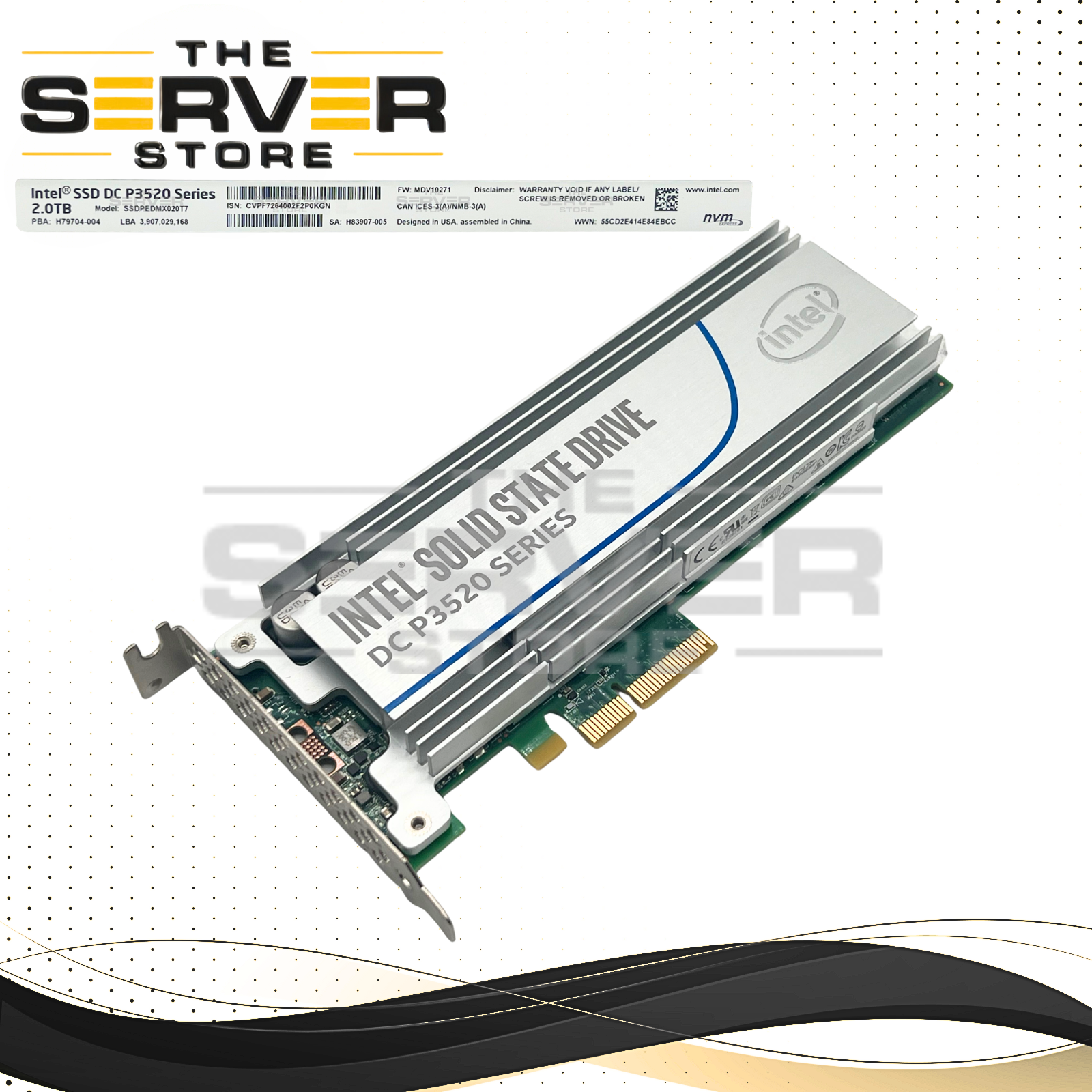

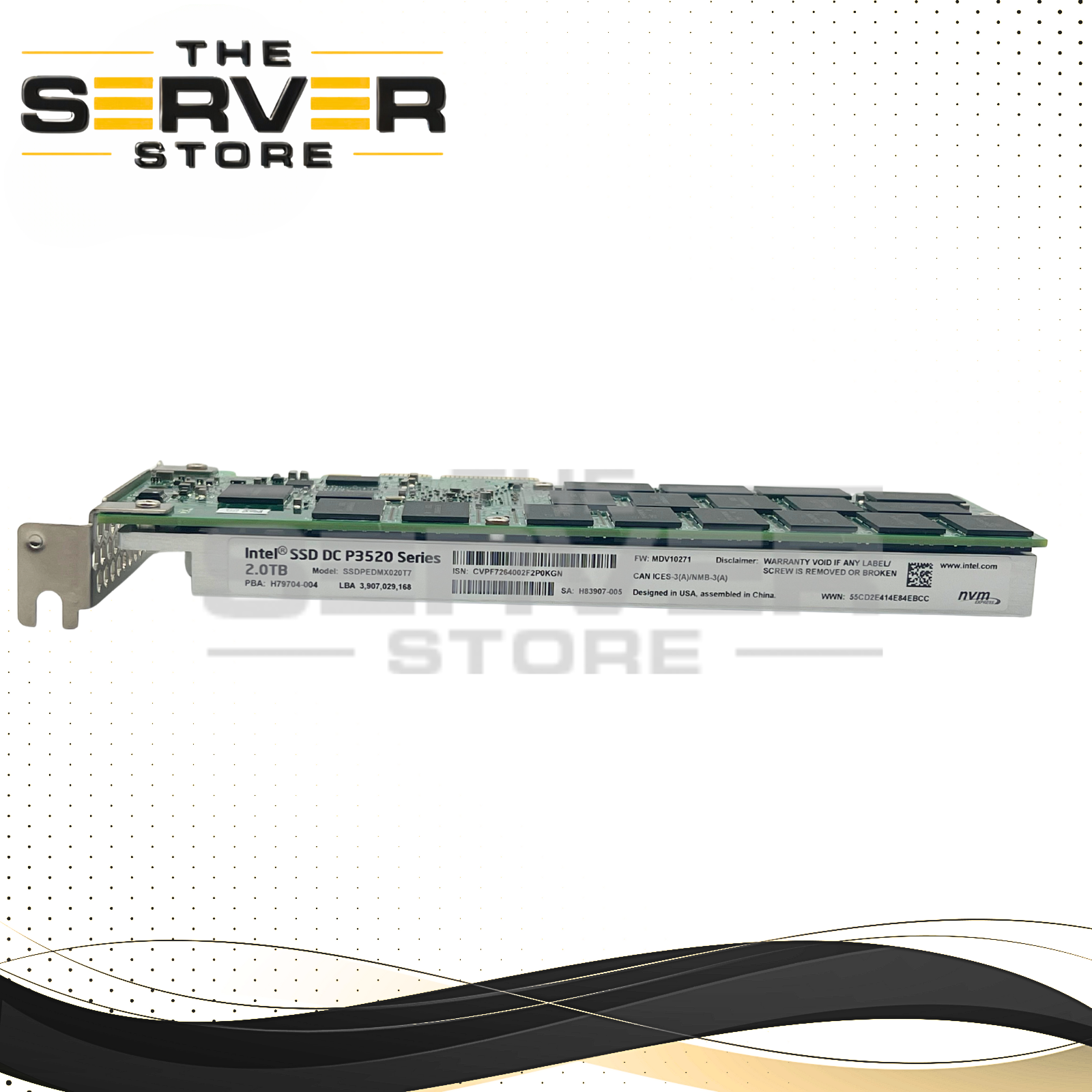

Intel 2TB NVMe HHHL PCIe Gen3 x4 Add-in Card SSD DC P3520 Series SSDPEDMX020T7
The Intel DC P3520 Series (SSDPEDMX020T7) is a 2TB enterprise-grade NVMe solid-state drive designed in a Half-Height, Half-Length (HHHL) PCIe add-in card form factor. Built with Intel’s reliable 3D MLC NAND, it delivers consistent performance, low latency, and strong endurance for data center and read-intensive workloads.
Related Part Numbers
SSDPEDMX020T7, SSDPEDMX020T701, H79704-004
Core Specifications
-
Capacity: 2TB
-
Series: Intel DC P3520
-
Form Factor: HHHL (Half-Height, Half-Length) Add-in Card
-
Interface: PCIe Gen3 x4 (NVMe)
-
NAND Type: 3D MLC NAND
Performance
-
Sequential Read: Up to 1,700 MB/s
-
Sequential Write: Up to 1,350 MB/s
-
Random Read (4KB): Up to 375,000 IOPS
-
Random Write (4KB): Up to 26,000 IOPS
-
Latency: ~20µs Read / ~30µs Write
Reliability & Endurance
-
Endurance (TBW): ~2,490 TBW
-
MTBF: 2,000,000 hours
-
UBER: Enterprise-grade data integrity
-
Workload Type: Read Intensive / Mixed enterprise workloads
Advanced Features
-
Hardware Encryption: 256-bit AES
-
Power Loss Protection: Safeguards in-flight data during unexpected outages
-
End-to-End Data Protection: Ensures data integrity across the entire data path
-
Thermal Monitoring: Built-in temperature tracking and logging
Power & Environmental
-
Power Consumption:
- Idle: ~4W
- Active Read: ~10W
- Active Write: ~12W
-
Operating Temperature: 0°C to 35°C
Compatibility
-
Physical Requirement: PCIe x4, x8, or x16 slot (HHHL compatible bracket)
-
Interface: PCIe Gen3 (backward/forward compatible with Gen4/Gen5 slots at Gen3 speeds)
-
Protocol: NVMe
Enterprise Server Compatibility
-
Dell PowerEdge (12th Gen and newer): R620, R720, R630, R730, R640, R740
-
HPE ProLiant (Gen8 / Gen9 / Gen10): DL360, DL380
-
Lenovo ThinkSystem: SR630, SR650
-
Intel Server Boards: Validated on platforms like S2600 series
Desktop & Workstation Compatibility
- Works in most modern systems with NVMe support:
-
Intel Chipsets: Z170 → Z790 / newer
-
AMD Platforms: X370 → X670E / newer
-
Workstations: Dell Precision, HP Z-series
Operating System Support
-
Windows: Windows 10/11, Windows Server (2012 R2+)
-
Linux: RHEL, Ubuntu, SLES, CentOS
-
Virtualization: VMware ESXi (5.5+), XenServer
Important Notes
- Requires UEFI 2.3.1+ for boot support
- In some older servers (e.g., Dell R720), booting may require specific NVMe configurations
- Occupies a PCIe slot instead of a front drive bay
Summary
The Intel DC P3520 2TB HHHL NVMe SSD (SSDPEDMX020T7) is a dependable enterprise storage solution offering solid PCIe Gen3 performance, strong endurance, and broad compatibility. Its add-in card design makes it ideal for servers and workstations needing high-speed NVMe storage without relying on traditional drive bays.
