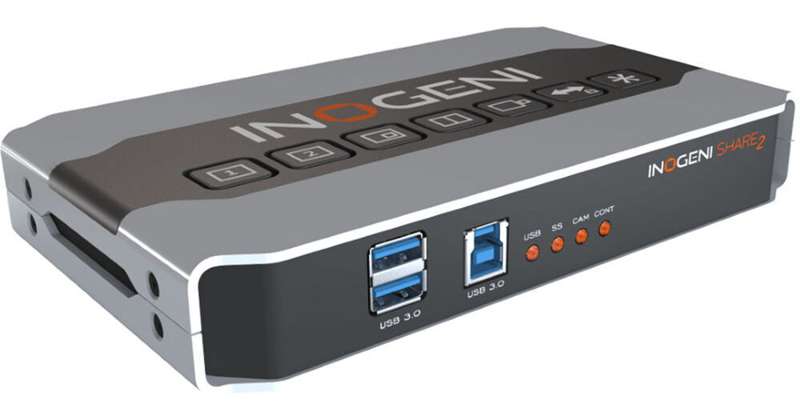

SHARE2: Mix 2x HDMI/DVI Cameras to USB 3.0

The INOGENI SHARE2 is a powerful and user-friendly camera mixer that combines two HDMI or DVI video sources into a single USB 3.0 output. With built-in Picture-in-Picture (PiP) capabilities and flexible control options, it’s ideal for interactive presentations, HyFlex classrooms, webinars, and collaborative meetings.

Key Features

• Mixes two HDMI/DVI camera feeds into a single USB 3.0 video stream

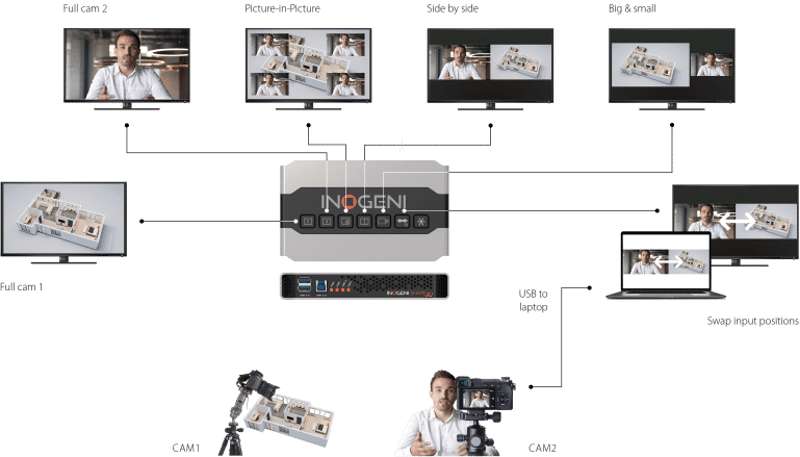

• Supports up to 14 customizable video layouts including Picture-in-Picture
• Switch video sources and layouts without interrupting the live stream
• Perfect for remote education, live streaming, and hybrid meetings
• Compatible with Q-SYS Core processors
• Output options:
  • Uncompressed video via USB 3.0
  • MJPEG video via USB 2.0
• Controllable via LAN and RS-232
• No drivers required—plug-and-play simplicity
• Designed and manufactured in Canada
• TAA-compliant

Compatibility

• Fully compatible with Logitech UC cameras and CODECs
• Logitech-tested cameras: Rally, Rally Bar series, MeetUp, MeetUp 2, Scribe, and consumer models
• Logitech UC CODECs: Rally Bar (Appliance Mode), Roommate for MTR and Zoom Rooms
• Compatible with Barco ClickShare Conference (CX-20, CX-30, CX-50)

What’s in the Box

• 1x USB 3.0 cable (Type-A to Type-B, 1 m / 3.3 ft)
• 1x HDMI to DVI adapter
• 1x VGA to DVI adapter
• 1x Serial RS-232 cable (DB9 female to RJ45 plug)
• 1x Power supply (100–240 VAC, 50/60Hz to 12V/1.2A DC)
• International power adapters (AUS, EUR, UK, US)

How It Works

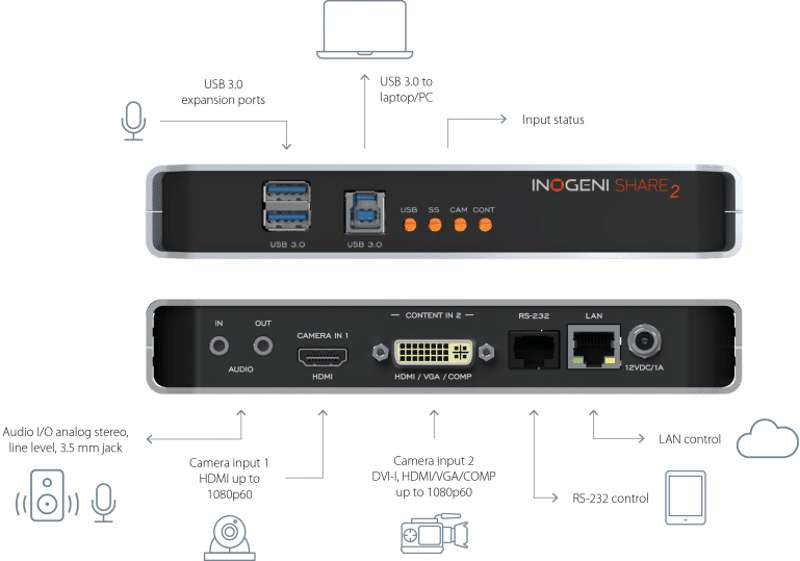

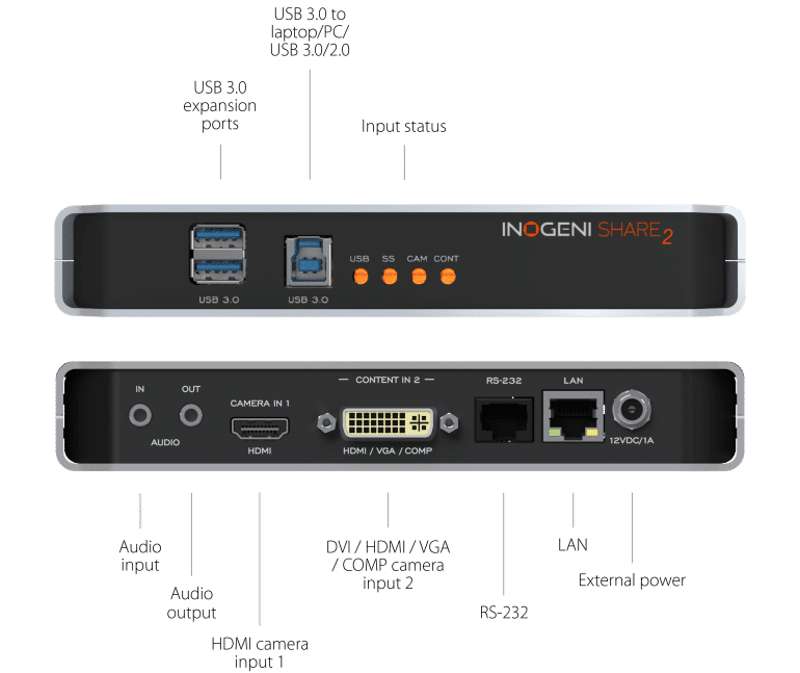

The SHARE2 mixer features dual HDMI/DVI inputs and a single USB 3.0 output. It can be controlled via software on the host computer using LAN or RS-232 interfaces, or manually using the built-in keypad on the device. This flexibility makes it ideal for both automated and hands-on AV environments.
