Description

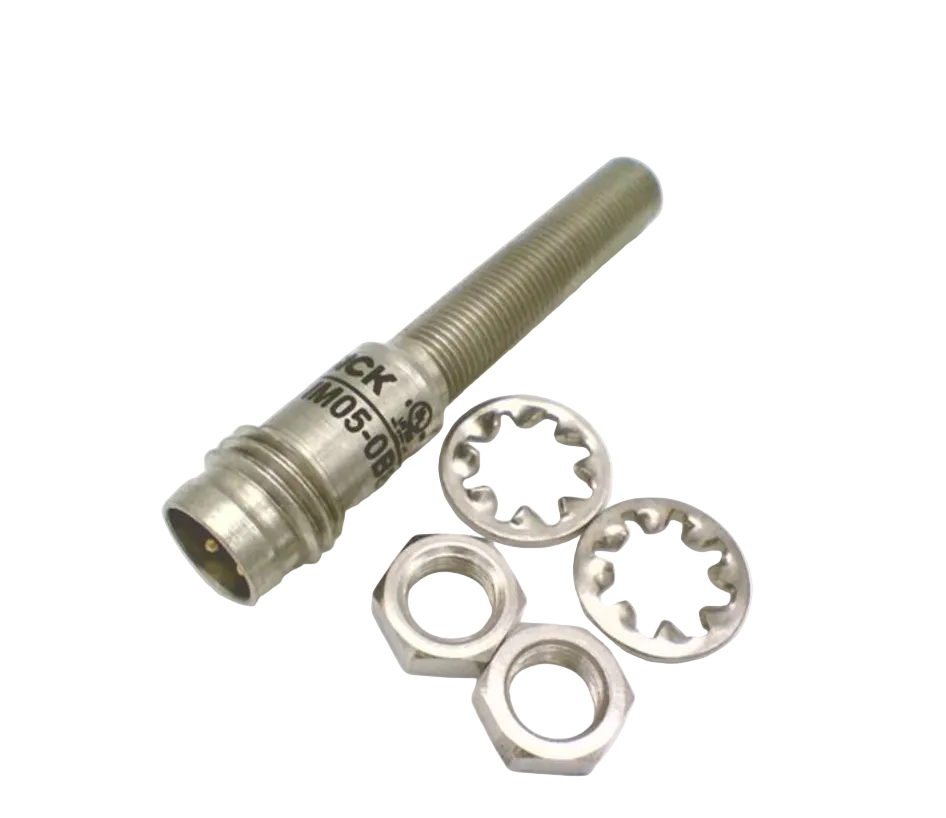

The SICK IM05-0B8NS-ZT1 is a compact industrial inductive proximity sensor designed for detecting metallic objects at close distances with fast switching performance. This sensor delivers reliable, high-speed detection in automation equipment and precision manufacturing environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Part Number |
IM05-0B8NS-ZT1 |
| Category |
Sensors & Switches |
| Subcategory |
Inductive Proximity Sensors |
| Sensor Type |
Inductive Proximity |
| Output Configuration |
NPN, Normally-Open |
| Sensing Range (Sn) |
0.8 mm |
| Supply Voltage |
10–30 V DC |
| Current Rating |
Max 200 mA |
| Connection |
M8, 3-pin connector |
| Enclosure Rating |
IP67 |
| Operating Temperature |
–25 °C to +70 °C |
| Housing Type |
M5 cylindrical stainless steel |
| Switching Frequency |
Up to ~5 kHz |
| Number of Pins |
3 |
| Weight |
~13.9 g |
Information About IM05-0B8NS-ZT1
The IM05-0B8NS-ZT1 is part of SICK’s IMM series of inductive proximity sensors, engineered for space-constrained applications requiring precise object detection. It features an M5 cylindrical housing with a 0.8 mm sensing range and is optimized for flush mounting in metal environments. Compatible with DC 3-wire systems, it provides an NPN normally-open switching output suitable for standard industrial control interfaces. Built to withstand harsh conditions, the sensor supports IP67 protection and operates over a broad voltage and temperature range.
Key Features:
- Brand & Model: SICK IM05-0B8NS-ZT1 — industrial inductive proximity sensor.
- Sensing Principle: Inductive detection — reliably senses metallic targets without contact.
- Sensing Range: 0.8 mm — precise detection of close-range targets.
- Output Type: NPN, Normally-Open — standard switching logic for control systems.
- Electrical Supply: 10–30 V DC — compatible with common DC automation power rails.
- Connection Format: M8, 3-pin connector — secure industrial connection.
- Housing Format: M5 cylindrical stainless steel — compact and durable construction.
- Environmental Rating: IP67 — dust-tight and moisture resistant for factory floors.
The IM05-0B8NS-ZT1 delivers the reliability and precision required for close-range metal detection in automated assembly, positioning, and control applications.
