Description

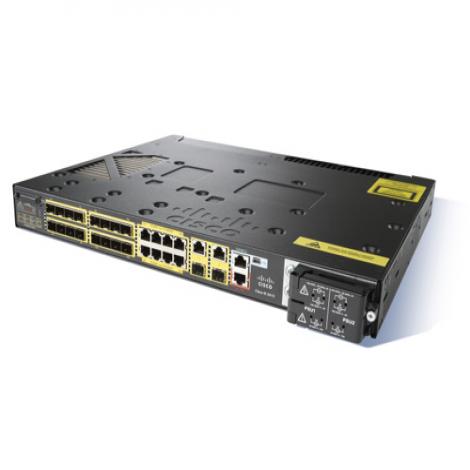

The Cisco IE-3010-16S-8PC is a rugged, rack-mountable managed switch purpose-built for industrial applications, combining high port density with flexible uplink options and robust Layer 2/Layer 3 capabilities. It supports advanced security, scalability, and performance in harsh operational environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
IE-3010-16S-8PC |
| Subcatecory |
Industrial Ethernet Switches
|
| Layer Support |
Layer 2 (LAN Base) / Layer 3 (IP Services) |
| Total Ports |
26 |
| Port Breakdown |
16 x Fast Ethernet SFP, 8 x 10/100 PoE, 2 x Dual-Purpose GbE |
|
Switching Fabric
|
8 Gbps |
| Forwarding Rate |
6.5 Mpps |
| VLAN Support |
Up to 255 (L2), 1000 (L3) |
| MAC Address Table |
2,000 (L2), 3,000 (L3) |
| IGMP Groups |
256 (L2), 1000 (L3) |
| Jumbo Frame Support |
Up to 9018 bytes (GigE), 1998 bytes (Fast Ethernet) |
| DRAM |
256 MB DDR2 |
| Flash Memory |
1 GB SD Flash (128 MB enabled) |
| Dimensions (W x D x H) |
1.75 x 17.5 x 14.0 in (4.45 x 44.5 x 35.6 cm) |
| Weight |
10 lb (4.5 kg, without power supply) |
Information About IE-3010-16S-8PC
The IE-3010-16S-8PC is part of the Cisco Industrial Ethernet 3010 Series and is designed for demanding network deployments in industrial settings. It offers a total of 26 ports, including 16 Fast Ethernet SFP ports, 8 10/100BASE-TX PoE ports, and 2 dual-purpose Gigabit uplink ports (each supporting either copper or SFP-based fiber). Equipped with a wire-speed 8 Gbps switching fabric and a forwarding rate of 6.5 Mpps, this switch delivers reliable and efficient data transmission.
Key Features:
- High Port Density and Flexibility: features 16 Fast Ethernet SFP ports, 8 PoE-enabled 10/100BASE-TX ports, and 2 dual-purpose uplinks for scalable fiber or copper connectivity.
- Industrial Performance: includes an 8 Gbps switching fabric and 6.5 Mpps forwarding rate for wire-speed Layer 2 or Layer 3 traffic handling.
- Layer 2 and Layer 3 Support: supports 255 VLANs and 2,000 MAC addresses in Layer 2 mode and up to 1,000 VLANs and 3,000 MAC addresses in Layer 3 mode with IP Services.
- Jumbo Frame Capability: supports frame sizes up to 9018 bytes on Gigabit ports and 1998 bytes on Fast Ethernet ports for bandwidth-intensive applications.
- Robust Memory Architecture: includes 256 MB DDR2 SDRAM and a 1 GB SD Flash memory module (128 MB enabled) for enhanced configuration and storage capacity.
- Industrial Reliability: designed for harsh environments with ruggedized construction, redundant power supply options, and fanless operation for increased durability.
The IE-3010-16S-8PC combines versatile port configurations, industrial-grade resilience, and advanced switching features, making it ideal for large-scale industrial automation networks.
