- Total incoming throughput 100Mbps
- Up to 240ips 8MP real-time recording
- Up to 240ips live display
- Easy to install, set-up, and play with DirectIP cameras
- Built-in 8 channel PoE Switch
- Supports one click network configuration through FEN service
| Video |
| Video Inputs |
8 IP Channels |
| Max. Incoming Throughput |
100Mbps |
| Supported Camera |
DirectIP |
| Video Outputs |
1 HDMI, 1 VGA |
| Display Resolution |
1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed |
Up to 240ips |
| Digital Zoom |
x2 ~ x12 |
| NVR Side Dewarping |
- |
| Recording |
| Max. Throughput |
40Mbps, 240ips@8MP |
| Recording Resolution |
Up to 8MP (Depending on IP Camera) |
| Video Compression |
H.265, H.264 |
| Recording Mode |
Time-lapse, Event, Pre-event, Panic |
| Trigger Event |
Motion, Trip-zone, Tampering, Video Loss, System, Etc. |
| Playback |
| Performance |
4ch Full HD Synchronous Playback |
| Search Mode |
Time-lapse, Event Log |
| Digital Zoom |
x2 ~ x12 |
| Storage |
| HDD |
SATA x 1 |
| Total Capacity |
The maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
|
| Network |
| Client Connection |
Fast Ethernet (Client) x1 |
| Video In Connection |
Fast Ethernet (IP Camera) x8 |
| Transmission Speed |
20Mbps |
| PSE Power |
PoE (IEEE 802.3at Class 4) Supported 8 Ports, 50W |
| Event Notification |
Email (MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio |
- |
| Interface |
| Audio In / Out |
- |
| Alarm In / Out |
- |
| Alarm Reset In |
- |
| Serial Interface |
- |
| USB |
USB 2.0 x 2 |
| User Interface |
Mouse |
| General |
| Operating System |
Embedded Linux |
| Environmental |
| Operating Temperature |
0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity |
0% ~ 90% |
| Electrical |
| Power Consumption |
54-56V=, 1.28-1.24A, 69W MAX |
| Approval |
KC, CE, FCC |
| Mechanical |
| Unit Dimensions (W x H x D) |
205mm x 44.5mm x 216.4mm (8.07" x 1.75" x 8.52") |
| Unit Weight |
1.2kg (2.65 lb) (with 1 HDD) |

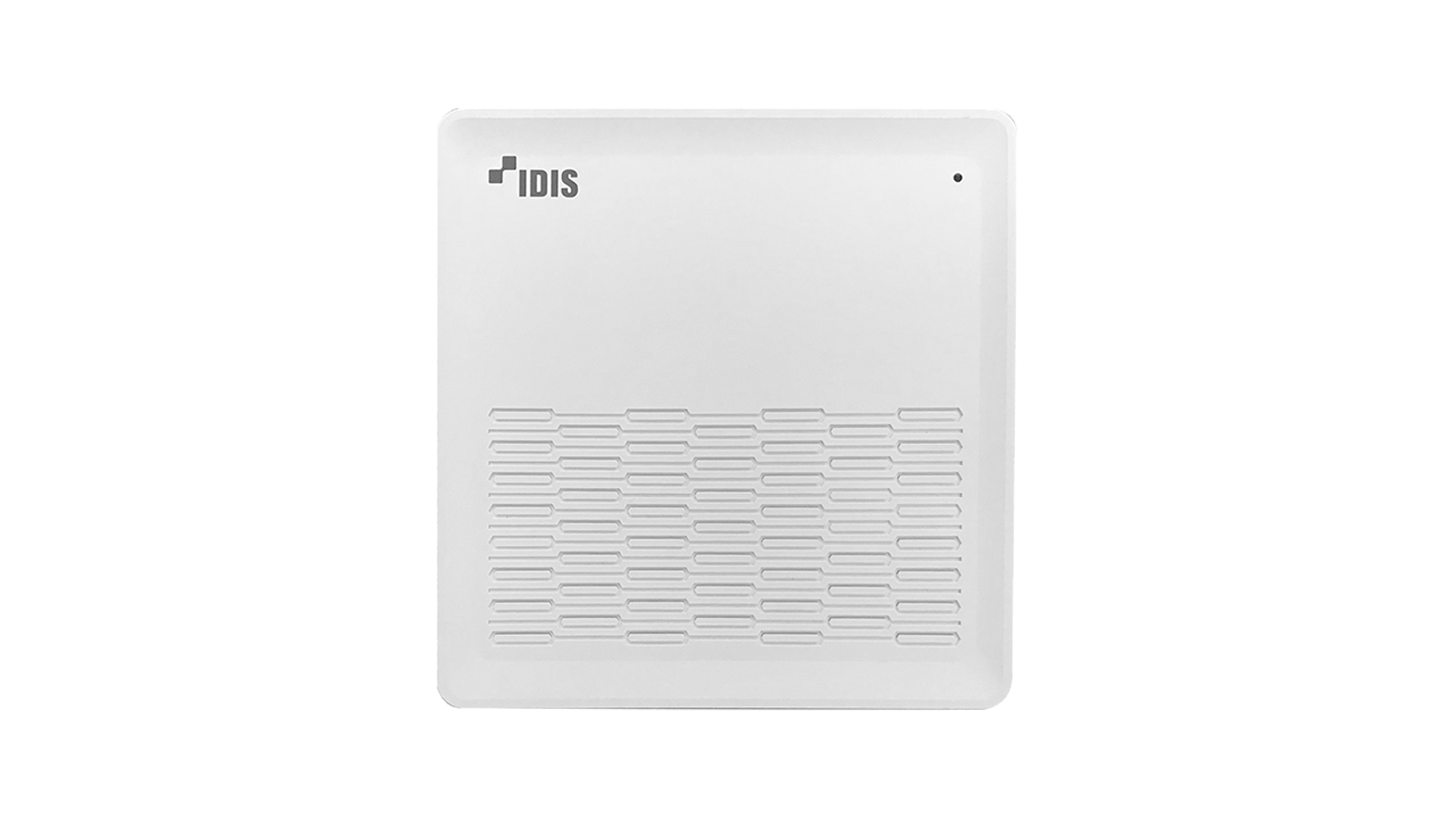

IDIS, 8-Ch, DirectIP NVR, H.265, Built-in 8 Port PoE (IEEE 802.3at Class 4), Total POE 70W, Recording 40Mbps, Total 100Mbps, 240ips@8MP, 1 SATA, USB 2.0 x 2, HDMI & VGA out, NVR: 48V , 1A, Max. 48W, Hard Drive: 4TB
