- Full HD (1080p) resolution
- Fixed-focal lens (f=2.8mm)
- IR LED (20 m / 65.6 ft (2 ea))
- IK10 / IP66 supports
- PoE (IEEE 802.3af Class 2)
- Day and night (ICR)
- True wide dynamic range (WDR)
- 3-axis mechanical design for installation
- Easy installation with DirectIP NVR
- Supports ONVIF
| Video |
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
1920 x 1080 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
Fixed-focal |
| Focal Length |
2.8mm |
| Aperture |
F2.0 |
| Iris Control |
Fixed Iris |
| Angular Field of View |
111.6º(H), 61.5º(V), 127.3º(D) |
| Min. Illumination |
COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night |
Yes (ICR) |
| IR Distance (LEDs) |
20 m / 65.6 ft (2 ea) |
| Image Setting |
Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation |
BLC |
| Mirroring / Pivot |
Horizontal / Vertical / Pivot |
| Image Stabilizer |
- |
| De-fog |
Yes |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out |
- |
| Network |

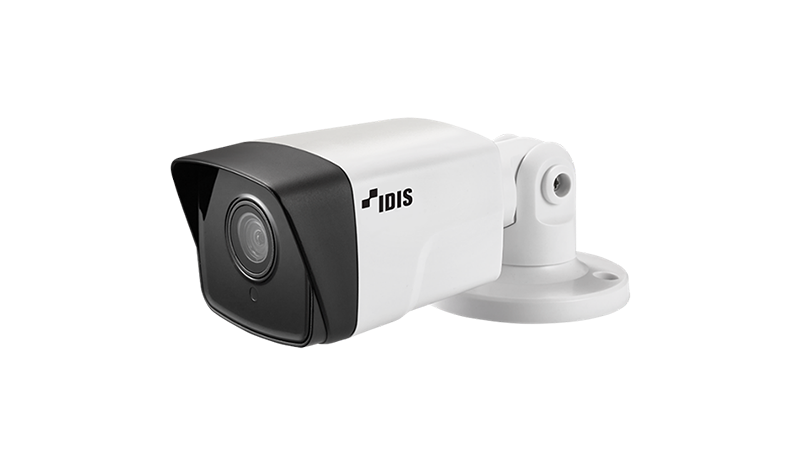

IDIS, 2M Bullet Camera, Vandal IK 10, IP67, H.265 @30ips, 1/2.8" CMOS, 2.8mm, DirectIP 2.0, ONVIF Profile S/T, PoE IEEE 802.3af (Class 2), 5.4W, IR (2ea) 20m / 65.6 ft
