- Easy installation with DirectIP NVR
- 4K UHD (3840 x 2160) resolution
- AF optical zoom lens (f=6.91 ~ 214.64mm)
- Built-in 300m Long range IR Illuminator
| Video |
| Image Sensor |
1/1.8" CMOS |
| Max. Resolution |
3840 x 2160 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
AF Zoom Lens |
| Focal Length |
6.91 ~ 214.64mm |
| Aperture |
F1.36 ~ F4.6 [TBD] |
| Iris Control |
P-Iris |
| Angular Field of View |
Wide : 61.8°(H), 36.3°(V), 70.3°(D)
Tele : 2.3°(H), 1.3°(V), 2.6°(D |
| Min. Illumination |
Color : 0.13 lux @ F1.36
B/W : 0 lux (IR LED On) |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night |
Yes (ICR) |
| IR Distance (LEDs) |
300 m/984.3ft (2ea) |
| Image Setting |
Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation |
- |
| Mirroring / Pivot |
Horizontal / Vertical |
| Image Stabilizer |
Yes (EIS) |
| De-fog |
Yes |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out |
1 Terminal Block |

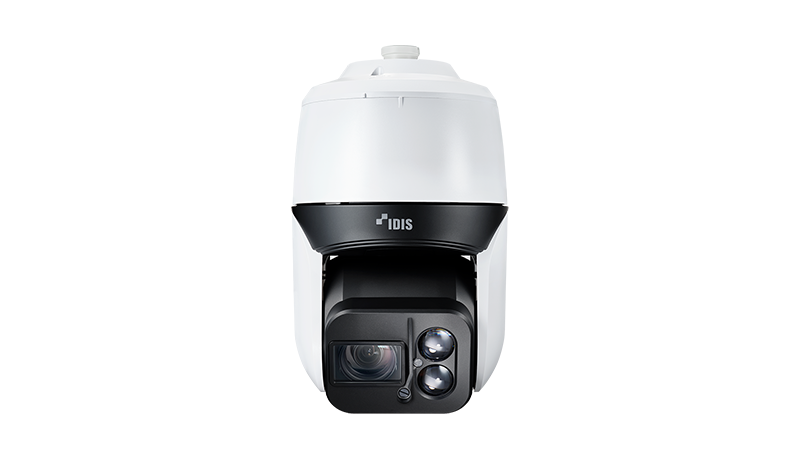

IDIS, 8M PTZ Speed Dome Camera, Vandal IK 10,IP66 w/Heater, H.265@30ips, 1/1.8" CMOS, 6.5~202mm(31x), P-iris, DirectIP 2.0, ONVIF Profile S/T, Alarm in(8)/out(2), Audio in/out, Micro SD/SDHC/SDXC (Up to 512GB), 24VAC, PoE, IEEE 802.3bt(Class 8), HEATER / IR LED ON 24VAC, 1.6A, 28W, 50/60Hz PoE, IEEE 802.3bt(Class 8) 28.4W, HEATER / IR LED OFF 24VAC, 2.8A, 52.9W, 50/60Hz PoE, IEEE 802.3bt(Class 8), 53.1W , Built-in 300m / 984.3ft (2ea) Long range IR Illuminator
