- Easy installation with DirectIP NVR
- 2MP (1920x1080) resolution
- AF optical zoom lens (f=5.2 - 156mm), 30x zoom
- micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE IEEE 802.3at (Class 4)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Image Stabilizer (EIS)
- Supports ONVIF
| Video |
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
1920 x 1080 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
AF Zoom Lens |
| Focal Length |
5.2 ~ 156mm |
| Aperture |
F1.33 ~ F4.95 |
| Iris Control |
DC Iris (Hall Sensor) |
| Angular Field of View |
Wide : 58.9°(H), 34.4°(V), 66.3°(D)
Tele : 2.7°(H), 1.5°(V), 3.1°(D) |
| Min. Illumination |
Color : 0.1 lux @ F1.33
B/W : 0.01 lux @ F1.33 |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night |
Yes (ICR) |
| IR Distance (LEDs) |
- |
| Image Setting |
Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation |
BLC |
| Mirroring / Pivot |
Horizontal / Vertical |
| Image Stabilizer |
Yes (EIS) |
| De-fog |
Yes |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out |
1 Terminal Block |

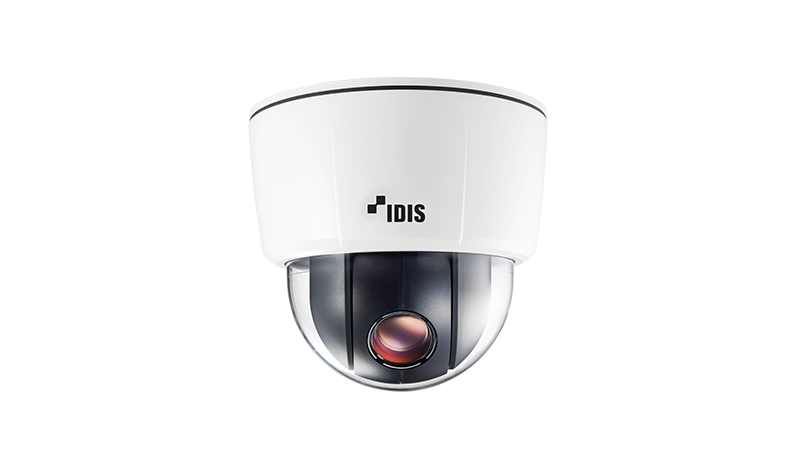

IDIS, 2M PTZ Speed Dome Camera, Vandal IK10,IP67 w/Heater, H.265@30ips, 1/2.8" CMOS, 5.2 ~ 156mm(30X), DirectIP 2.0, ONVIF Profile S/T, Alarm in(4)/out(2), Audio in (1) /out (1), Micro SD/SDHC/SDXC (Up to 512GB), 24VAC, PoE IEEE 802.3at (Class 4), HEATER OFF
24V~, 0.8A, 13.8W, 50/60Hz PoE, IEEE 802.3at(Class 4), 13.6W, HEATER ON 24V~, 1.0A, 17.6W, 50/60Hz PoE IEEE 802.3at(Class 4), 17.2W
