Description

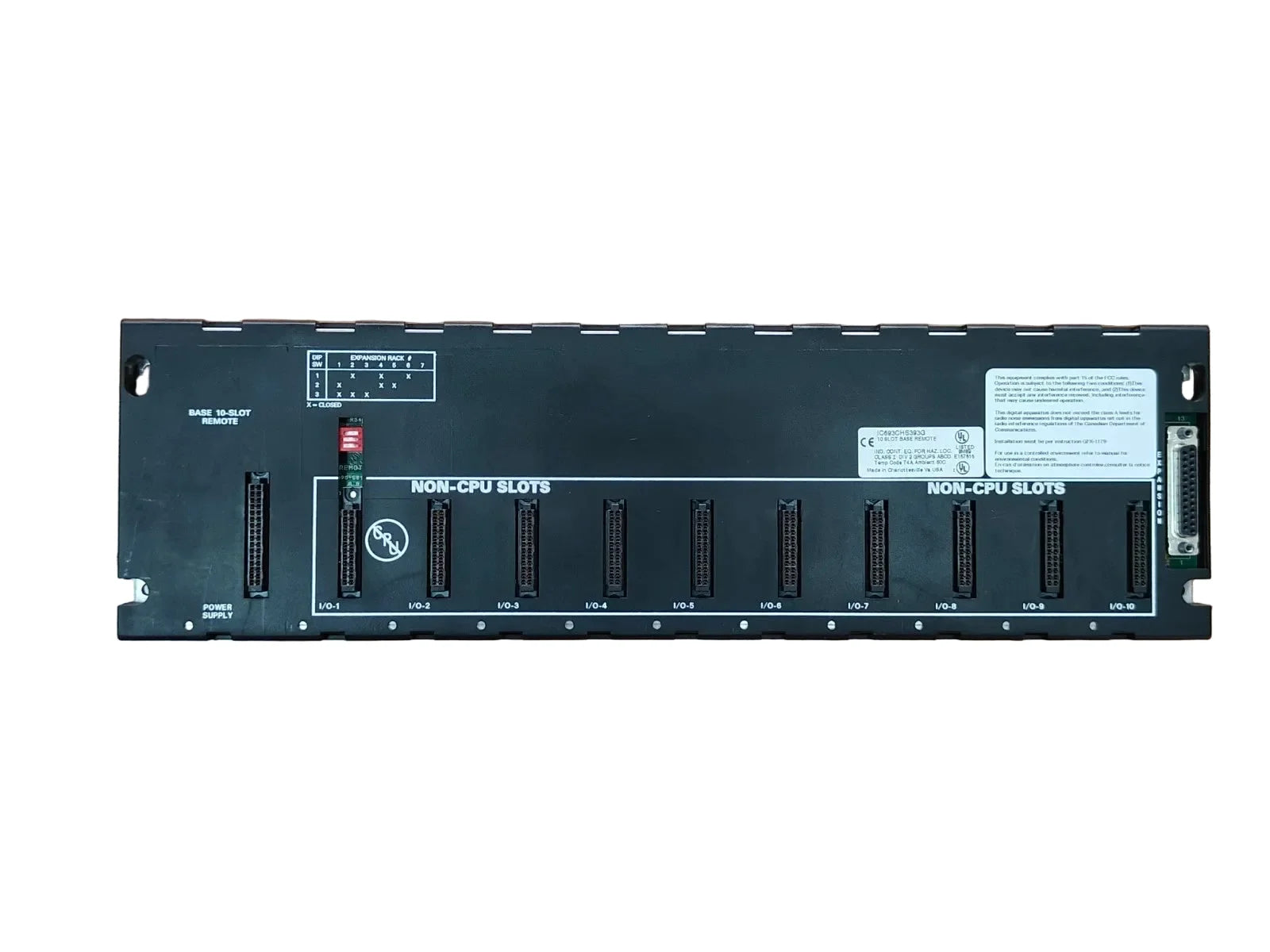

The GE Fanuc IC693CHS393 is a 10-slot remote baseplate designed for Series 90-30 PLC systems to support distributed I/O configurations. Operating on 5 VDC internal power, it enables remote mounting of I/O and option modules up to 700 feet from the main rack. This baseplate is intended for panel-mounted industrial automation systems requiring flexible expansion.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc Emerson |
| Category |
Industrial Automation |
| Part Number |
IC693CHS393 |
| Subcategory |
PLC Baseplates |
| Product Line |
Series 90-30 |
| Baseplate Type |
Remote Baseplate |
| Number of Slots |
10 |
| I/O Slots |
10 |
| Power Supply Slot |
Yes |
| Rated Voltage |
5 VDC |
| Internal Power Consumption |
460 mA |
| Expansion Connector |
25-Pin Female D-Type |
| Maximum Expansion Distance |
700 ft |
| Expansion Baseplate Support |
Yes |
| Mounting Method |
Panel Mount |
| Weight |
4.69 lbs (2.13 kg) |
Information About IC693CHS393
The IC693CHS393 is part of the GE Fanuc Series 90-30 product line and is specifically designed as a remote baseplate rather than a standalone rack. It does not support a CPU module and must be connected to a main baseplate using an I/O bus expansion cable. The baseplate provides ten slots for I/O and option modules, along with a dedicated power supply slot to support installed modules. Its 25-pin female D-type expansion connector allows reliable communication and power distribution in distributed control architectures.
Key Features:
- Series 90-30 Compatibility: Designed for use within GE Fanuc Series 90-30 PLC systems.
- 10-Slot Remote Baseplate: Supports multiple I/O and option modules in a remote configuration.
- Distributed I/O Support: Enables remote installation up to 700 feet from the main rack.
- 25-Pin D-Type Expansion Connector: Provides reliable I/O bus communication to the main baseplate.
- Dedicated Power Supply Slot: Includes a slot for a Series 90-30 power supply module.
- Panel-Mount Design: Intended for secure installation in industrial control panels.
The IC693CHS393 delivers the reliability and flexibility required for remote I/O expansion in Series 90-30 PLC automation systems.
