Description

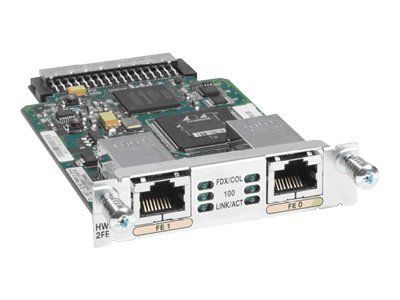

The Cisco HWIC-2FE is a high-speed WAN interface card that provides two 10/100 Mbps Fast Ethernet ports for Cisco integrated services routers. It enables flexible LAN/WAN connectivity, making it ideal for branch office deployments and network expansion.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
Data Communications |
| Part Number |
HWIC-2FE |
| Subcategory |
|
| Co2 Savings |
5.41 |
| Data Transfer Rate |
0.1 Gbit/s |
| Data Link Protocols |
IEEE802.3 + IEEE802.2 SAP, IEEE802.3 + IEEE802.2 SNAP, IEEE 802.1Q VLAN, PPPoE, SNMP |
| Connectivity Technology |
Wired |
| Networking Features |
Ethernet, VLAN, QoS, MIB, IGMP, NAT, IPv6, GTS, MGCP, DHCP, L2TPv3, GLBP, GRE |
| Operating Temperature |
0 - 40 °C |
| Storage Temperature |
-20 - 65 °C |
| Operating Relative Humidity |
10 - 90% |
| Dimensions (WxDxH) |
78 x 120 x 19.5 mm |
| I/O ports |
2 x RJ-45 |
| Weight |
0.91 kgs |
Information About HWIC-2FE
The Cisco HWIC-2FE is a High-Speed WAN Interface Card that adds two 10/100 Mbps Fast Ethernet routed ports to compatible Cisco Integrated Services Routers (ISRs), enhancing network connectivity and flexibility.
Key Features:
-
Dual Fast Ethernet Ports: Provides two additional 10/100 Mbps Ethernet interfaces for expanded network connections.
-
Layer 3 Routing Capabilities: Supports advanced routing features, including per-port access control lists (ACLs), IP addressing, and routing protocols.
-
VLAN Support: Enables IEEE 802.1Q VLAN tagging for network segmentation and improved traffic management.
-
Auto-Sensing and Auto-Negotiation: Automatically detects and adjusts to the speed and duplex mode of connected devices, simplifying network configuration.
-
Compact Form Factor: Single-wide HWIC design allows for efficient use of router expansion slots.
-
Operating Temperature: 32 to 104°F (0 to 40°C)
-
Storage Temperature: -4 to 149°F (-20 to 65°C)
-
Relative Humidity: 10% to 90%, non-condensing
By integrating the HWIC-2FE into a compatible Cisco router, users can enhance their network's scalability and performance, accommodating growing connectivity needs in various environments.
