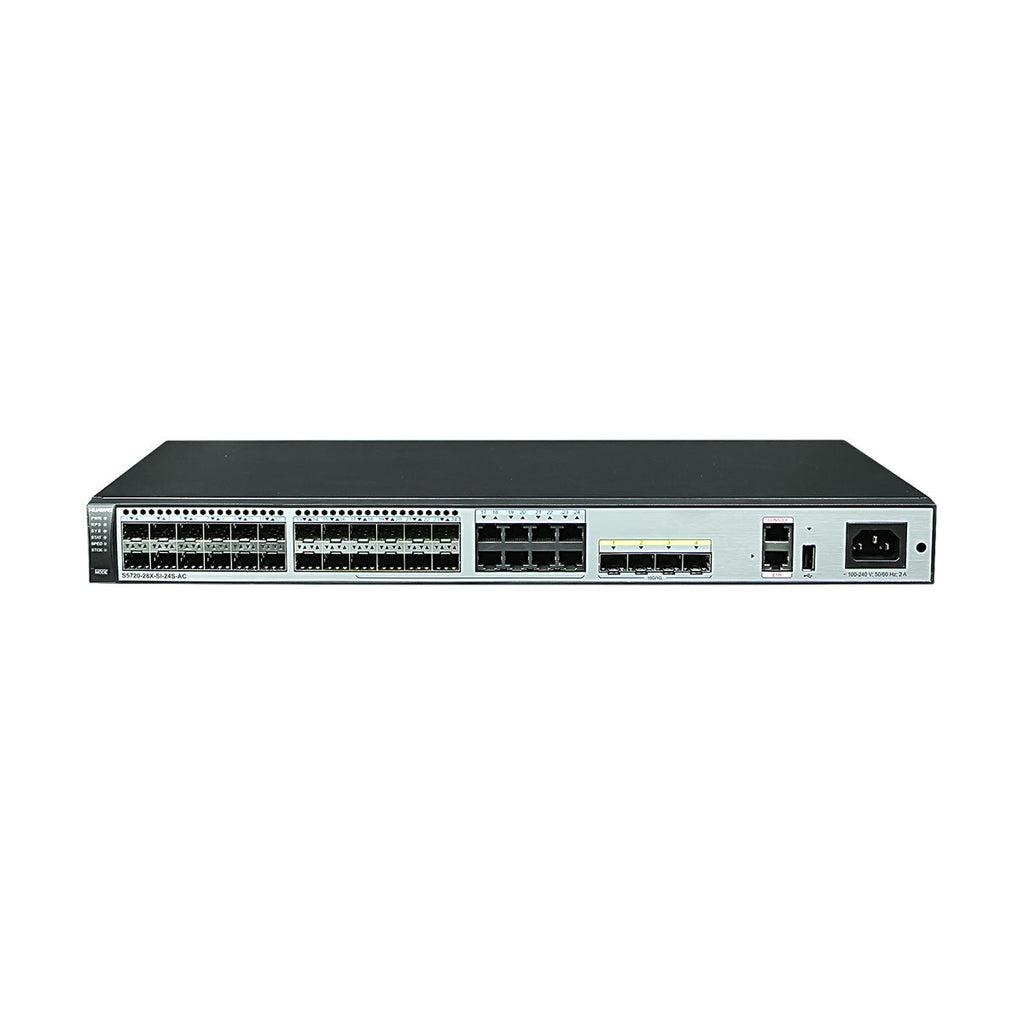

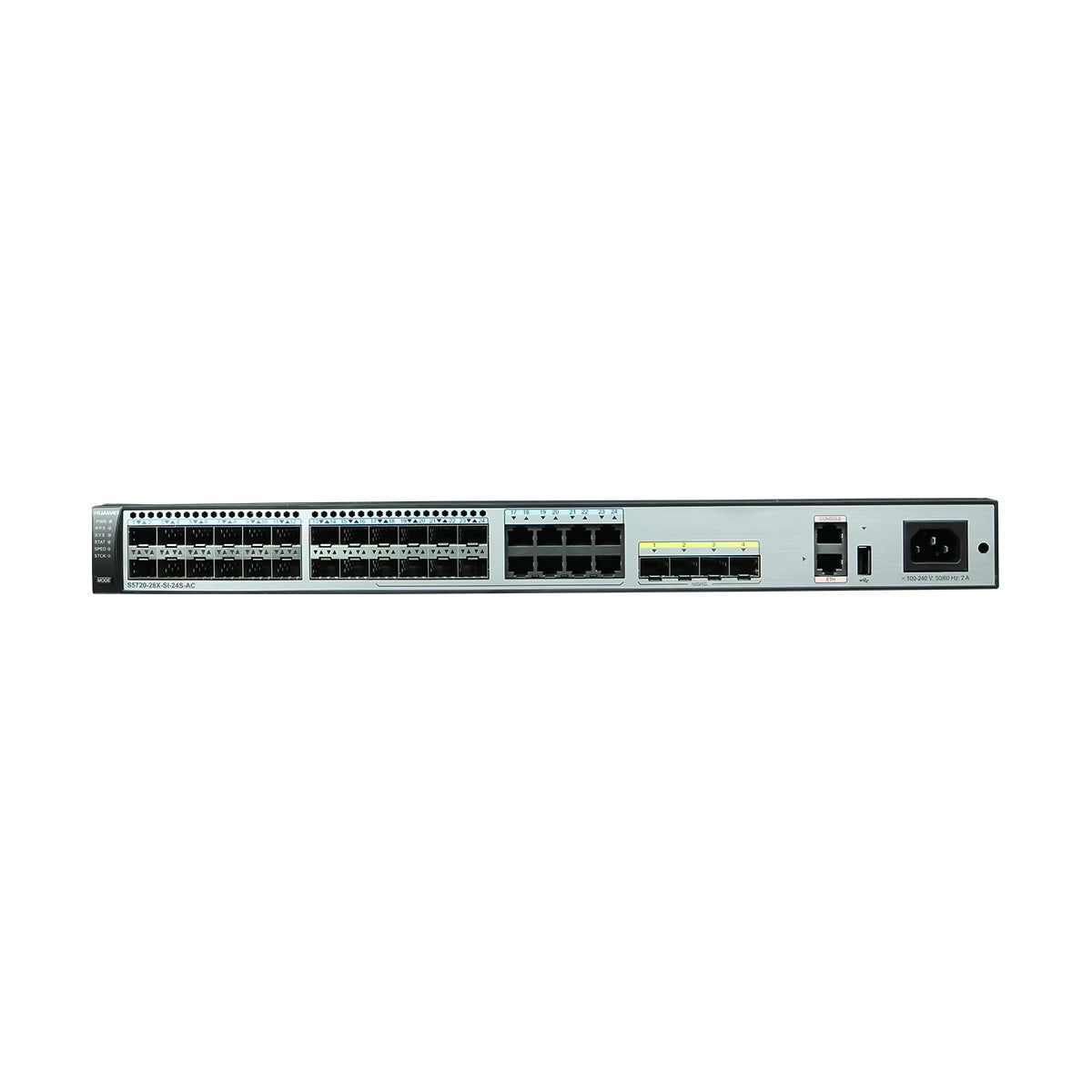

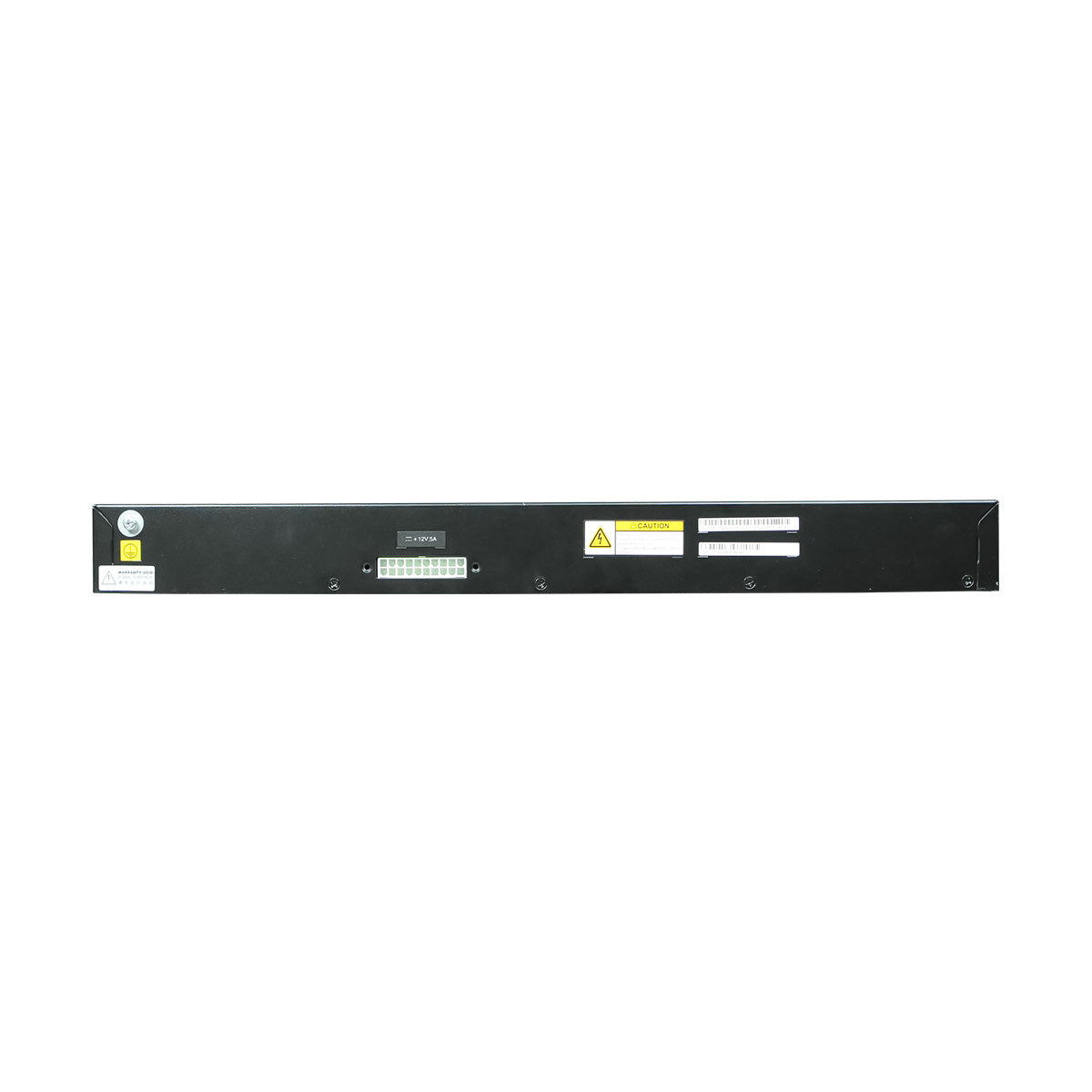

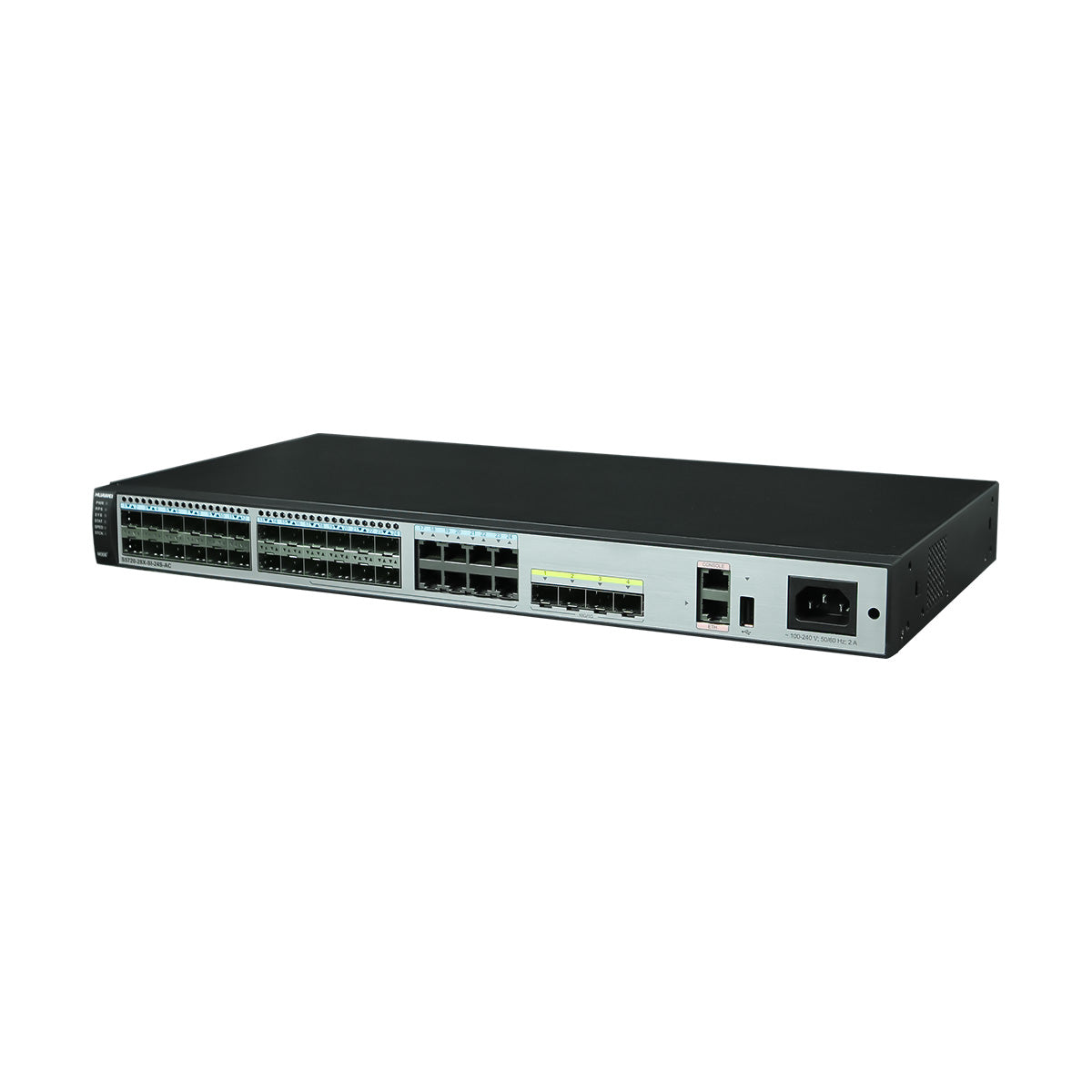

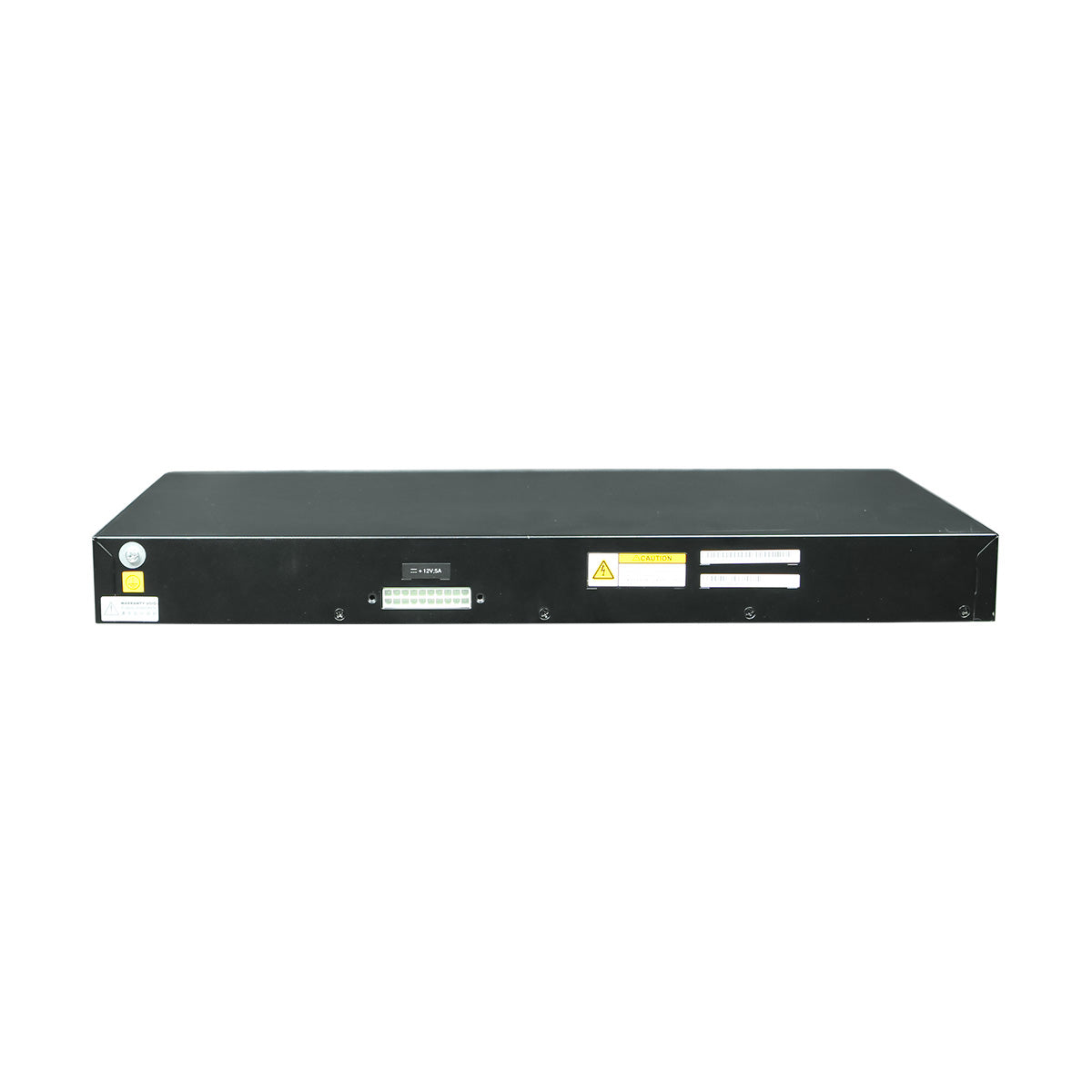

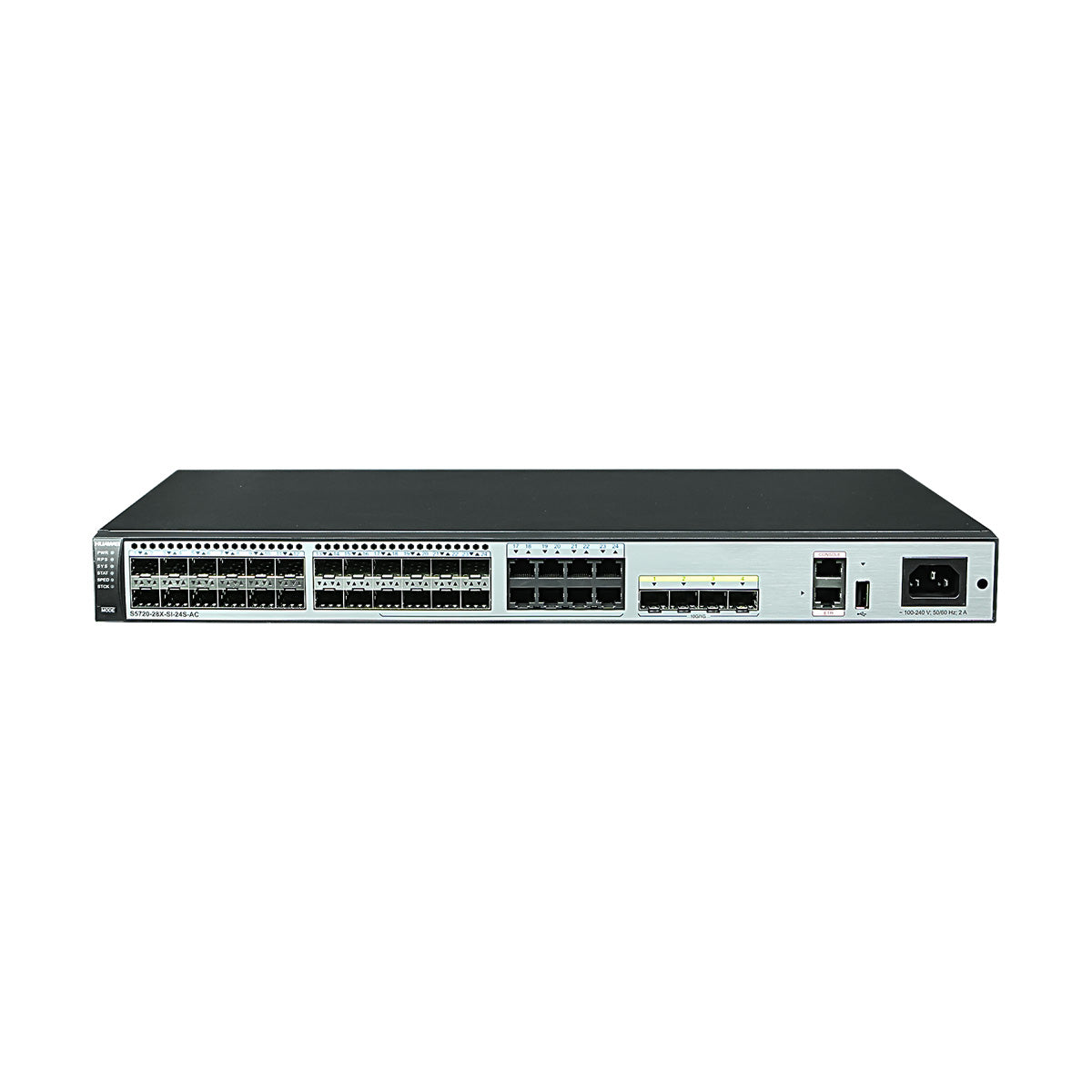

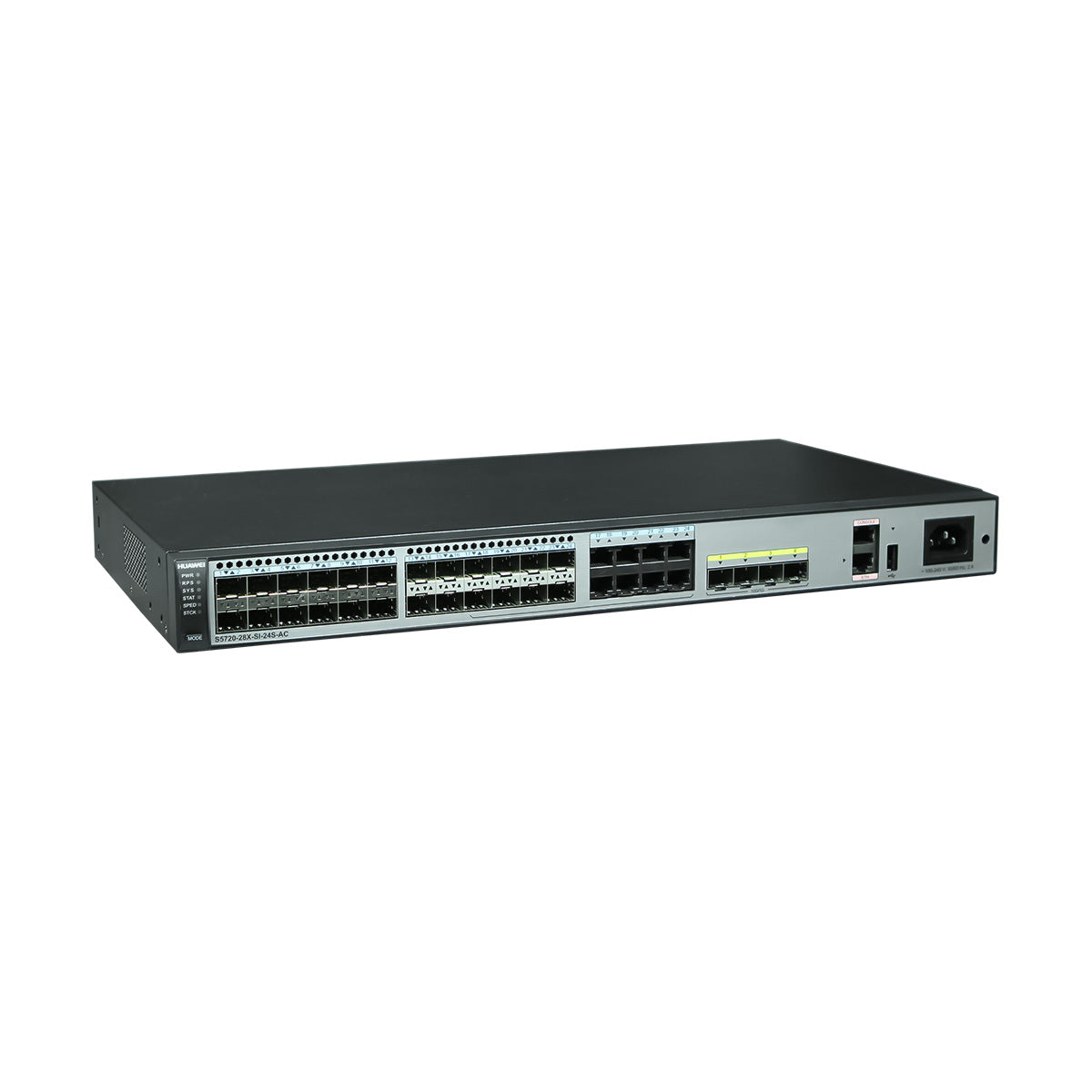

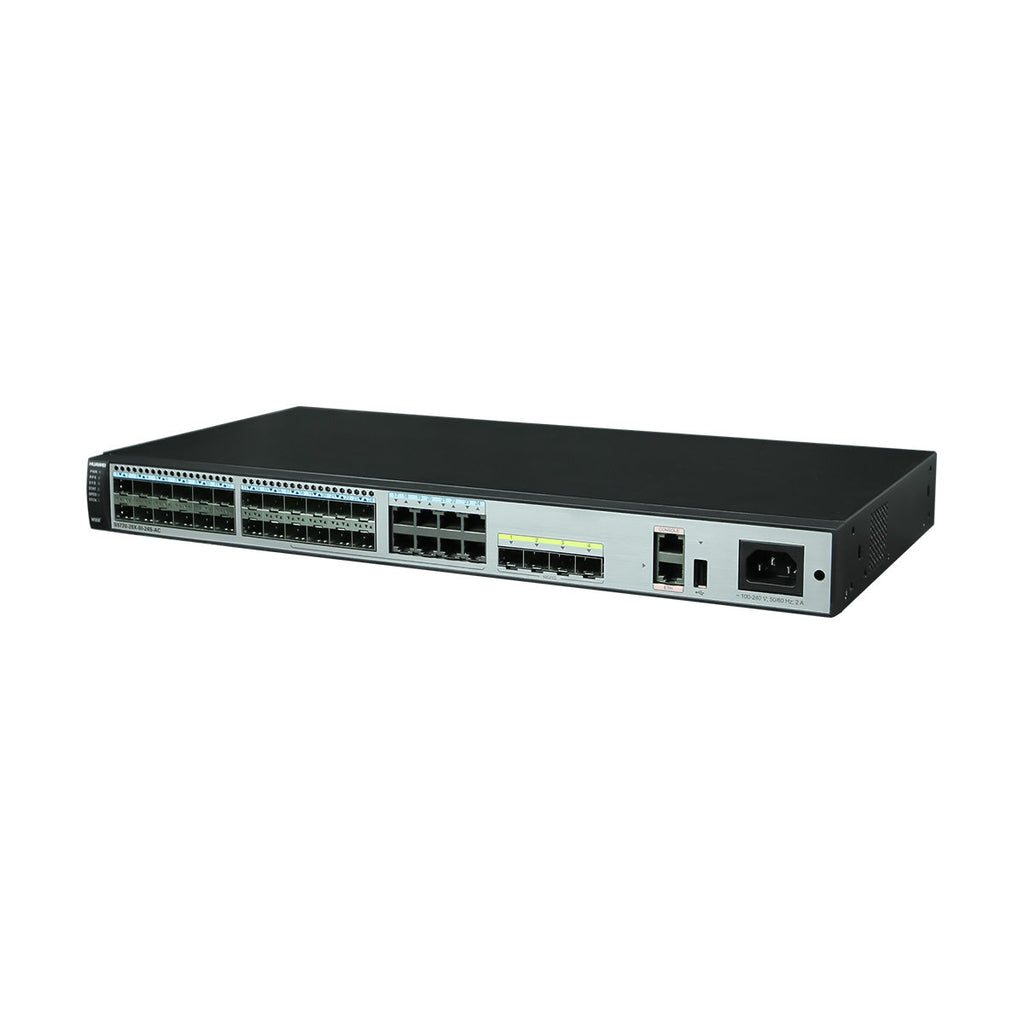

Huawei S5720-28X-SI-24S-AC Layer 3 Gigabit Ethernet Switch

The Huawei S5720-28X-SI-24S-AC is a high-performance Layer 3 Gigabit Ethernet switch designed for enterprise campus networks and data centers. It offers 24 Gigabit SFP ports, including 8 dual-purpose 10/100/1000BASE-T or SFP ports, and 4 10 Gigabit SFP+ uplink ports, providing flexible deployment options.

With a switching capacity of 336 Gbps and a forwarding rate of 96 Mpps, this switch ensures efficient data handling. It supports advanced features such as IPv6, comprehensive security mechanisms, and intelligent stacking (iStack), making it a versatile solution for various networking needs.

Overview

Highlights

• Flexible Port Configuration: 24 Gigabit SFP ports (8 dual-purpose 10/100/1000BASE-T or SFP) and 4 10 Gigabit SFP+ uplink ports.

• High Performance: 336 Gbps switching capacity and 96 Mpps forwarding rate ensure efficient data processing.

• Advanced Layer 3 Features: Supports static routing, RIP, OSPF, IS-IS, BGP, and VRRP for robust network routing capabilities.

• Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.

• Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.

• Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.

• Redundant Power Supplies: Equipped with dual hot-swappable AC/DC power supplies for enhanced reliability.

Recommended Accessories

Product Model	Category	Description
SFP-GE-SX-MM850	SFP Transceiver	1000BASE-SX SFP, 850nm, multimode fiber, up to 550m
SFP-GE-LX-SM1310	SFP Transceiver	1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10km
SFP-GE-LH40-SM1310	SFP Transceiver	1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40km
SFP-GE-ZX50-SM1550	SFP Transceiver	1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 50km
SFP-GE-ZX80-SM1550	SFP Transceiver	1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 80km
SFP-GE-ZX100-SM1550	SFP Transceiver	1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 100km
SFP-GE-LX20-SM1310-BIDI	SFP Transceiver	1000BASE-LX BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 20km
SFP-GE-LX20-SM1550-BIDI	SFP Transceiver	1000BASE-LX BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 20km
SFP-GE-LH40-SM1310-BIDI	SFP Transceiver	1000BASE-LH BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 40km
SFP-GE-LH40-SM1550-BIDI	SFP Transceiver	1000BASE-LH BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 40km



Comparison with Similar Items

Feature	S5720-28X-SI-24S-AC	S5720-28X-SI-AC	S5720-28X-PWR-SI-AC
Downlink Ports	24 × GE SFP (8 combo)	24 × GE RJ45	24 × GE RJ45 (PoE+)
Uplink Ports	4 × 10GE SFP+	4 × 10GE SFP+	4 × 10GE SFP+
Switching Capacity	336 Gbps	336 Gbps	336 Gbps
Forwarding Rate	96 Mpps	96 Mpps	96 Mpps
PoE Support	No	No	Yes
Power Supply	Dual AC/DC	Dual AC/DC	Dual AC/DC
Ideal Use Case	Fiber aggregation	Copper aggregation	PoE deployments



Specifications

Parameter	Specification
Model	S5720-28X-SI-24S-AC
Downlink Ports	24 × 100/1000BASE-X SFP ports (8 combo 10/100/1000BASE-T or SFP)
Uplink Ports	4 × 10GE SFP+ ports
Switching Capacity	336 Gbps
Forwarding Rate	96 Mpps
MAC Address Table	16K entries
VLANs	Supports up to 4,000 VLANs (IEEE 802.1Q)
QoS	8 queues per port, SP, WRR, and SP+WRR scheduling algorithms
IPv6 Features	IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6
Security Features	802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation
Management	Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2
Power Supply	Dual hot-swappable AC/DC power supplies
Power Consumption	Typical: 47.9 W
Operating Temperature	0°C to 50°C (32°F to 122°F)
Dimensions (W×D×H)	442 mm × 420 mm × 43.6 mm (17.4 in. × 16.5 in. × 1.7 in.)
Weight	≤ 6.5 kg (14.3 lbs)
Warranty	Limited lifetime warranty
