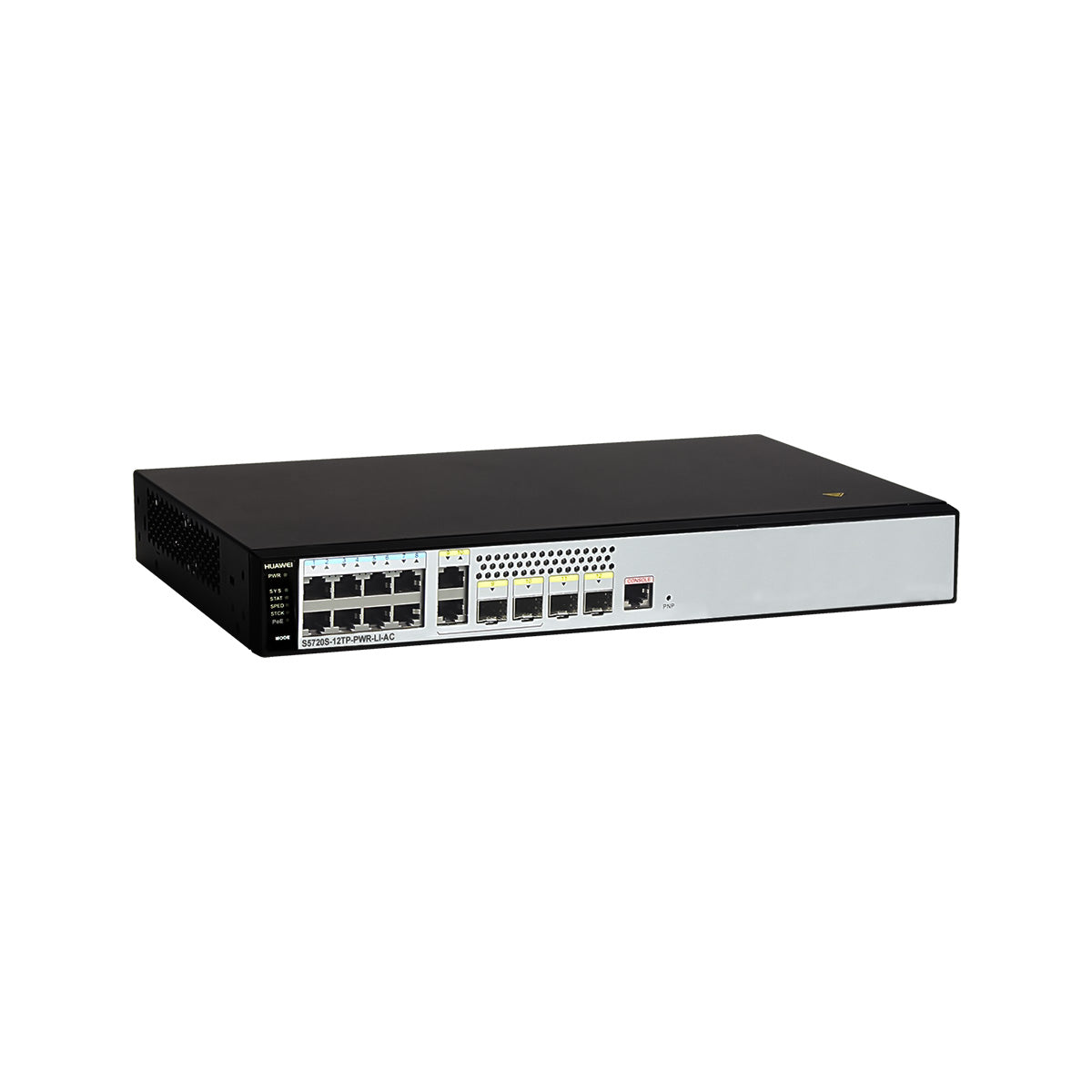

Huawei S5720-12TP-LI-AC Layer 2+ Gigabit Ethernet Switches

The Huawei S5720-12TP-LI-AC is a Layer 2+ Gigabit Ethernet switch designed for small to medium-sized enterprise networks. It features 8 10/100/1000BASE-T ports, 4 Gigabit SFP ports (including 2 dual-purpose combo ports), providing flexible deployment options.

With a switching capacity of 336 Gbps and a forwarding rate of 22.5 Mpps, this fanless switch ensures efficient performance with low power consumption. Its comprehensive security features, QoS capabilities, and IPv6 support make it a versatile solution for various networking needs.

Overview

Highlights

• Flexible Port Configuration: 8 10/100/1000BASE-T ports and 4 Gigabit SFP ports, including 2 combo ports.

• High Performance: 336 Gbps switching capacity and 22.5 Mpps forwarding rate ensure efficient data handling.

• Fanless Design: Natural heat dissipation for silent operation and reduced power consumption.

• Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, and port isolation.

• Advanced QoS: Supports traffic classification, rate limiting, and multiple queue scheduling algorithms.

• IPv6 Support: Includes IPv6 host, static routes, and MLD snooping for future-proof networking.

• Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.

Recommended Accessories

Product Model	Category	Description
SFP-GE-SX-MM850	SFP Transceiver	1000BASE-SX SFP, 850nm, multimode fiber, up to 550m
SFP-GE-LX-SM1310	SFP Transceiver	1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10km
SFP-GE-LH40-SM1310	SFP Transceiver	1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40km
SFP-GE-ZX50-SM1550	SFP Transceiver	1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 50km
SFP-GE-ZX80-SM1550	SFP Transceiver	1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 80km
SFP-GE-ZX100-SM1550	SFP Transceiver	1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 100km
SFP-GE-LX20-SM1310-BIDI	SFP Transceiver	1000BASE-LX BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 20km
SFP-GE-LX20-SM1550-BIDI	SFP Transceiver	1000BASE-LX BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 20km
SFP-GE-LH40-SM1310-BIDI	SFP Transceiver	1000BASE-LH BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 40km
SFP-GE-LH40-SM1550-BIDI	SFP Transceiver	1000BASE-LH BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 40km



Comparison with Similar Items

Feature	S5720-12TP-LI-AC	S5720S-12TP-PWR-LI-AC	S5720-28TP-LI-AC
Downlink Ports	8 × GE	8 × GE PoE+	24 × GE
Uplink Ports	4 × GE SFP (2 combo)	4 × GE SFP (2 combo)	4 × GE SFP (2 combo)
PoE Support	No	Yes (124W budget)	No
Switching Capacity	336 Gbps	336 Gbps	336 Gbps
Forwarding Rate	22.5 Mpps	22.5 Mpps	46.5 Mpps
Management	Web, CLI, SNMP	Web, CLI, SNMP	Web, CLI, SNMP
Ideal Use Case	Small networks	Small PoE deployments	Medium networks



Specifications

Parameter	Specification
Model	S5720-12TP-LI-AC
Downlink Ports	8 × 10/100/1000BASE-T ports
Uplink Ports	4 × Gigabit SFP ports (2 combo)
Switching Capacity	336 Gbps
Forwarding Rate	22.5 Mpps
MAC Address Table	16K entries
VLANs	Supports up to 4,000 VLANs (IEEE 802.1Q)
QoS	4 or 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms
IPv6 Features	IPv6 host, static routes, MLD v1/v2 snooping
Security Features	802.1X, MAC filtering, DHCP snooping, port isolation, storm control
Management	Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2
Power Supply	AC 100–240V, 50/60 Hz
Power Consumption	Typical: 10.39 W; Maximum: 12.85 W
Operating Temperature	0°C to 45°C (32°F to 113°F)
Dimensions (W×D×H)	250 mm × 180 mm × 43.6 mm (9.84 in. × 7.09 in. × 1.72 in.)
Weight	≤ 1.8 kg (3.97 lbs)
Warranty	Limited lifetime warranty
