Description

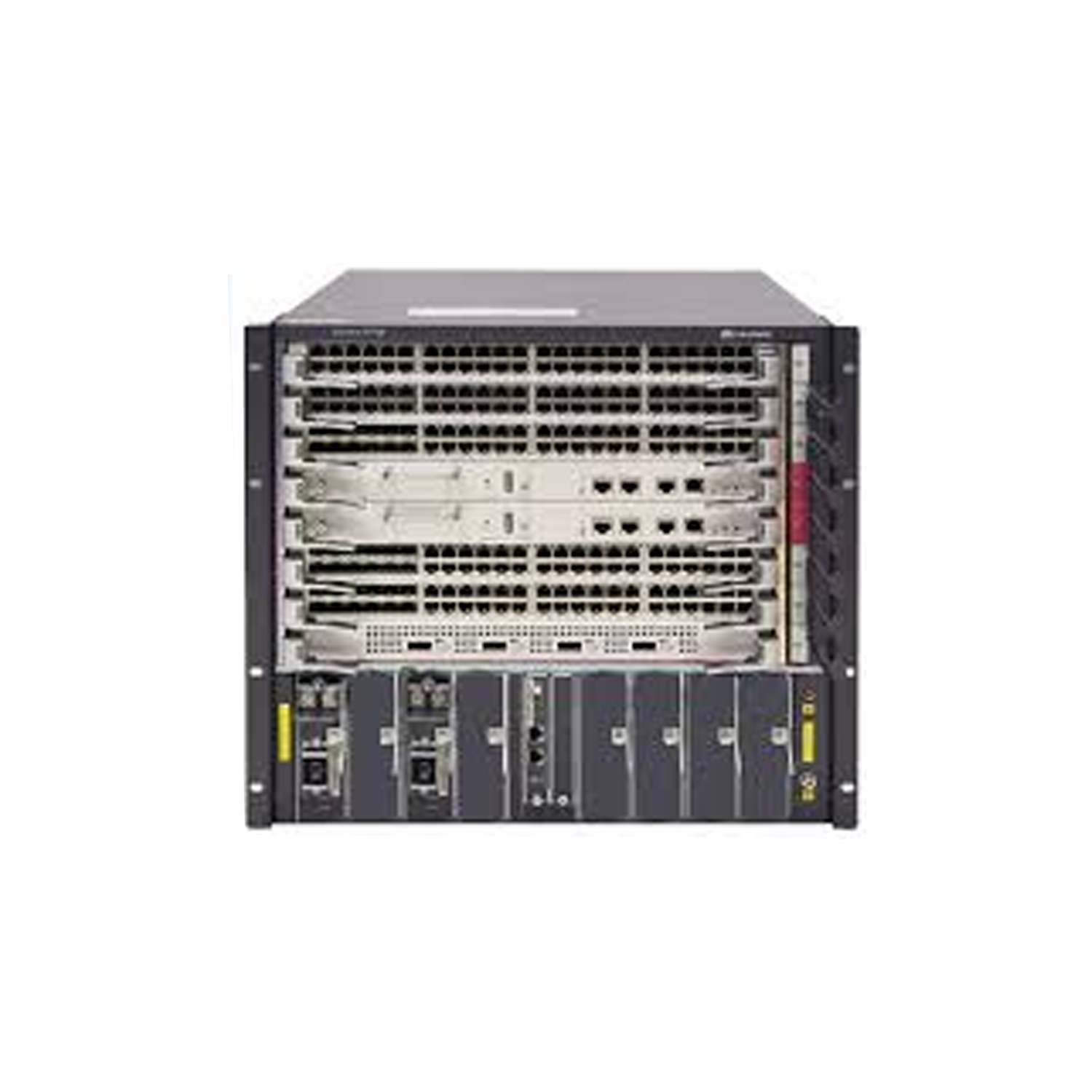

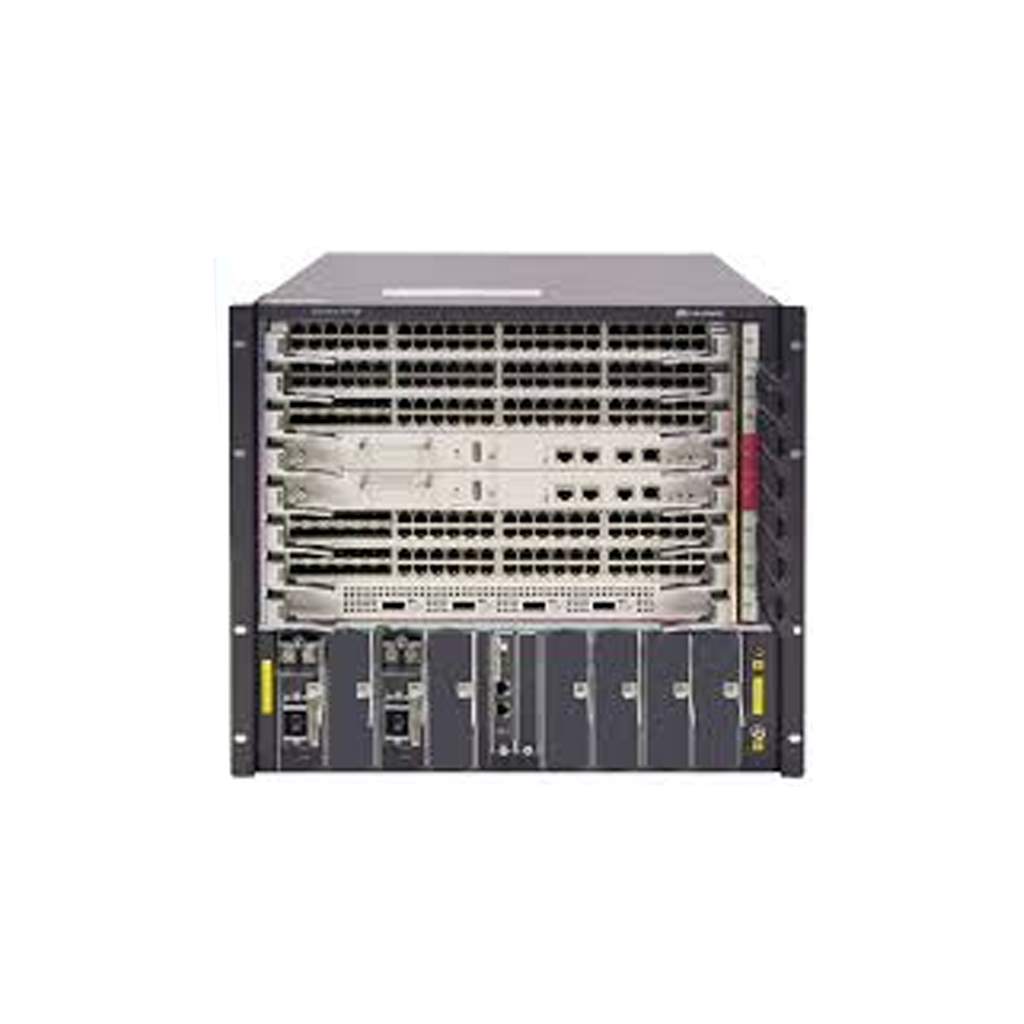

Huawei CloudEngine S7706 PoE Core Switch
The Huawei CloudEngine S7706 PoE is a high-density modular chassis switch designed for enterprise-scale networks requiring Power over Ethernet (PoE) capabilities.
The price includes only the 1 × integrated chassis, and all additional components, such as main control boards, service modules, power supplies, and fan modules, must be purchased separately.
The S7706 PoE chassis offers a flexible and scalable solution, with support for high-performance switching and forwarding, making it ideal for campus aggregation and core network applications when fully equipped.
Overview
Highlights
-
High-density modular design: 10U chassis with multiple slots for main control and service modules
-
PoE support: Designed to deliver Power over Ethernet to connected devices
-
Flexible power configuration: Supports various power supply modules to meet different requirements
-
High-performance switching: Offers robust switching capacity and forwarding rate for enterprise networks
-
Comprehensive network feature support: VXLAN, BGP-EVPN, MACsec, QoS, IPv6, and more
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| Main Control Units | Control Units | Required for operation; specify model based on needs |
| Service Modules | Service Cards | Required for operation; specify model based on needs |
| Power Supply Modules | Power Supplies | Required for operation; specify model based on needs |
| Fan Module | Cooling | Required for operation; specify model based on needs |
Comparison with Similar Models
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S7706 PoE |
| Chassis Size | 10U (441.7 mm × 442 mm × 517.4 mm) |
| Main Control Units | 2 units required (specify model based on needs) |
| Service Slots | 6 (supports various service modules) |
| Fan Slots | 2 (hot-swappable) |
| Power Supply Slots | 4 (supports various power supply modules) |
| PoE Support | Yes (Power over Ethernet capabilities) |
| Switching Capacity | 3.84 Tbps |
| Forwarding Rate | 2880 Mpps |
| System Memory | 16 GB DRAM |
| Storage | 2 GB NAND Flash |
| System Buffer | 8 MB |
| Supported Protocols & Features | VXLAN, BGP-EVPN, MACsec, QoS, IPv6, NAC and more |
| Operating Temperature | 0°C to 45°C (up to 1800 meters above sea level) |
