Description

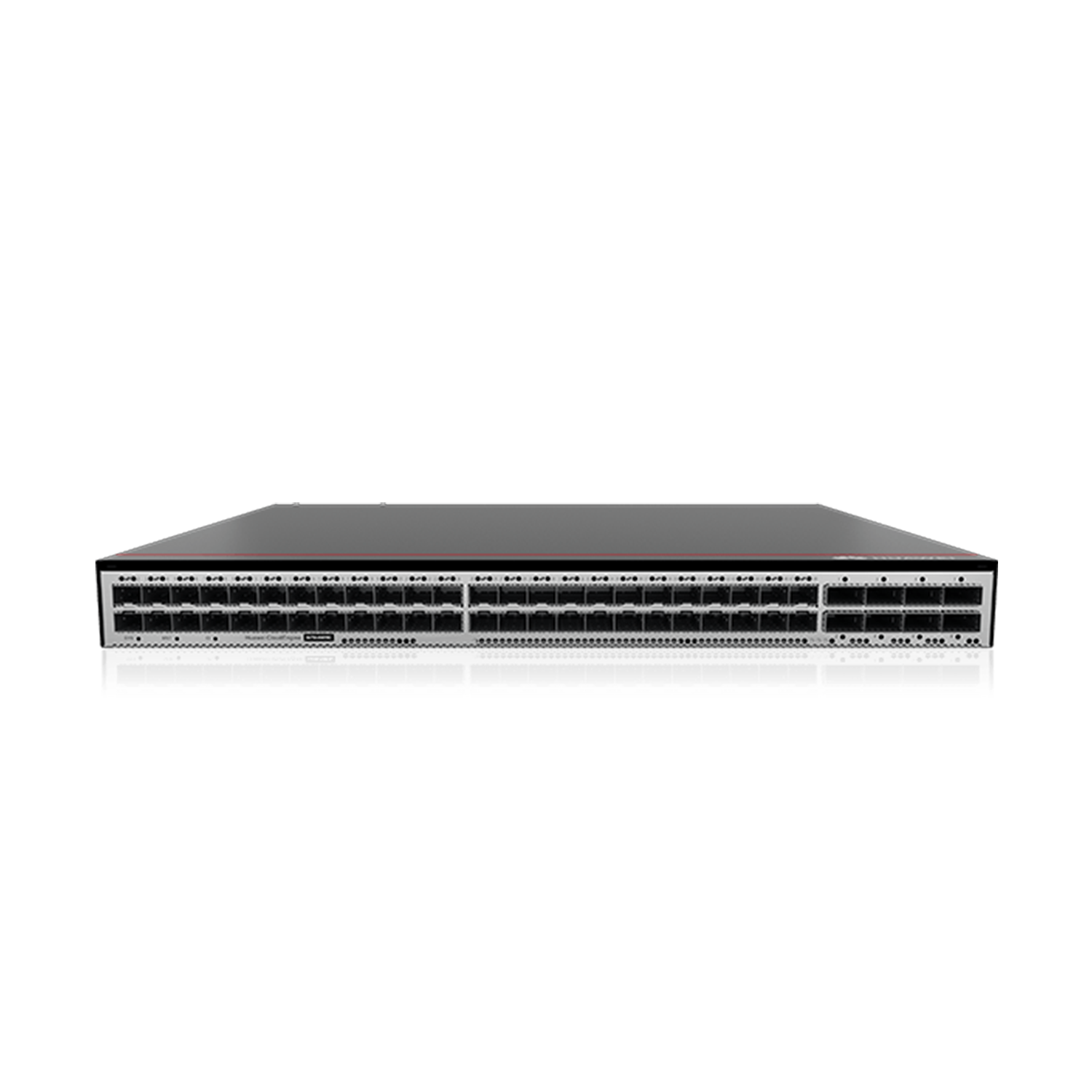

Huawei CloudEngine S6750-H48Y8C Core Switch
The Huawei CloudEngine S6750‑H48Y8C is a high-density, fixed 1U switch engineered for demanding enterprise and campus core/aggregation environments. Featuring 48 hybrid 1/10/25 GE SFP28 downlink ports and 8 dual-speed 40/100 GE QSFP28 uplink ports—with uplink split functionality—it supports next-generation network virtualization, intelligent QoS, and MACsec encryption. Note: Power supply modules are not included and must be purchased separately.
Overview
Highlights
-
Dense High-Speed Connectivity
Includes 48 SFP28 ports supporting 1/10/25 Gbps and 8 QSFP28 ports for 40/100 Gbps, with uplinks capable of splitting into four 10/25 GE. -
Robust Throughput & Performance
Offers a switching capacity of 4Tbps (8Tbps system-wide) and a forwarding rate of 1,200 Mpps. -
Advanced Virtualization & Security
Supports VXLAN with BGP‑EVPN, SRv6, and MACsec encryption—enabling scalable, secure campus-wide virtualization. -
Smart, Reliable Design
Comes with hot-swappable 1+1 power slots (for AC/DC modules), five intelligent fans, iStack for stacking up to 9 units, and in-band telemetry (IFIT) for proactive fault detection.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| Power Supply Module | Power Modules | Hot-pluggable options: 600 W or 1200 W AC/DC (e.g., PAC600S12‑PB, PAC1K2S12‑PB, PDC1K2S12‑CE). Required separately. |
| Fan Module (FAN‑031A‑B) | Cooling Module | Pluggable fan units (five required) for efficient airflow and noise control. |
Comparison with Similar Models
| Feature | Huawei S6750-H48Y8C | Huawei S6750-H36C | Cisco Catalyst 9500-48Y4C |
|---|---|---|---|
| Form Factor | 1U Fixed | 1U Fixed | 1U Fixed |
| Port Configuration | 48×25GE + 8×100GE | 36×100GE | 48×25GE + 4×100GE |
| Switching Capacity | 4 Tbps | 7.2 Tbps | 4.8 Tbps |
| Forwarding Rate | 1,200 Mpps | 1,200 Mpps | 2,000 Mpps |
| Security Features | MACsec, VXLAN, SRv6 | MACsec, VXLAN | MACsec, VXLAN |
| Management & Telemetry | IFIT, iStack | IFIT, iStack | Cisco DNA Center, StackWise |
| Typical Use Case | Campus aggregation/core | High-density core | Campus core/aggregation |
| Power Supply | Modular, Separate | Modular, Separate | Modular, Separate |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S6750-H48Y8C |
| Ports | 48× SFP28 (1/10/25 GE), 8× QSFP28 (40/100 GE) |
| Switching Capacity | 4 Tbps (Up to 8 Tbps system capacity) |
| Forwarding Rate | 1,200 Mpps |
| System Memory | 8 GB DRAM |
| Storage (Flash) | 4 GB NAND Flash |
| Power Supply Slots | 2 slots (hot-swappable AC/DC modules, sold separately) |
| Fan Modules | 5 hot-swappable fans, intelligent airflow (front-to-rear) |
| Power Consumption | Typical: 223 W; Maximum: 342 W |
| Dimensions (H×W×D) | 43.6 mm × 442 mm × 420 mm |
| Weight | Approximately 11.23 kg (with packaging) |
| Operating Conditions | –5°C to +45°C, 5%–95% relative humidity, non-condensing |
| Virtualization | VXLAN, BGP-EVPN, SRv6 |
| Security | MACsec encryption, 802.1X, DHCP/NAC control |
| Stacking | iStack technology, stacking up to 9 units |
| Telemetry | IFIT real-time telemetry |
| Management | CLI, SNMP, NetConf, cloud-managed O&M |
