Description

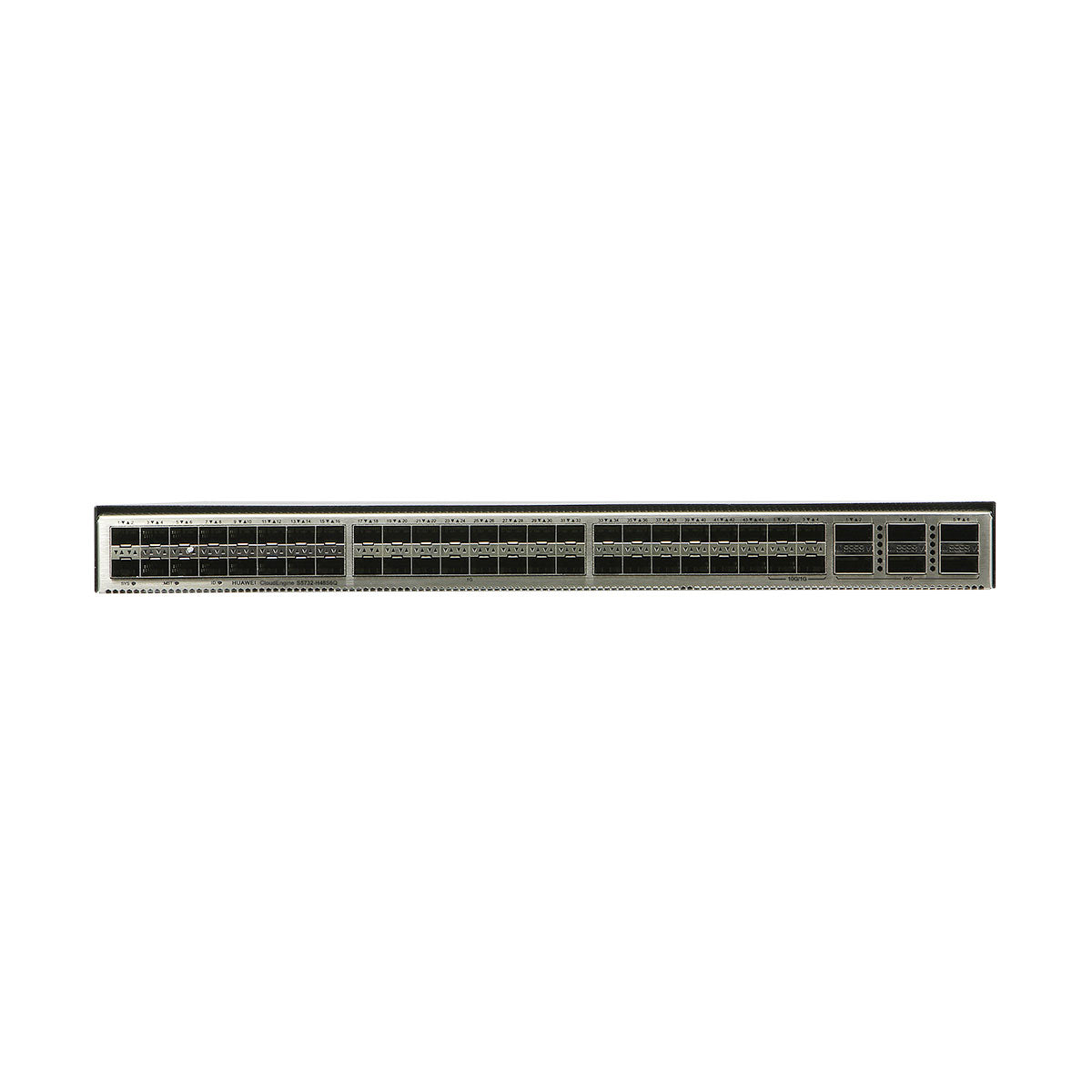

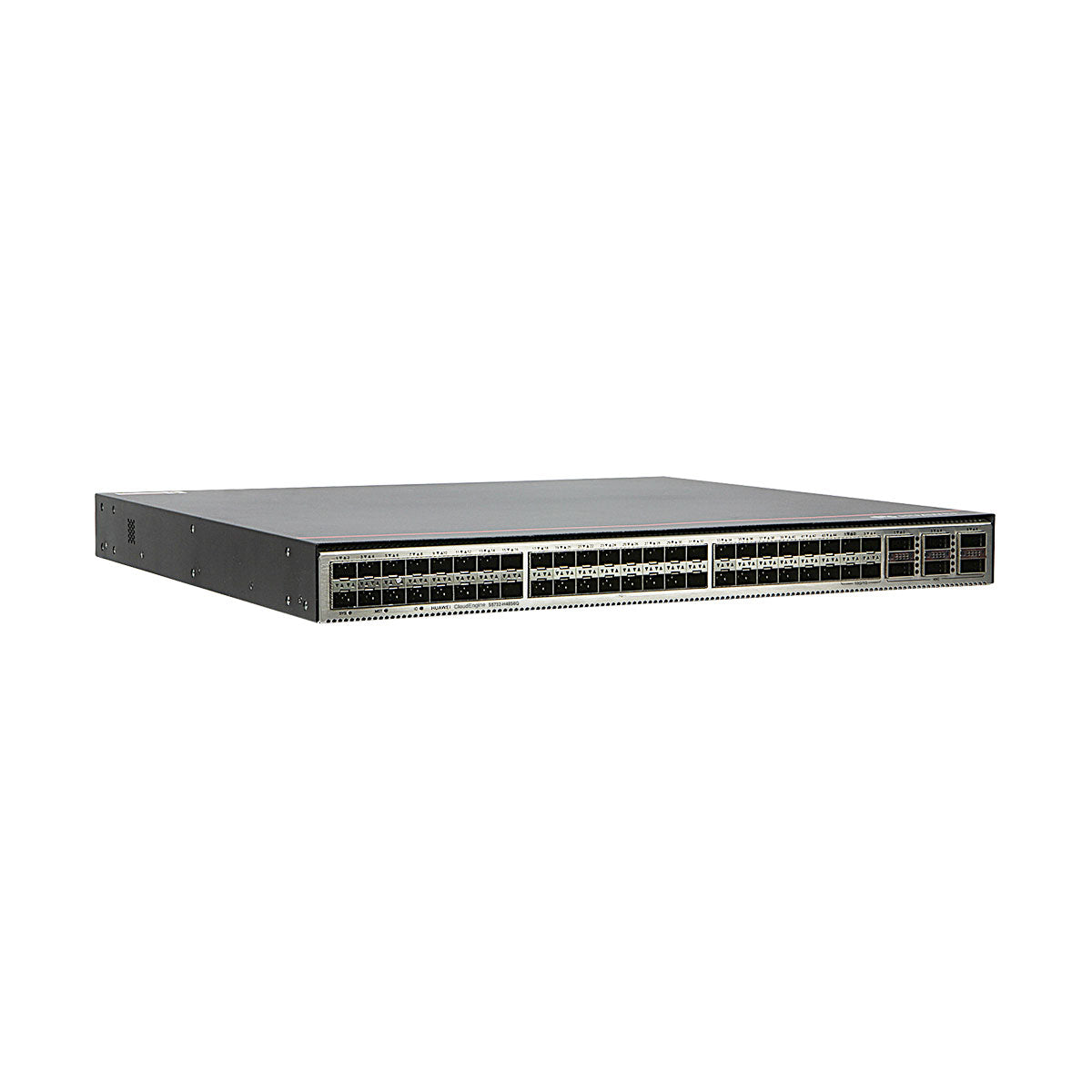

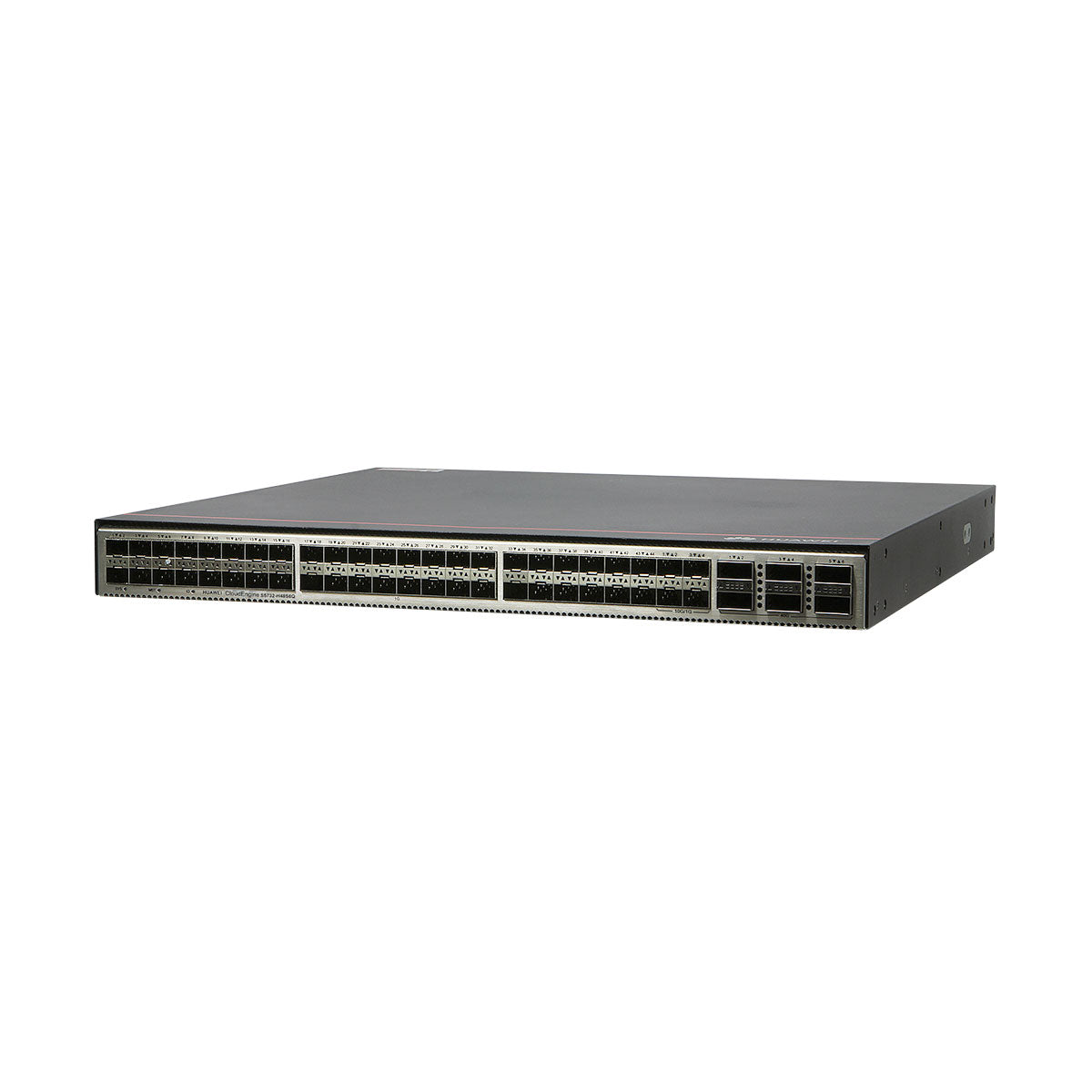

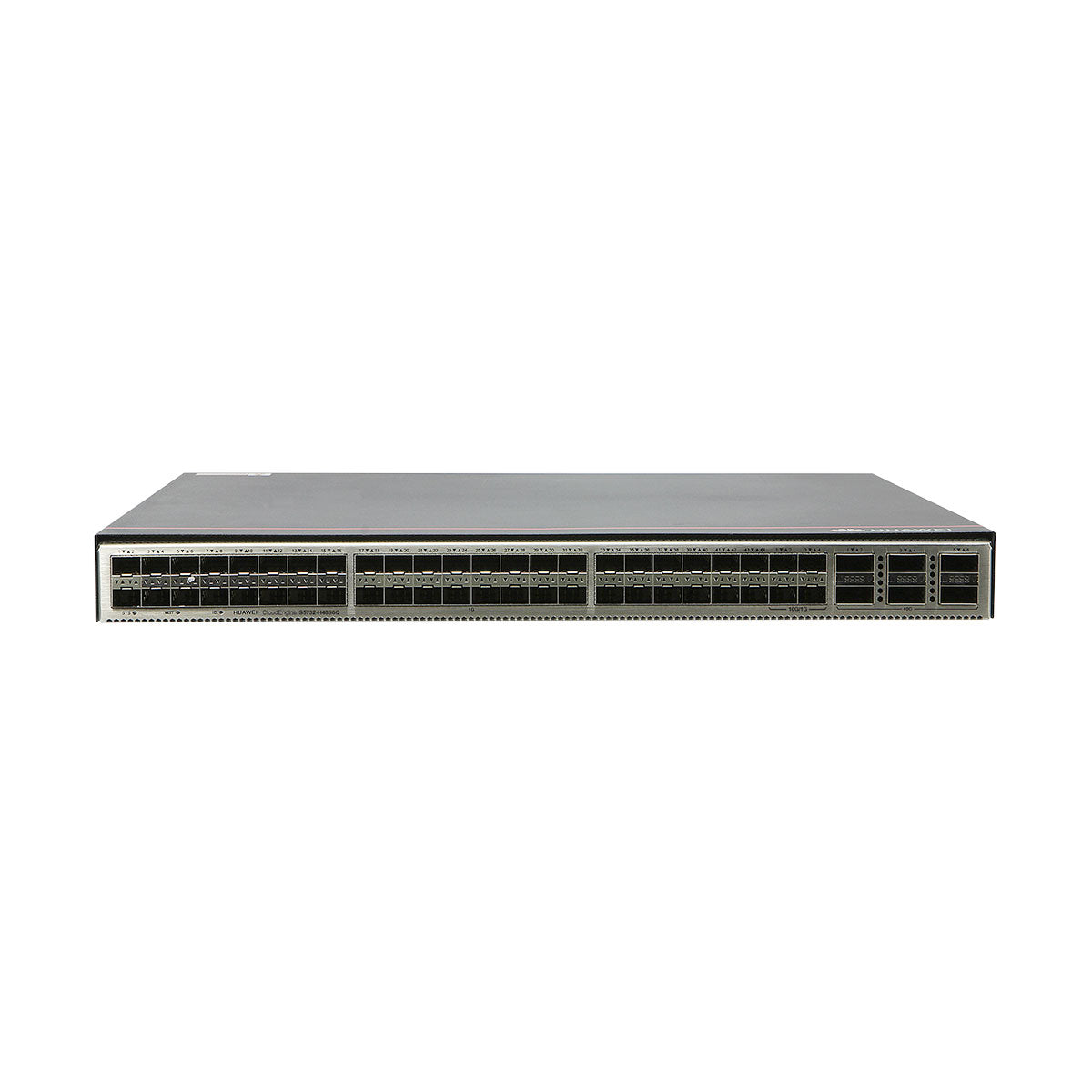

Huawei S5732-H48S6Q Layer 3 All-Optical Switches
The Huawei CloudEngine S5732-H48S6Q is a next-generation, high-performance Layer 3 all-optical switch designed for enterprise campus networks, data centers, and high-density aggregation scenarios.
It offers 44 GE SFP downlink ports, 4 10GE SFP+ ports, and 6 40GE QSFP+ uplink ports, providing flexible deployment options and high-speed data transmission. With a switching capacity of up to 2.4 Tbps and a forwarding rate of 486 Mpps, this switch ensures efficient data handling.
It supports advanced features such as VXLAN, BGP EVPN, intelligent stacking (iStack), comprehensive security mechanisms, and energy-efficient design, making it a versatile solution for various networking needs.
Overview
Highlights
-
Port Configuration: 44 × GE SFP downlink ports, 4 × 10GE SFP+ ports, and 6 × 40GE QSFP+ uplink ports.
-
High Performance: Switching capacity of up to 2.4 Tbps and forwarding rate of 486 Mpps ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, OSPF, BGP, IS-IS, and VXLAN for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-GE-SX-MM850 | SFP Transceiver | 1000BASE-SX SFP, 850nm, multimode fiber, up to 550m |
| SFP-GE-LX-SM1310 | SFP Transceiver | 1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10km |
| SFP-GE-LH40-SM1310 | SFP Transceiver | 1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40km |
| SFP-GE-ZX50-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 50km |
| SFP-GE-ZX80-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 80km |
| SFP-GE-ZX100-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 100km |
| SFP-GE-LX20-SM1310-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 20km |
| SFP-GE-LX20-SM1550-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 20km |
| SFP-GE-LH40-SM1310-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 40km |
| SFP-GE-LH40-SM1550-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 40km |
Comparison with Similar Items
| Feature | S5732-H48S6Q | S5732-H24S6Q | S5732-H48UM2CC |
|---|---|---|---|
| Downlink Ports | 44 × GE SFP | 20 × GE SFP | 48 × Multi-GE |
| Uplink Ports | 4 × 10GE SFP+ | 4 × 10GE SFP+ | 6 × 40GE QSFP+ |
| 40GE QSFP+ Ports | 6 | 6 | 6 |
| Switching Capacity | 2.4 Tbps | 2.4 Tbps | 2.4 Tbps |
| Forwarding Rate | 486 Mpps | 450 Mpps | 486 Mpps |
| Stacking Support | Yes (iStack) | Yes (iStack) | Yes (iStack) |
| Ideal Use Case | High-density aggregation | Medium-density aggregation | High-performance access |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5732-H48S6Q |
| Downlink Ports | 44 × GE SFP ports |
| Uplink Ports | 4 × 10GE SFP+ ports and 6 × 40GE QSFP+ ports |
| Switching Capacity | Up to 2.4 Tbps |
| Forwarding Rate | 486 Mpps |
| MAC Address Table | 32K entries |
| VLANs | Supports up to 4,096 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Dual pluggable AC/DC power modules, supports up to 1000W power budget |
| Power Consumption | Maximum: 229W |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm (17.4 in. × 16.5 in. × 1.7 in.) |
| Weight | ≤ 9.2 kg (20.28 lbs) |
| Warranty | Limited lifetime warranty |
