Description

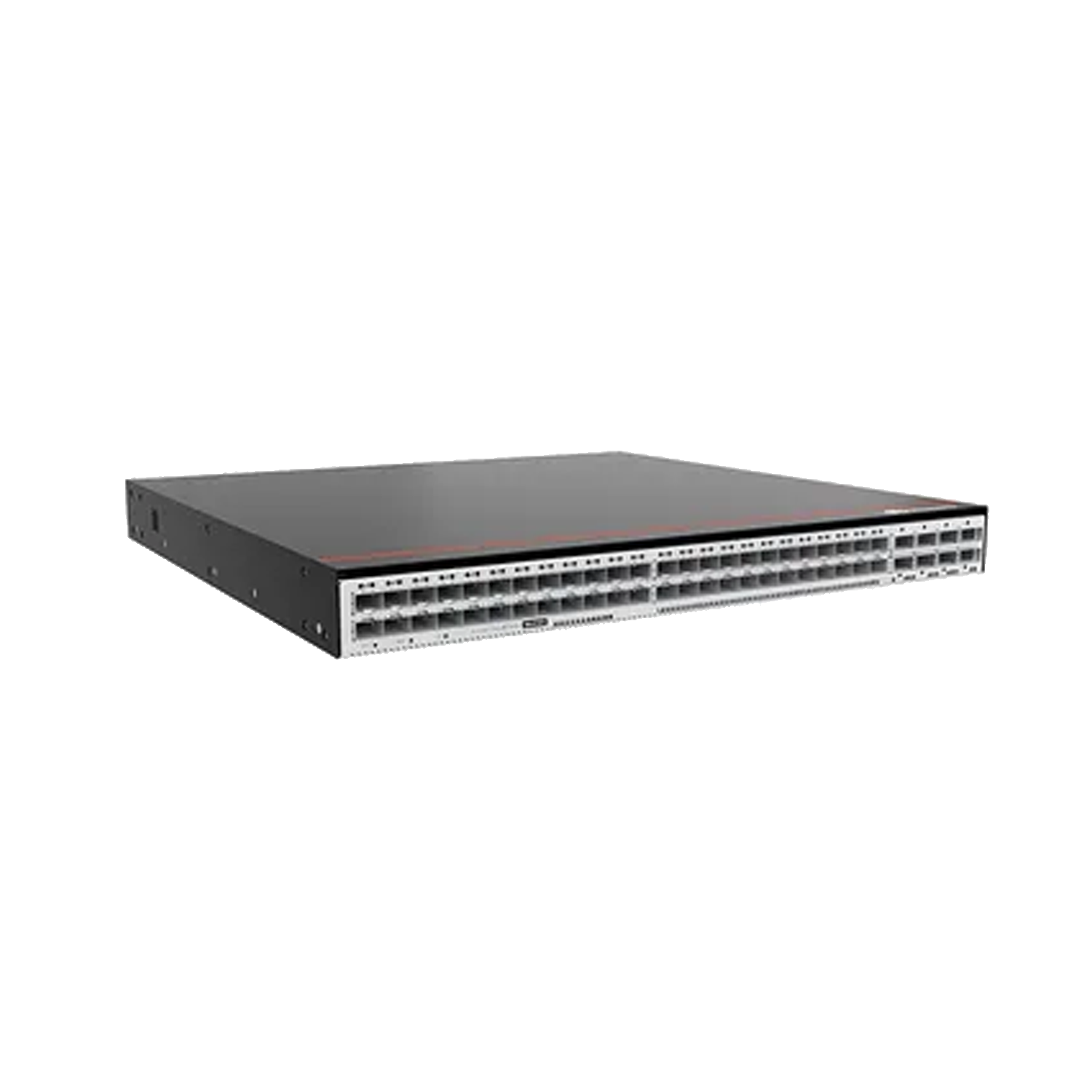

Huawei CE6885L-48YS8CQ Data Center Switch
The Huawei CloudEngine 6885L‑48YS8CQ‑B is a fixed 1 RU data center switch featuring 48 × 25/50 GE SFP28 downlink ports and 8 × 100 GE QSFP28 uplinks (upgradable to 200 GE), powered by 2 × 600 W AC redundant PSUs and cooled by 5 hot-swappable fan trays with front-port intake airflow (reversible).
Built on Huawei’s VRP8/YunShan platform, it delivers 8 Tbps switching capacity, 1,200 Mpps forwarding, and supports modern fabric capabilities like VXLAN/BGP‑EVPN, M‑LAG, AI‑ECN/PFC, MACsec, RoCE, comprehensive telemetry and Zero‑Touch Provisioning.
Overview
Highlights
-
Flexible server access: 48 × 25/50 GE SFP28 ports, backward-compatible with 10/25 GE.
-
High-capacity uplinks: 8 × 100 GE QSFP28, with breakout or licensed upgrade to 200 GE.
-
Performance leadership: 8 Tbps switching, 1,200 Mpps forwarding
-
Advanced fabric features: VXLAN/BGP‑EVPN, M‑LAG, MACsec, PFC/ECN, AI‑ECN, RoCE, VXLAN OAM, YScale congestion control.
-
Resilient design: Dual AC PSU redundancy + 5 hot-swap fans with easy maintenance LEDs.
-
Cloud-grade O&M: Telemetry, ZTP, ERSPAN, ACLs, DoS/ARP defense, AAA, MAC binding, DDoS protection.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 100 GE QSFP28 optics/DAC | Uplink Module | Enables 40/100GE uplinks or licensed 200GE capability |
| 25/50 GE SFP28 optics/DAC | Downlink Module | For flexible server access (10/25/50 GE) |
| PAC600S12‑PF/PB 600 W AC PSU | Power Supply | Redundant hot-swappable PSU for front/rear installation |
| FAN‑031A‑F/B Fan Tray | Cooling | 5 trays supporting intake/exhaust airflow, hot-swappable |
Comparison with Similar Models
| Feature / Model | 6885L‑48YS8CQ‑B (intake) | 6885‑48YS8CQ (bare) | 6885‑48YS8CQ‑F (exhaust) |
|---|---|---|---|
| Downlink Ports | 48 × 25/50 GE SFP28 | 48 × 25/50 GE SFP28 | 48 × 25/50 GE SFP28 |
| Uplink Ports | 8 × 100 GE QSFP28 | 8 × 100 GE QSFP28 | 8 × 100 GE QSFP28 |
| AC Power Modules | 2 × 600 W AC | — | 2 × 600 W AC |
| Fan Modules | 5 × hot-swappable, intake | — | 5 × hot-swappable, exhaust |
| Airflow Direction | Front intake, reversible | Flexible | Exhaust |
| Switching Capacity | 8 Tbps | 8 Tbps | 8 Tbps |
| Forwarding Rate | 1,200 Mpps | 1,200 Mpps | 1,200 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 6885L‑48YS8CQ‑B |
| Ports | 48 × 25/50 GE SFP28; 8 × 100 GE QSFP28 (breakout/upgradable to 200 GE) |
| Switching Capacity | 8 Tbps |
| Forwarding Performance | 1,200 Mpps |
| System Buffer | 32–42 MB |
| MAC Address Table | 640K entries |
| FIB Routes (IPv4/IPv6) | 1.5 M / 750 K |
| CPU | 4 × 1.4 GHz cores |
| Memory / Storage | 8 GB DRAM, 64 MB NOR, 4 GB NAND |
| Fabric & Security Features | VXLAN/BGP‑EVPN, M‑LAG, MACsec, RoCE, VXLAN OAM |
| Congestion Control | PFC, ECN, AI‑ECN, YScale |
| O&M Security Features | Telemetry, ZTP, ERSPAN, ACL, DoS/ARP, AAA, MAC binding, DDoS |
| Power Supplies | 2 × 600 W AC hot-swappable |
| Cooling Modules | 5 × hot-swappable fan trays |
| Power Consumption (Typ/Max) | 147–177 W (25G configs); max 326 W |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Weight (Full Config) | ~9.2 kg |
| Operating Temp / Altitude | 0–40 °C (≤1,800 m; derated above) |
| Noise (27 °C) | 52.8 dBA avg; 58.7 dBA max |
| Certifications | EN/IEC/UL 62368‑1, EMC Class A, RoHS |
