Description

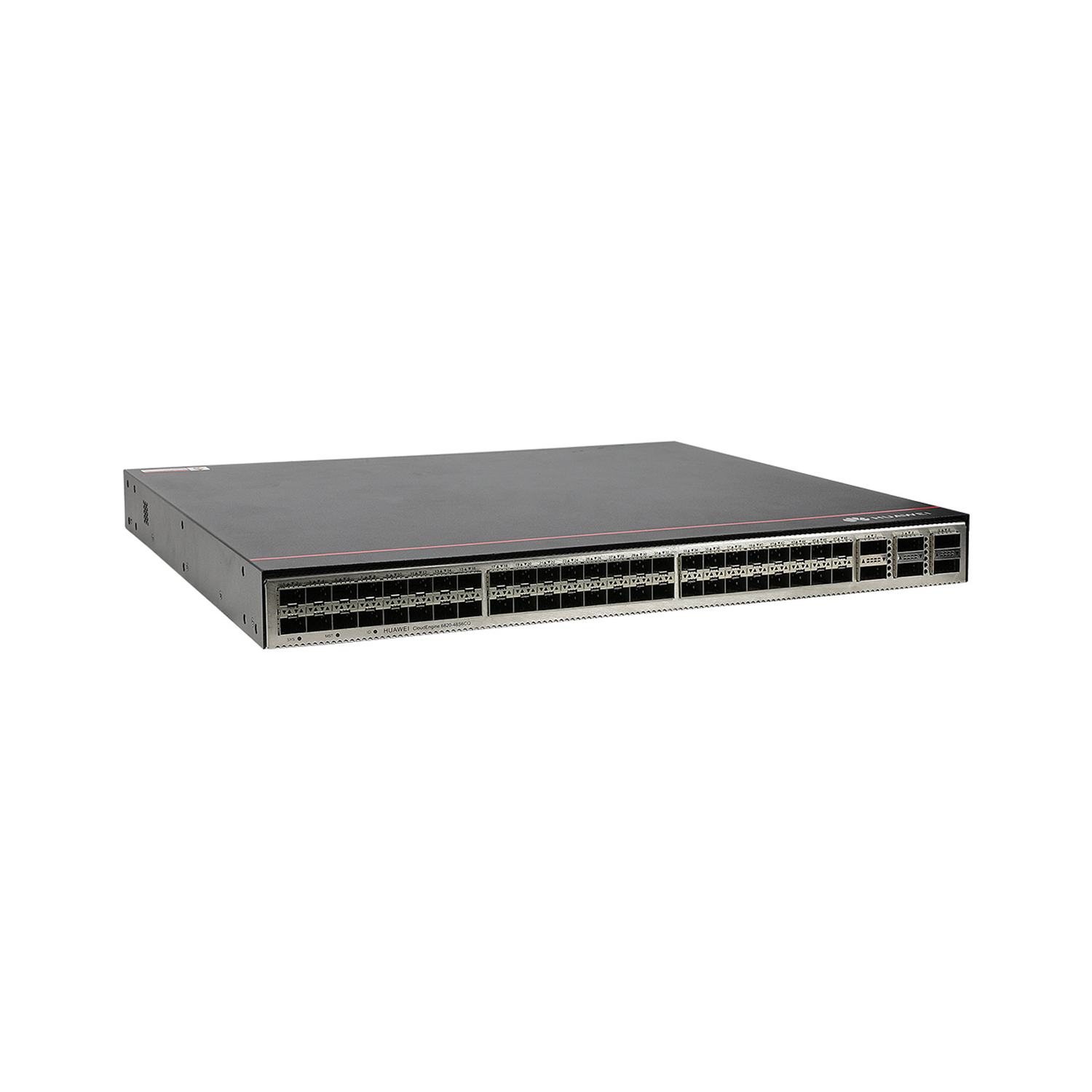

Huawei CE6820-48S6CQ-A Data Center Switch
The Huawei CloudEngine 6820‑48S6CQ‑A‑B is a fixed-configuration 1RU data center switch designed for high-performance server connectivity and flexible aggregation scenarios. It includes 48 × 10 GE SFP+ downlink ports, 6 × 100 GE QSFP28 uplink ports, dual redundant AC power modules, and 4 hot-swappable fan trays, with optimized front-port intake airflow.
Ideal for high-density data centers, it provides robust performance and advanced features including VXLAN and RoCE for modern cloud environments.
Overview
Highlights
-
Dense connectivity: 48 × 10 GE downlink + 6 × 100 GE uplink (breakout ready).
-
Robust performance: 2.16 Tbps switch capacity, 470 Mpps forwarding.
-
Data center-grade features: VXLAN/BGP‑EVPN, M‑LAG, PFC, ECN, RoCE v1/v2, ZTP, telemetry via NCE Fabric.
-
Flexible airflow: Front intake by default, reversible to rear exhaust.
-
Service-ready design: Hot-swap PSUs/fans, clear front‑panel indicators, redundancy built in.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 100 GE QSFP28 optics/DAC | Uplink Module | Supports 100/40 GE breakout |
| 10 GE SFP+ optics/DAC | Downlink Module | Adds server-facing connectivity |
| PAC600S12-CF 600 W AC PSU | Power Supply | Hot‑swappable, front power panel |
| FAN‑031A‑F Fan Tray | Cooling | Hot‑swappable, front intake fan tray |
Comparison with Similar Models
| Feature / Model | 6820‑48S6CQ‑A‑B (front intake) | 6820‑48S6CQ‑bare chassis | 6820‑48S6CQ‑F (rear airflow) |
|---|---|---|---|
| 10 GE Ports | 48 × SFP+ | 48 × SFP+ | 48 × SFP+ |
| 100 GE Uplink Ports | 6 × QSFP28 | 6 × QSFP28 | 6 × QSFP28 |
| Power Modules | 2 × 600 W AC | — | 2 × 600 W AC |
| Fan Trays | 4 × front intake | — | 4 × rear exhaust |
| Airflow Direction | Front intake (reversible) | Flexible | Rear intake |
| Switching Capacity | 2.16 Tbps | 2.16 Tbps | 2.16 Tbps |
| Forwarding Rate | 470 Mpps | 470 Mpps | 470 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 6820‑48S6CQ‑A‑B |
| Ports | 48 × 10 GE SFP+; 6 × 100 GE QSFP28 (breakouts supported) |
| Switching Capacity | 2.16 Tbps |
| Forwarding Performance | 470 Mpps |
| Packet Buffer | 21 MB |
| CPU | Quad-core 1.4 GHz |
| Memory & Storage | 4 GB DRAM, 64 MB NOR flash, 4 GB NAND |
| Fabric & Virtualization Features | VXLAN/BGP-EVPN, M-LAG, RoCE, PFC, ECN, ZTP |
| Congestion Control & QoS | AI‑ECN, WRED |
| Power Supplies | 2 × 600 W AC hot‑swappable, front intake |
| Cooling Modules | 4 × hot‑swappable fan trays |
| Typical/Max Power Consumption | 162 W typ, 282 W max |
| Noise (27 °C) | < 55 dBA (front); < 64 dBA (rear) |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight (with modules) | 7.7 kg |
| Operating Temperature | 0–40 °C (≤ 1,800 m) |
| Airflow Direction | Front intake (reversible) |
| Certifications | UL, CE, FCC, RoHS, EMC compliant |
