Description

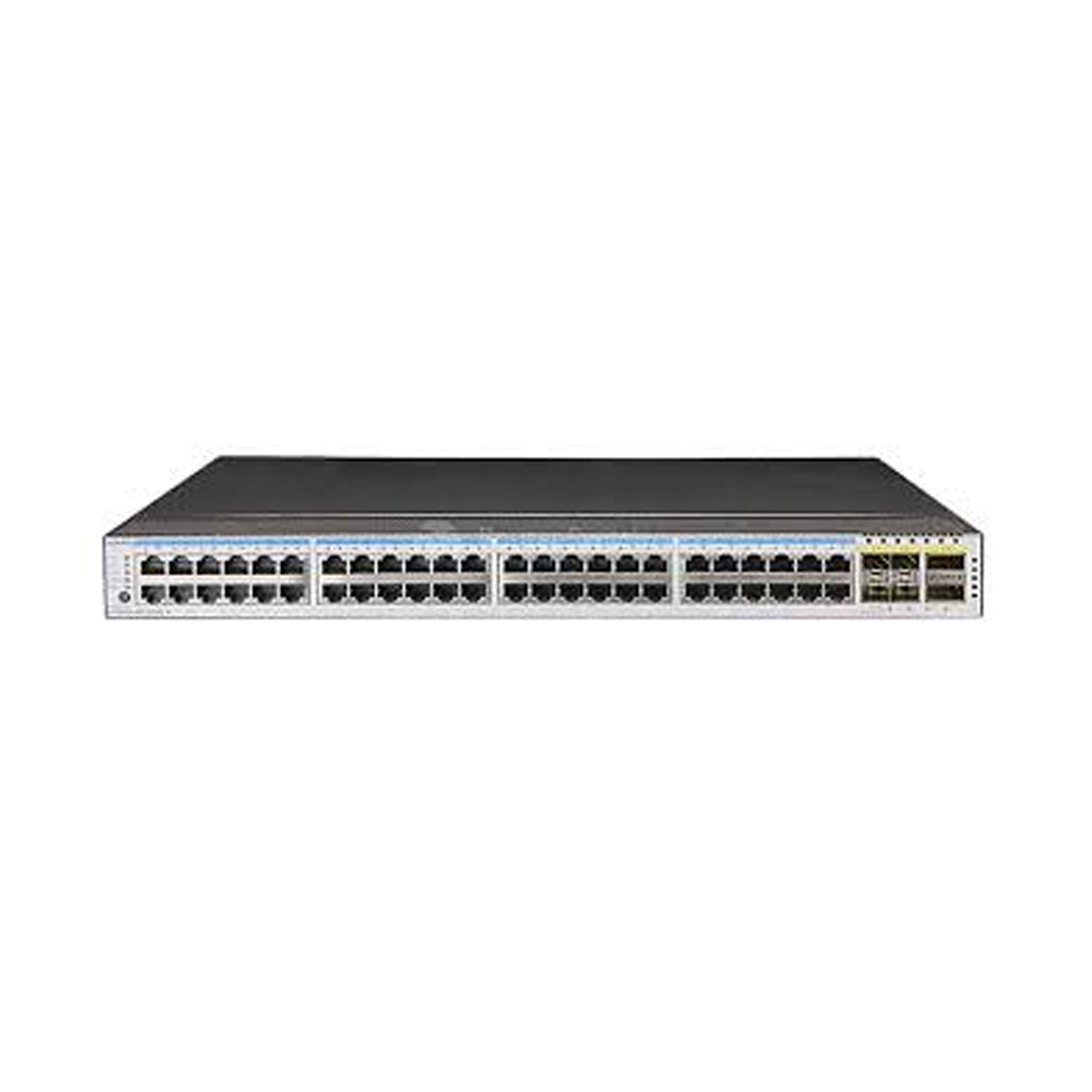

Huawei CE5855-48T4XS Aggregation Switch
The Huawei CloudEngine 5855‑48T4XS‑B is a fixed 1 RU access switch featuring 48 × 10/100/1000 GE RJ45 downlink ports, 4 × 10 GE SFP+ and 2 × 40 GE QSFP+ uplinks, with support for a 9-unit stack. It includes 2 × AC power modules and 1 hot-swappable fan tray, designed for front-port intake airflow. Based on the VRP8 platform, it offers solid performance with 336 Gbps switching capacity, 252 Mpps forwarding, and advanced features including TRILL, M‑LAG, ZTP, and NetStream.
Overview
Highlights
-
48 × 1 GE RJ45 ports plus 4 × 10 GE and 2 × 40 GE uplinks for flexible deployment.
-
336 Gbps switching capacity, 252 Mpps forwarding rate.
-
High availability stacking support for up to 9 units; redundant AC power.
-
Versatile airflow: front-to-back or back-to-front based on module types.
-
Smart fabric & O&M: TRILL, M‑LAG, ZTP, NetStream, sFlow, OPS programmability
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 10 GE SFP+ optics/DAC | Uplink Module | For uplinks or stacking |
| 40 GE QSFP+ optics/DAC | Uplink Module | High-capacity uplink or stack link |
| AC Power Module | Power Supply | Redundant, hot-swappable |
| FAN‑040A Fan Tray | Cooling | Single hot-swappable fan tray for intake airflow |
Comparison with Similar Models
| Feature / Model | 5855‑48T4XS‑B | 5855‑48T4XS‑EI (no PSUs) | 5855‑48T4XS‑F (exhaust airflow) |
|---|---|---|---|
| 1 GE Ports | 48 RJ45 | 48 RJ45 | 48 RJ45 |
| 10 GE Uplinks | 4 × SFP+ | 4 × SFP+ | 4 × SFP+ |
| 40 GE Uplinks | 2 × QSFP+ | 2 × QSFP+ | 2 × QSFP+ |
| AC Power Modules | 2 × redundant | — | 2 × redundant |
| Fan Tray | 1 × hot-swap, intake | 1 × built-in | 1 × hot-swap, exhaust |
| Airflow Direction | Front intake (reversible) | Intake | Exhaust |
| Switching Capacity | 336 Gbps | Same | Same |
| Forwarding Rate | 252 Mpps | Same | Same |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 5855‑48T4XS‑B |
| Ports | 48 × 1 GE RJ45; 4 × 10 GE SFP+; 2 × 40 GE QSFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 252 Mpps |
| Stack Capability | Up to 9 units via 10/40 GE |
| Programmability & O&M | OPS, ZTP, NetStream, sFlow, SSH, TRILL, M‑LAG |
| Power Modules | 2 × AC hot-swappable, 100–240 V |
| Cooling Module | 1 × hot-swappable fan tray, intake |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | ~8.4 kg (full config) |
| Power Consumption | 103 W max |
| Airflow Direction | Front-to-back, switchable |
