Description
Tech Specs
Chassis:
- 8 Bay SFF
- 4 Bay LFF
- 4 Non-Hotswap Bay LFF
Processor types:
- Up to one, Intel Xeon E-2300 Series or Intel Pentium G,
housing up to 8 cores and 16 Threads
Memory RAM types:
- ECC Unbuffered Memory, up to Max 32GB DDR4
- RAM Capacity: 8GB, 16GB, 32GB
- Max Configuration UDIMM: 128GB (4x32GB)
- Memory Speeds: 2133MT/s to 3200MT/s
- CPU Impacts on the available speeds RAM can run.
Storage Options 2.5" Drives
- SAS SSDs: 15.36TB @ 12GB/s
- SATA SSD: 15.36TB @ 6GB/s
- SAS HDD: 2.4TB @ 7.2K
- SAS HDD: 2.4TB @ 10K
- SAS HDD: 2.4TB @ 15K
- SATA HDD: 2TB @ 7.2K
Storage Options 3.5" Drives
- SAS SSDs: 15.36TB @ 12GB/s
- SATA SSD: 15.36TB @ 6GB/s
- SAS HDD: 18TB @ 7.2K
- SATA HDD: 18TB @ 7.2K
Power Supplies:
- Non Hot Swap 350W Gold 100 to 240 VAC or 240 HVDC
- Hot swap 500W Platinum 100 to 240 VAC or 240 HVDC
Systems Management Solutions
- Integrated Lights-out 5 (iLO 5)
Storage Controllers RAID Options:
- Smart Array S100i Software
- Smart Array E208i-p
- Smart Array E208e-p
- Smart Array P408i-p
- Smart Array P408e-p
- Smart Array P816i-a
- Broadcom MegaRAID MR216i-p
- Broadcom MegaRAID MR416i-p
Supported Operating Systems:
- Windows Server 2016: Essentials
- Windows Server 2016: Standard
- Windows Server 2016: Data Center
- Windows Server 2019: Essentials
- Windows Server 2019: Standard
- Windows Server 2019: Data Center
- Windows Server 2022: Essentials
- Windows Server 2022: Standard
- Windows Server 2022: Data Center
- Microsoft Hyper-V Server: 2016, 2019 & 2022
- VMware vSphere: 6.7 U3 w /P03, 7.0 U2
- Red Hat Enterprise Linux (RHEL): 8.6, 9.0 (64 bit, includes KVM)
- Canonical Ubuntu: 20.04 LTS (64 bit)
- SUSE Linux Enterprise Server (SLES) 15 SP4
- VMware ESXi 7.0 U3/8.0
PCIe Network Card Options:
- Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter
- Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter
- Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter
- Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter
- Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter
- Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter
- Intel X710-DA2 Ethernet 10Gb 2-port SFP+ Adapter
Network Interface Card Options (NICs)
- Up to 2 NIC ports on the LAN on motherboard (LOM) and up to 4x 25GBe ports integrated on the OCP (Open Compute Project) card
OCP Network Cards:
- Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter
- Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter
- Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter
- Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter
- Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter
- Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter
- Intel X710-DA2 Ethernet 10Gb 2-port SFP+ Adapter

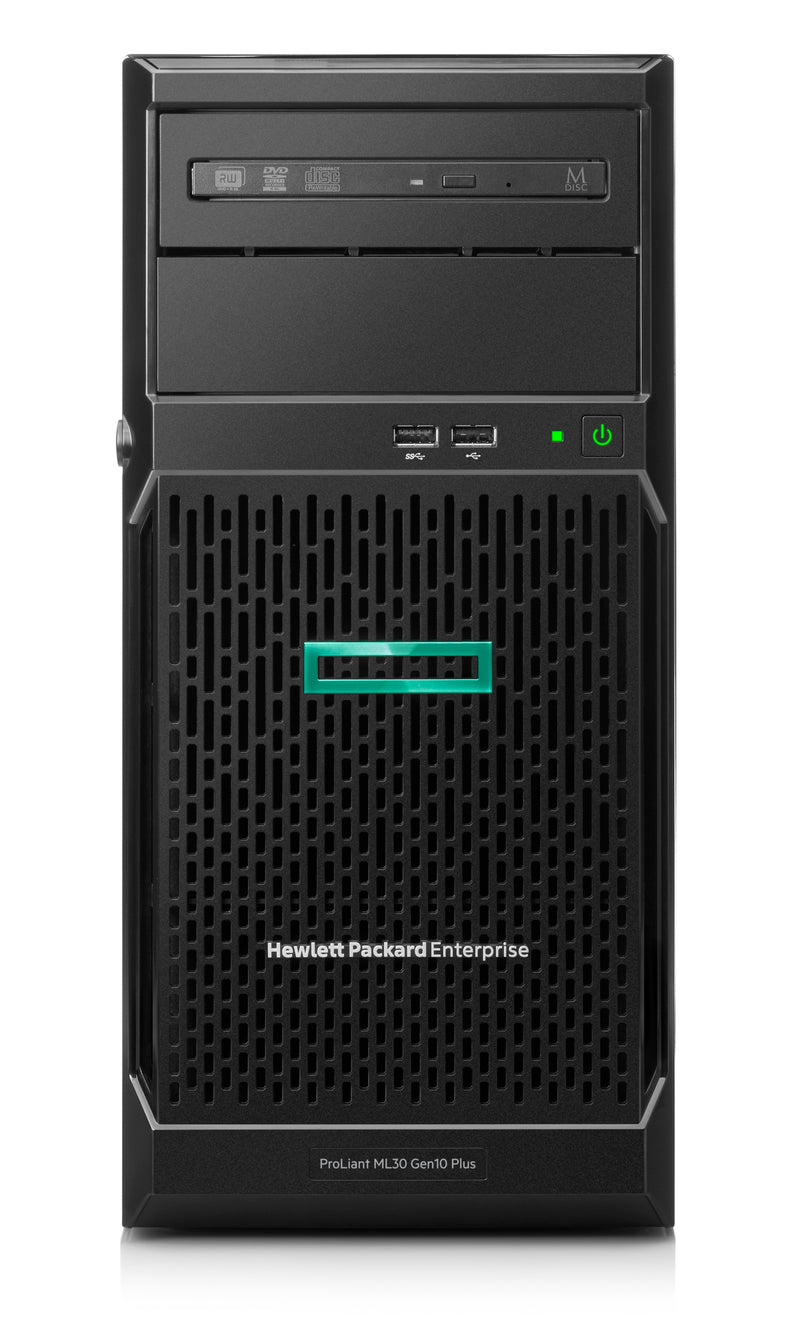

HPE ProLiant ML30 GEN10 PLUS Supported CPUs
| CPU | Step Code | Cores/Threads | Frequency |
|---|---|---|---|
| Xeon E-2388G | SRKMZ | 8C/16T | 3.2GHz |
| Xeon E-2378G | SRKN1 | 8C/16T | 2.8GHz |
| Xeon E-2378 | SRKN1 | 8C/16T | 2.6GHz |
| Xeon E-2386G | SRKN0 | 6C/12T | 3.5GHz |
| Xeon E-2356G | SRKN2 | 6C/12T | 3.2GHz |
| Xeon E-2336 | SRKN5 | 6C/12T | 2.9GHz |
| CPU | Step Code | Cores/Threads | Frequency |
|---|---|---|---|
| Xeon E-2374G | SRKN3 | 4C/8T | 3.7GHz |
| Xeon E-2334 | SRKN6 | 4C/8T | 3.4GHz |
| Xeon E-2324G | SRKN7 | 4C/8T | 3.1GHz |
| Xeon E-2314G | SRKN8 | 4C/8T | 2.8GHz |
| Pentium G6405 | N/A | 2C/4T | 4.1GHz |
HPE ProLiant ML30 GEN10 PLUS RAID Options
| RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
|---|---|---|---|---|---|
| Smart Array S100i | 0,1,5,10 | None | 6 Gb/s SATA | M/A | Software |
| Smart Array E208i-p | 0,1,5,10 | None | 6 Gb/s SATA 12GB/s SAS |
PCIe 3.0 | Hardware |
| Smart Array E208e-p | 0,1,5,10 | None | 6 Gb/s SATA 12GB/s SAS |
PCIe 3.0 | Hardware |
| Smart Array P408i-p | 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM | 2GB | 6 Gb/s SATA 12GB/s SAS |
PCIe 3.0 | Hardware |
| Smart Array P408e-p | 0, 1, 1 ADM, 5, 6, 10, 10 ADM, 50, 60 | 4GB | 6 Gb/s SATA 12GB/s SAS |
PCIe 3.0 | Hardware |
| Smart Array P816i-a | 0, 1, 1 ADM, 5, 6, 10, 10 ADM, 50, 60 | 4GB | 6 Gb/s SATA 12GB/s SAS |
PCIe 3.0 | Hardware |
| Broadcom MegaRAID MR216i-p | 0, 1, 10 | 4GB | 12 Gb/s SAS 6GB/s SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
| Broadcom MegaRAID MR416i-p | 0, 1, 5, 6, 10, 50, 60 | None | 12 Gb/s SAS 6GB/s SAS/SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
