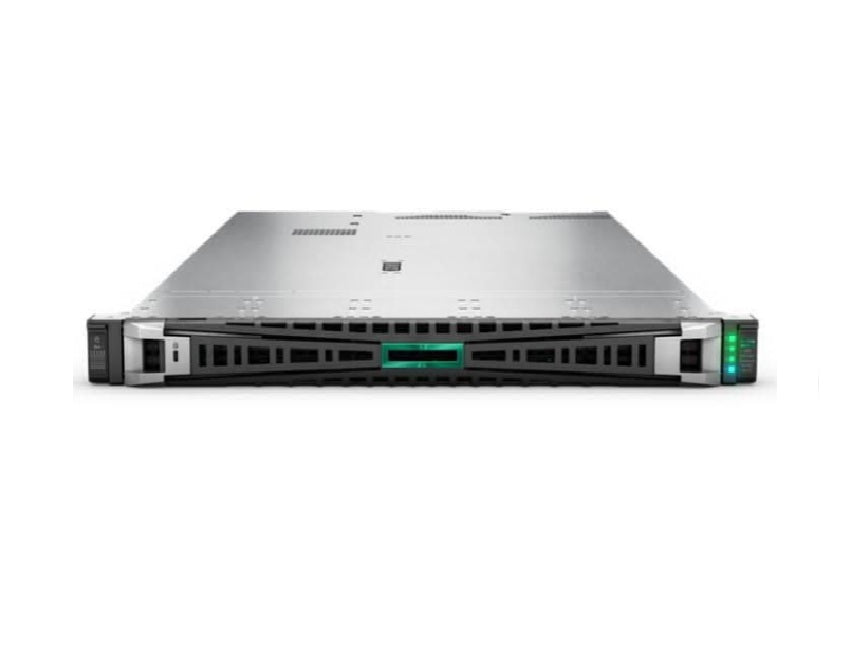

The HPE ProLiant DL360 Gen12 (P89196-005) is a compact 1U rack server optimized for general-purpose compute, virtualization, and hybrid cloud workloads. It features the latest Intel Xeon 6 architecture and high-speed DDR5 memory.
Specifications
Model Number: P89196-005
Brand: HPE
Alt Part Number(s): P89196-005
Product Type: Server
Technical Description
Brand: HPE
Model: P89196-005
Series: ProLiant Compute DL360 Gen12
Processor Type: Intel Xeon 6 (6505P) Supports Up to 2 Processors
Processor Speed: 2.2GHz (4.10GHz turbo)
Processor Core: 12 Core / 24 Threads
Processor Power TDP: 150W
Processor Cache: 48MB L3 Cache
Storage: 2 × 480 GB SSD (total ~960GB) SAS / SATA / NVMe drives
Network Controller: Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
Primary Controller: MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM
Drive bays: ~8 (2.5") hot-swap bays
RAID support: 0, 1, 5, 6, 10, 50, 60
Memory Type: DDR5 Registered (RDIMM)
Memory Installed: 64GB Pre-installed
Memory Supported: 4TB (16 x 256GB Single Processor) 8TB (32 x 256GB Dual Processors)
Memory Slot: 32 DIMM Slot
Expansion Slots: Maximum of 3 PCIe Gen5 slots and 2 OCP 3.0 slots
Power Supplies: 2 x 800W Flex Slot 80 PLUS Platinum Hot Plug
Cooling Fans: 5 x Standard Fans included
Form Factor: 1U Rackmount
