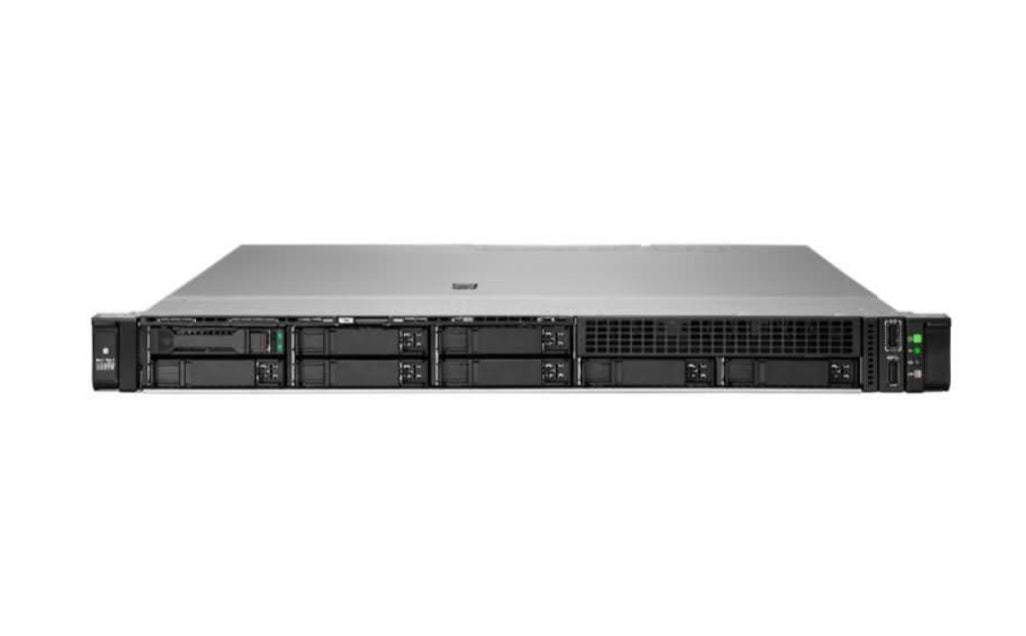

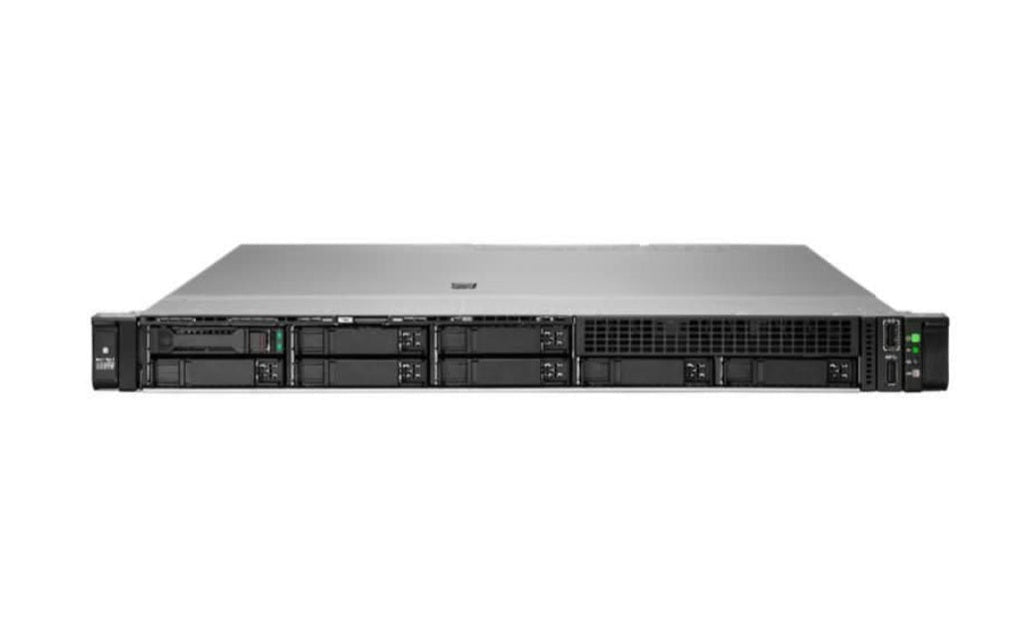

The HPE ProLiant DL320 Gen12 (P87790-005) is a 1U single-socket rack server designed for cost-effective, high-density compute workloads. Unlike the dual-socket DL360 or ML350 models, the DL320 Gen12 is a 1-way (single-socket) platform optimized for virtualization, cloud-native applications, and scale-out environments.
Specifications
Model Number: P87790-005
Brand: HPE
Alt Part Number(s): P87790-005
Product Type: Server
Technical Description
Brand: HPE
Model: P87790-005
Series: ProLiant DL320 Gen12
Processor Type: 1 x Intel Xeon 6 (6505P)
Processor Speed: 2.2GHz (4.1GHz Turbo)
Processor Core: 12 Core / 24 Threads
Processor TDP: 150W
Processor Cache: 48MB L3 Cache
Network Controller: Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
Included drives: 2 × 480 GB SATA SSD (960GB total)
Drive bays: 8 × SFF hot-swap bays
Controller: MR408i-o RAID controller
Graphics Controller: ASPEED AST2600 BMC
RAID levels: 0, 1, 5, 6, 10, 50, 60
Memory Type: DDR5-6400
Memory Installed: 64GB pre-installed
Memory Supported: 4TB (16 × 256GB RDIMM)
Memory Slot: 16 DIMM Slot
Expansion Slot: Up to 6 × PCIe Gen5, Up to 6 × PCIe Gen5
Power Supply: 2 × 1000W 80 PLUS Titanium redundant PSUs
Cooling Fans: 7 x High Performance Fan Kits
Form Factor: 1U Rackmount
