[shortdesc]
- Switch
- L3
- Managed
- 24 x 10/100/1000 (PoE+) + 24 x 10/100/1000 + 4 x 100/1000 SFP
- Desktop
- Rack-mountable
- Wall-mountable
[/shortdesc]
[specifications]
| Product Description |
HPE OfficeConnect 1920S 48G 4SFP PoE+ 370W Switch |
| Ports |
(24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports
(24) RJ-45 auto-negotiating 10/100/1000 ports
(4) SFP 100/1000 Mbps ports |
| Latency |
100 Mb Latency: < 7 µs
1000 Mb Latency: < 2.0 µs |
| Throughput |
Up to 77.3 Mpps |
| Routing/switching capacity |
104 Gbps |
| Management features |
Web browser
SNMP
IEEE 802.3 Ethernet MIB |
| Input voltage |
390.8W (maximum), 23.8W (idle) |
| Power consumption |
481W (maximum), 54.8W (idle) |
| Product dimensions (H x W x D) |
17.42 x 12.7 x 1.73 in |
| Weight |
9.7 lb |
[/specifications]

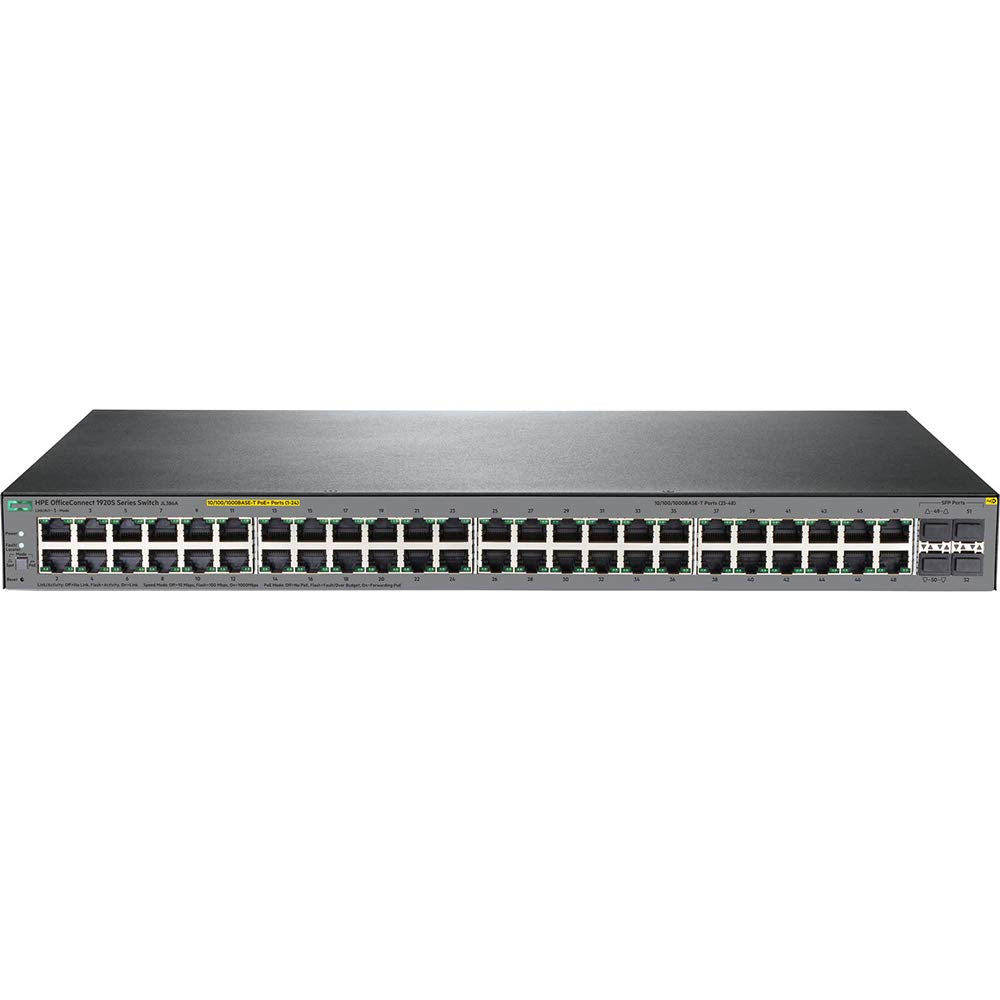

HPE OfficeConnect 1920S 48G 4SFP PoE+ 370W Switch (JL386A)
The HPE OfficeConnect 1920S Switch Series is ideal for small businesses that require advanced features to manage and configure their networks easily. These smart-managed Gigabit switches provide strong performance for applications that demand high bandwidth. The HPE OfficeConnect 1920S 48G 4SFP PoE+ 370W Switch (JL386A) includes 48 Gigabit ports, PoE+ capability, and SFP slots for fiber connectivity.
Key Features:
- Web GUI
- 370 W PoE+ power budget
- IEEE 802.3x Flow Control
For detailed specifications, refer to the JL386A datasheet in the tabs above.
