[properties]

Properties	HPE Aruba Instant On 1830 48G 4SFP Switch (JL814A)
Description	Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports.
Product Family	Aruba Instant On 1830 Switch Series
Product Type	Switch
Key Features:	• Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models. • Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments. • Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. • Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. • Option to manage your switches through local web GUI. • Non-PoE model designed for cost-effective environments that don’t require PoE.

[/properties] [specifications]

Specifications	HP Aruba 1830 48G 4SFP Switch (JL814A)
Ports	48 RJ-45 10/100/1000 ports, 4 SFP 1GbE ports
Memory and processor	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash packet buffer: 1.5 MB
Throughput	77.37 Mpps
Switching capacity	104 Gbps
PoE capability	No
Management features	HPE Networking Instant On Cloud Web browser SNMP Manager
Input voltage	100 - 240 VAC
Operating temperature	0-40°C, 0-10,000 ft
Power consumption	Maximum: 100-127V: 40.2W 200-220V: 40W Idle: 100-127V: 17.7W 200-220V: 17.7W
Reliability MTBF (years)	114.4
Product dimensions	25.30 x 44.30 x 4.39 cm (9.96 x 17.44 x 1.73 in)
Weight	3.54 kg (7.80 lb)

 [/specifications]

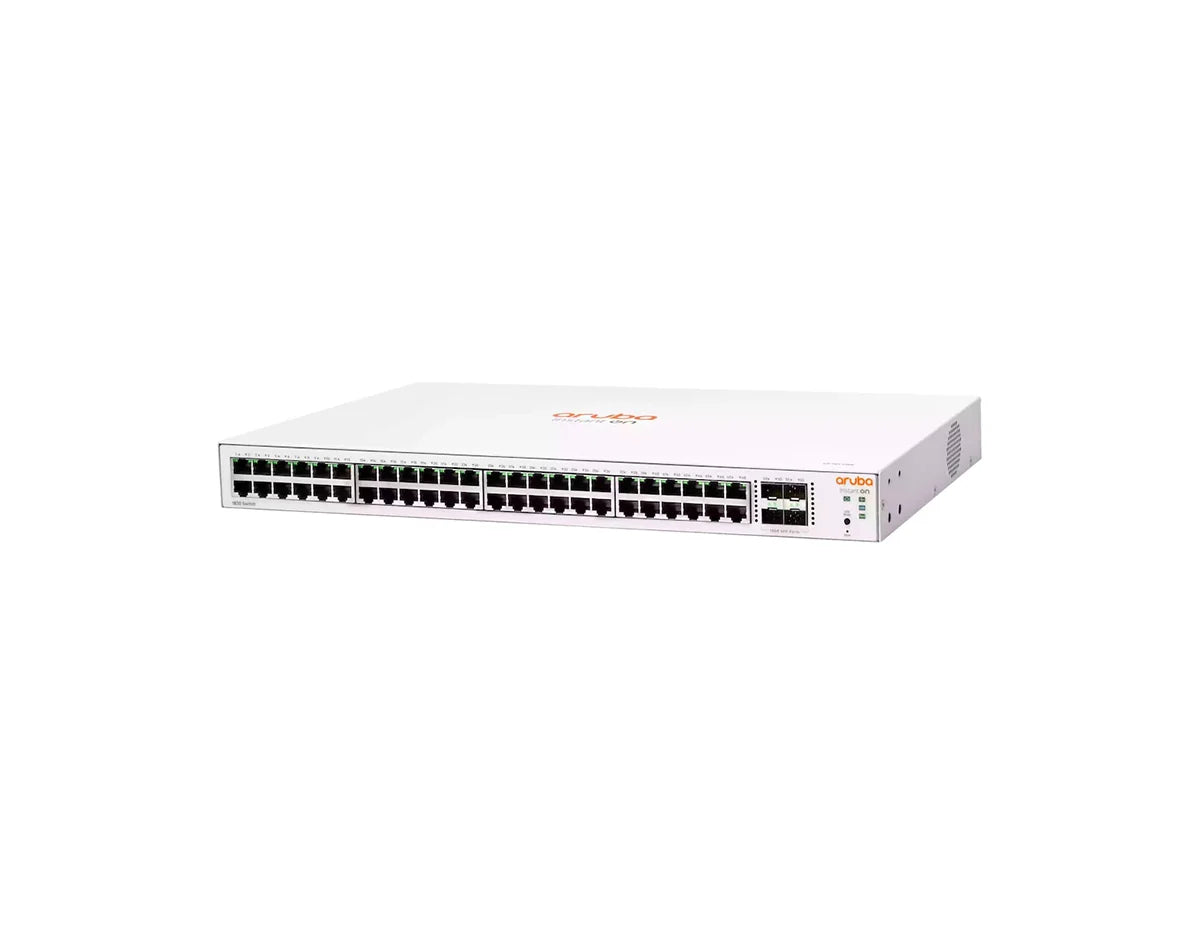

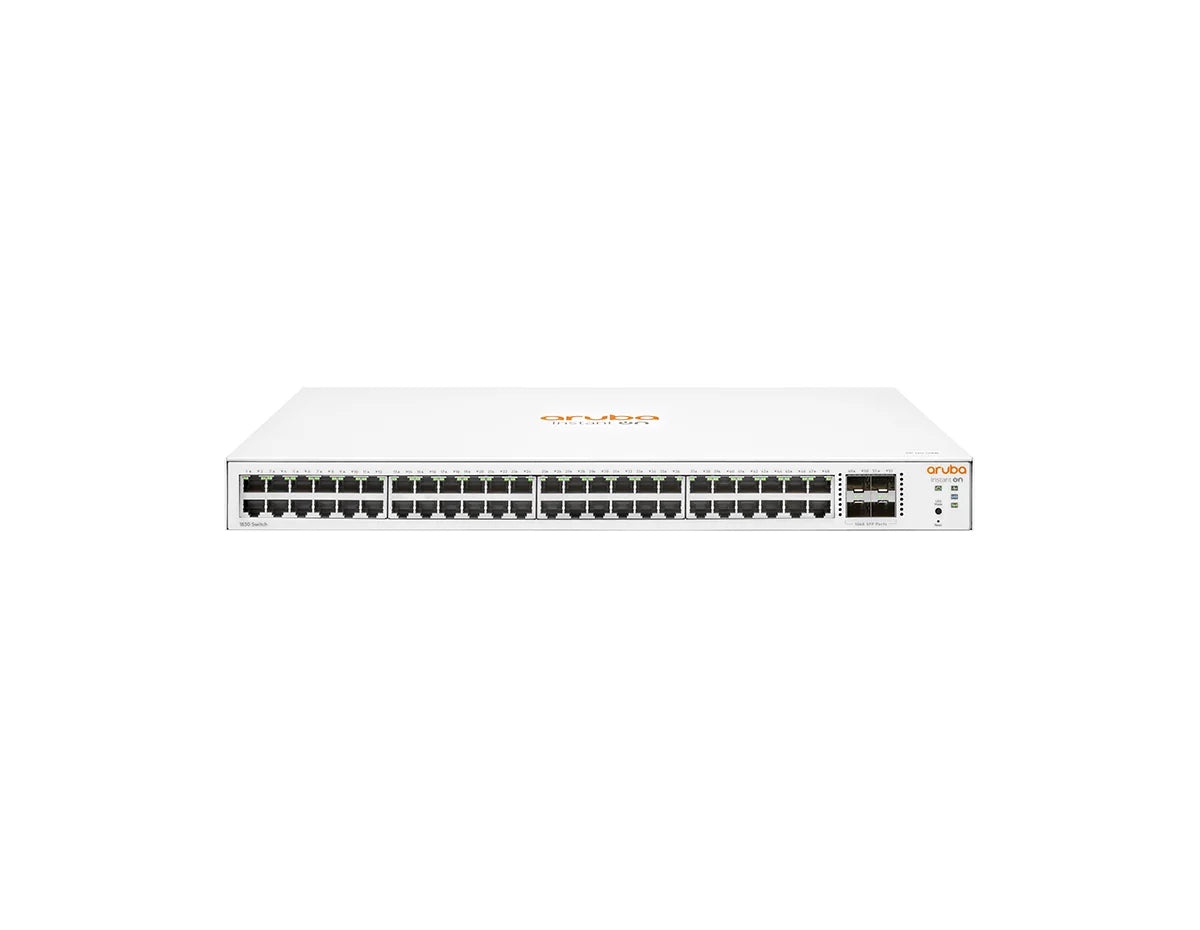

HPE Aruba 1830 48G 4SFP Switch (JL814A)

The HPE Aruba Instant On 1830 48G 4SFP Switch (JL814A) is a smart-managed Layer 2 Gigabit switch designed for small businesses, branch offices, and retail environments. With 48 RJ-45 Gigabit ports and 4 dedicated SFP uplink ports, it delivers reliable, high-speed connectivity at an affordable price.

This non-PoE model provides silent, fanless operation — ideal for noise-sensitive deployments such as classrooms, small offices, and retail shops. With cloud-based or local web GUI management, setup and monitoring are simple and flexible.

Key Features:

• 48 x 1GbE Ports: Delivers fast and reliable connections for a variety of devices, ensuring smooth data flow.
• 4 x SFP Uplink Ports: Provides high-speed uplink capabilities for connecting to other switches or network backbones.
• Cloud-Based Management: Easily set up and monitor your network through the Aruba Instant On mobile app or web-based GUI.
• Silent Operation: Fanless design is ideal for noise-sensitive environments.
• Energy Efficient: Compliant with IEEE 802.3az standards, reducing energy consumption during periods of low activity.

Technical Overview:

• Recommended for: Small businesses, retail environments, and branch offices.
• Ports: 48 x 1GbE, 4 x 1GbE SFP uplinks.
• Switching Capacity: 104 Gbps.
• Forwarding Rate: 77.37 Mpps.
• Management: Managed through Aruba Instant On cloud or local web-based GUI.
• Energy Efficiency: Supports IEEE 802.3az for energy-saving operation.

You can check the related tab for the JL814A datasheet.
