[shortdesc]Add four multi-gig Aruba Smart Rate ports with PoE+ to Aruba 3810M or 2930M for high-speed APs and edge devices.[/shortdesc]
[properties]
| Product Name |
JL081A |
| Description |
Aruba 3810M 4-port HPE Smart Rate PoE+ Module |
| Module Type |
Smart Rate PoE+ expansion module |
| Total Ports |
4 × HPE Smart Rate (1G/2.5G/5G/10G) |
| PoE Support |
PoE+ (802.3at) up to 30W per port |
| Compatibility |
Aruba 3810M |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Humidity |
5% to 95% non-condensing |
| Dimensions |
7.4 × 13 × 2.5 cm |
| Weight |
199.6 g |
| Mounting |
Hot-swappable into Aruba 3810M |
[/properties] [specifications]
| Data Rates |
1G / 2.5G / 5G / 10G per port |
| PoE Budget |
30W per port (802.3at) |
| Power Consumption |
Up to 125W with full PoE+ load |
| MTBF |
>1,000,000 hours (25°C) |
| Certifications |
CE, FCC, RoHS |
| EMC |
EN 55032, EN 55024, CISPR 32, FCC Part 15 |
| Environmental |
RoHS 3, low-halogen design |
| Indicators |
Status LEDs for link/activity and power |
| Security |
802.1X access control (via switch) |
| Advanced |
QoS, VLAN tagging, link aggregation |
[/specifications]

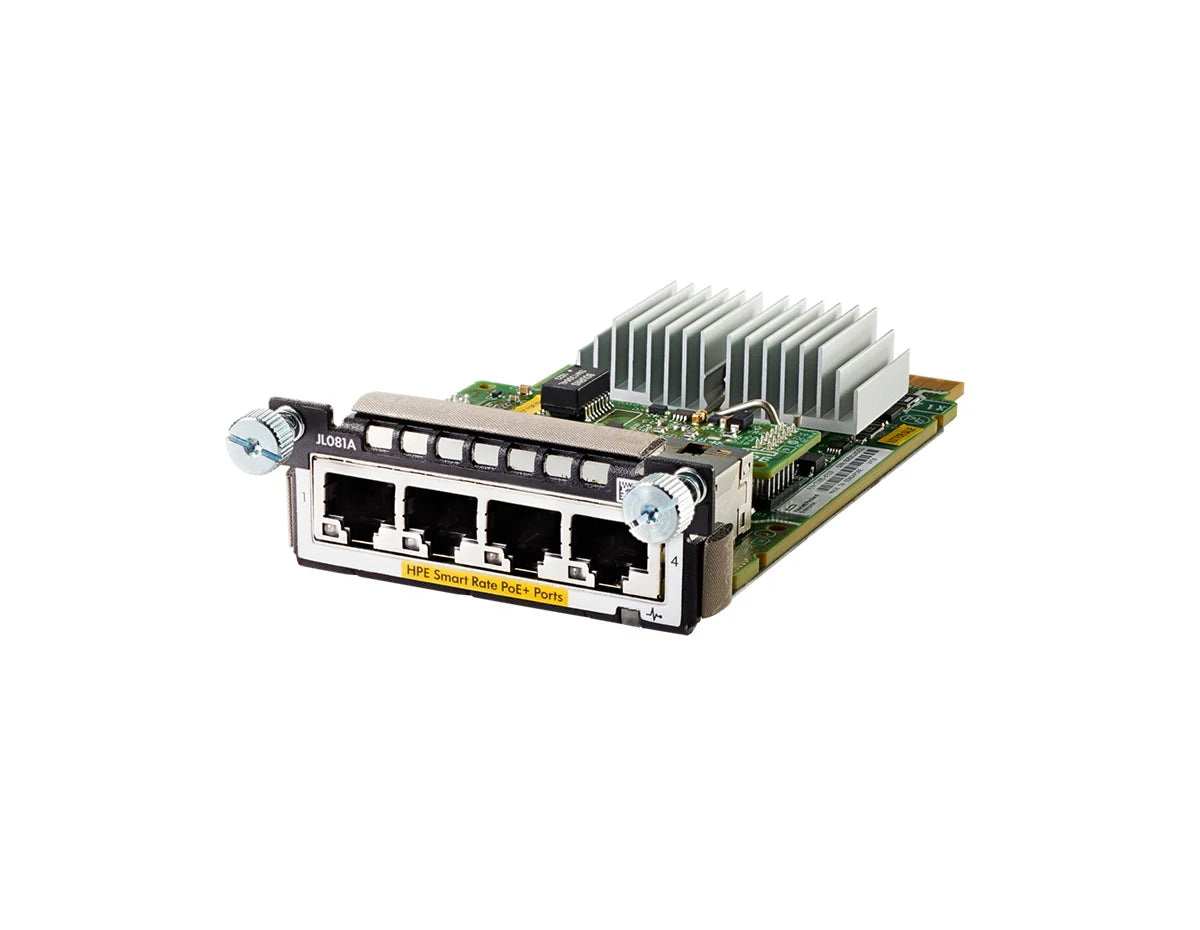

HPE Aruba JL081A 4 Port Smart Rate PoE+ Module
The JL081A adds four multi-gig copper ports with PoE+ to Aruba 3810M or 2930M, boosting edge bandwidth for APs and high-traffic devices.
Key Features
- 4× Smart Rate 1G/2.5G/5G/10G PoE+
- Hot-swap module for Aruba 3810M 2930M
- 30W per port PoE+ for APs and IoT
- QoS, VLAN, LACP for performance
Technical Specifications
- Operating 0°C–45°C, 5%–95% RH
- Dimensions 7.4 × 13 × 2.5 cm
- Weight 199.6 g
- Compliance CE FCC RoHS
