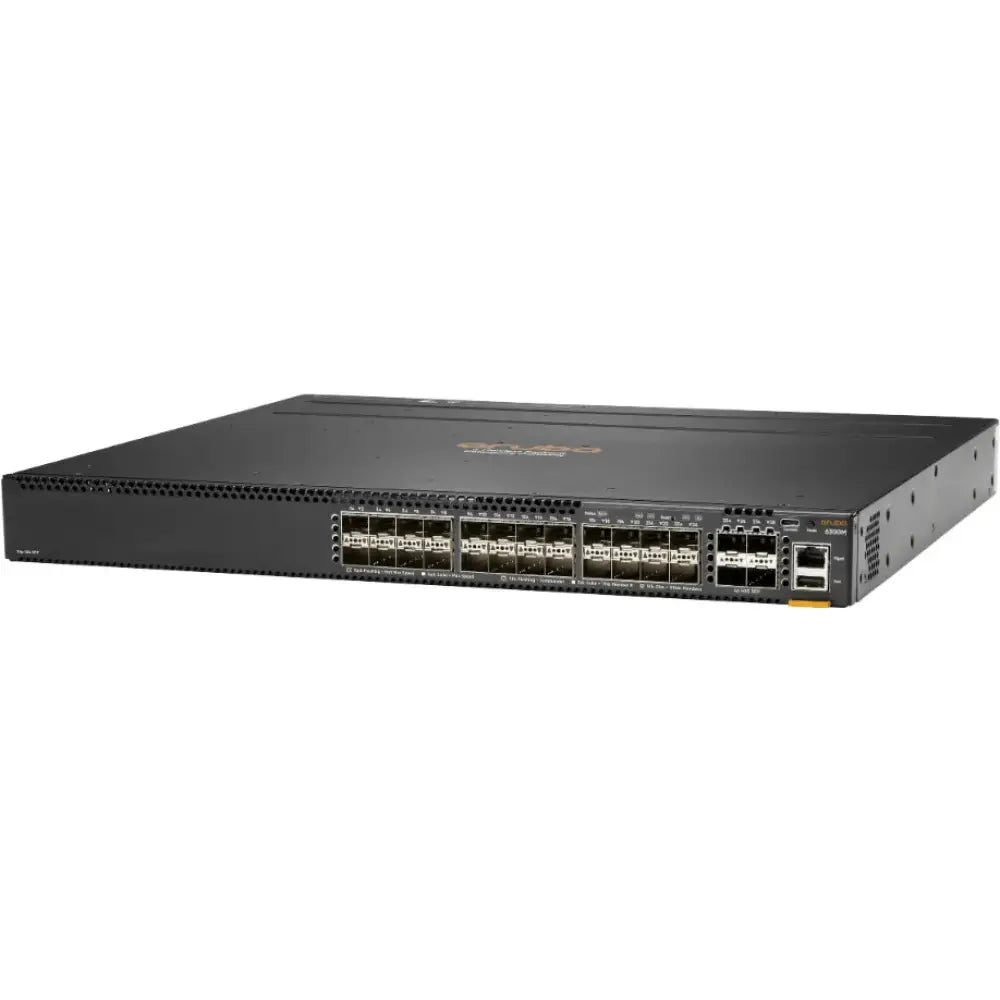

HPE Aruba Networking CX 6300M 24-Port SFP+ and 4-Port SFP56 Switch (JL658A)
Save on the HPE Aruba CX 6300M — a high-performance, stackable Layer 3 switch built for enterprise access, aggregation, and data center top-of-rack (ToR) deployments. Backed by Reef Telecom's 10-year warranty and free shipping on orders over $300.
Key Specifications
-
Ports: 24x 1G/10G SFP+ ports, 4x 1G/10G/25G/50G SFP56 uplink/stacking ports
-
Performance: 880 Gbps switching capacity, 654 Mpps throughput, 200 Gbps stacking bandwidth
-
Processor: Quad-Core ARM Cortex A72 @ 1.8 GHz, 8 GB DDR4, 32 GB eMMC
-
Layer 3 Routing: BGP, OSPF, EVPN, VXLAN, VRF with MACsec 256 encryption
-
Stacking: Up to 10-member Virtual Stacking Framework (VSF) for simplified management
-
Management: Aruba Central, Network Analytics Engine (NAE), CLI, Web GUI, REST API
-
Form Factor: 1U rack-mountable with front-to-back airflow, hot-swappable PSU slots (PSU sold separately)
-
Condition: New
Ideal Use Cases
The Aruba CX 6300M is designed for enterprise campus access layers, aggregation, and data center ToR environments requiring high-density 10GbE SFP+ connectivity with 25G/50G uplinks. Supports Aruba Dynamic Segmentation for role-based security across wired and wireless networks.
Note: Power supply (JL085A or JL757A) required and sold separately. Fan trays included.
