[shortdesc] 24× 10/100/1000BASE-T, 4× 1G/10G SFP+ uplinks, 128 Gbps switching, 95.2 Mpps, AOS-CX OS, fixed power [/shortdesc]
[properties]
| Brand |
HPE Aruba Networking |
| Series |
CX 6100 |
| Model |
JL678A |
| Product Name |

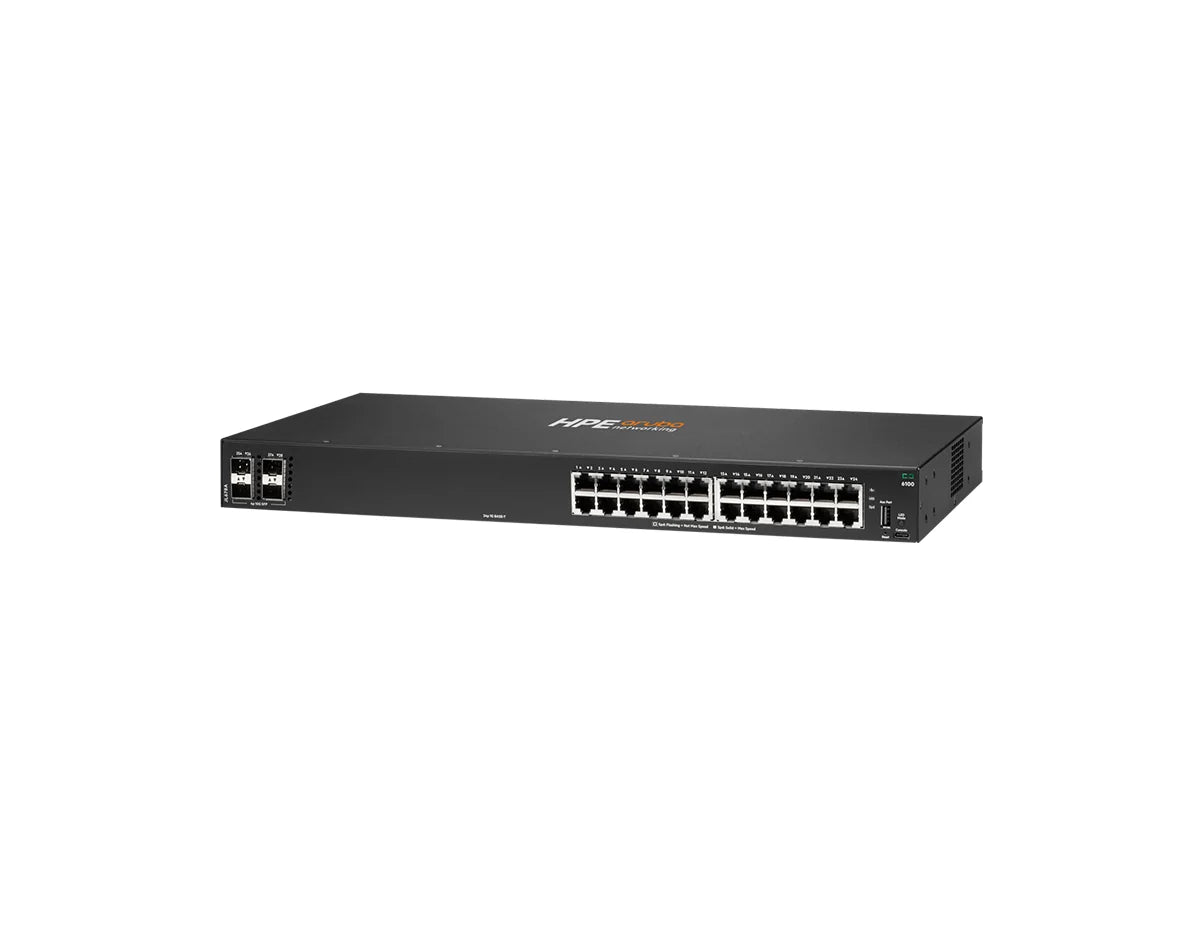

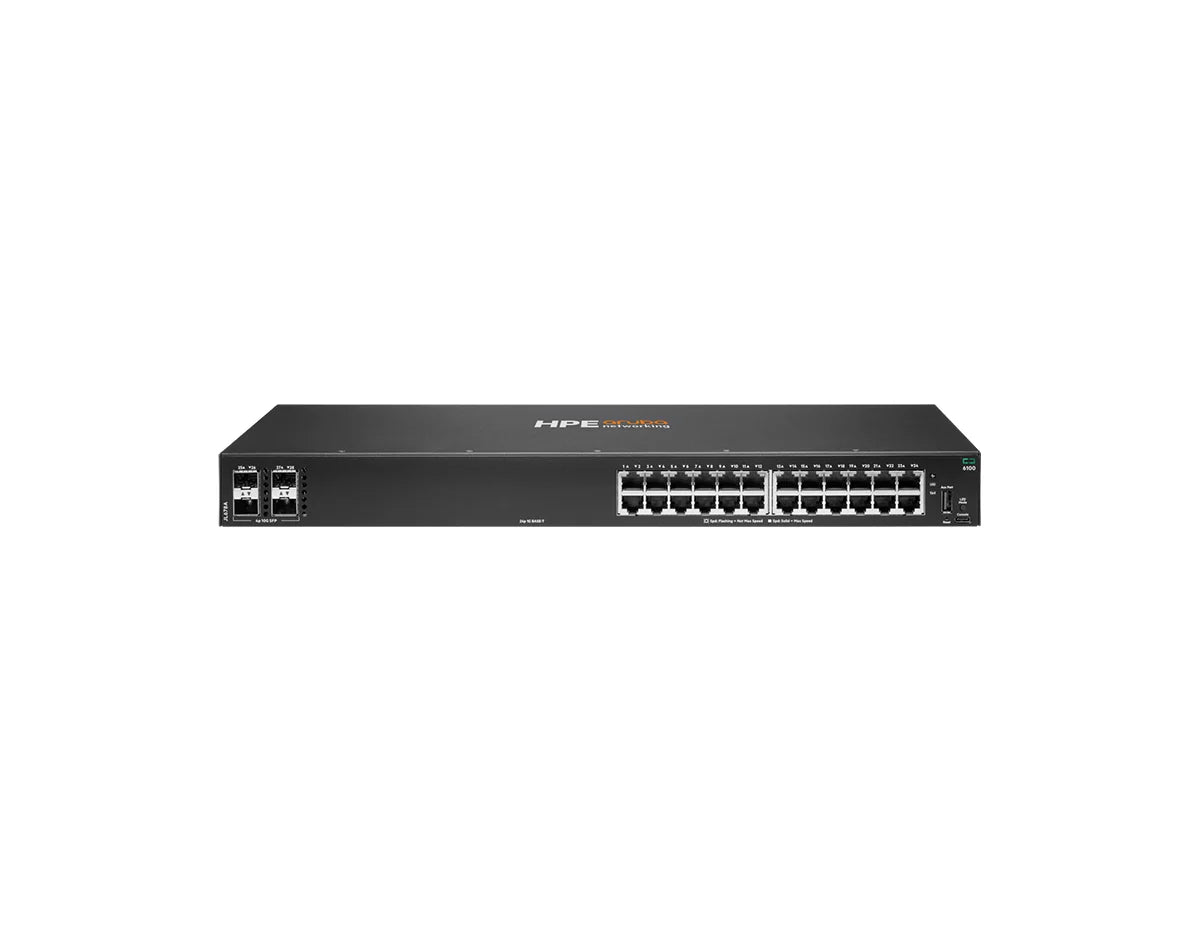

HPE Aruba Networking CX 6100 24G 4SFP+ Switch |
| Product Type |
Layer 2 Access Switch |
| Ports (RJ-45) |
24 × 10/100/1000BASE-T |
| Uplinks |
4 × 1G/10G SFP+ |
| Switching Capacity |
128 Gbps |
| Throughput |
95.2 Mpps |
| Latency |
1.5 μs (1G), 1.8 μs (10G) |
| Operating System |
AOS-CX |
| Form Factor |
1U; fixed power supply; fixed fans |
| Input Voltage |
100–127 VAC / 200–240 VAC |
| Max Power (w/o PoE) |
33 W |
| Dimensions (H × W × D) |
4.4 × 44.2 × 20.1 cm |
| Weight |
2.6 kg |
[/properties]
[specifications]
| Management & Automation |
Aruba Central, Switch Multi-Edit, Web GUI, industry-standard CLI, REST APIs |
| Layer 2 / Networking Features |
Static routing, ACLs, robust QoS, traffic prioritization, sFlow, IPv6 |
| Console / USB |
1 × USB-C console; 1 × USB Type-A host |
| Memory & Processor |
Dual-core ARM Cortex-A9 @ 1016 MHz; 4 GB DDR3; 16 GB eMMC |
| Switching Capacity |
128 Gbps |
| Throughput |
95.2 Mpps |
| Latency |
~1.5 μs (1G); ~1.8 μs (10G) |
| Power Supply / Cooling |
Fixed power supply; fixed fans |
| Input Voltage |
100–127 VAC / 200–240 VAC |
| Max Power (w/o PoE) |
33 W |
| Dimensions / Weight |
4.4 × 44.2 × 20.1 cm; 2.6 kg |
[/specifications]
[accesories]
| Optional |
Transceivers |
| Optional |
Mounting / Cables |
[/accesories]
Efficient Layer 2 Access with 10G Uplinks for Modern Edge
The HPE Aruba Networking CX 6100 24G 4SFP+ Switch (JL678A) delivers reliable Gigabit access with built-in 1/10GbE uplinks and the programmable AOS-CX operating system. Designed for branch, mid-market, and SMB deployments, it provides low latency, robust QoS, and simplified operations to keep users and devices connected securely and consistently.
Key Benefits & Features
-
Built-in high-speed uplinks: Four 1/10GbE SFP+ ports remove access-layer bottlenecks for APs, servers, and uplink aggregation.
-
AOS-CX consistency: Shared OS across Aruba CX switches streamlines configuration, troubleshooting, and lifecycle operations.
-
Enterprise L2 capabilities: Static routing, ACLs, sFlow, IPv6, and robust QoS enable secure and predictable performance.
-
Low-latency hardware: Dedicated ASIC with very low forwarding latency and ample buffering for busy edge networks.
-
Flexible management: Aruba Central, Multi-Edit, intuitive Web GUI, standard CLI, and REST APIs fit your ops model.
Ideal Use Cases
- Branch and retail access layers needing reliable Gigabit with simple operations
- SMB wiring closets consolidating user, AP, and IoT device connectivity
- Departmental or edge switch for campus networks with 10G uplinks
- Cost-effective refresh from unmanaged/legacy gear to managed L2
Technical Specifications
-
Ports: 24× 10/100/1000BASE-T, 4× 1G/10G SFP+ uplinks
-
Switching Capacity: 128 Gbps
-
Throughput: 95.2 Mpps
-
Latency: ~1.5 µs (1G), ~1.8 µs (10G)
-
OS: HPE Aruba Networking AOS-CX
-
Management: Aruba Central, Multi-Edit, Web GUI, CLI, REST APIs
-
Power Consumption (max, w/o PoE): 33 W
-
Form Factor: 1U fixed-power, fixed-fan chassis
-
Dimensions (H×W×D): 4.4 × 44.2 × 20.1 cm
-
Weight: 2.6 kg
Upgrade your edge with CX 6100 performance today
Deliver dependable Gigabit access and 10G uplinks with streamlined operations—order now.
