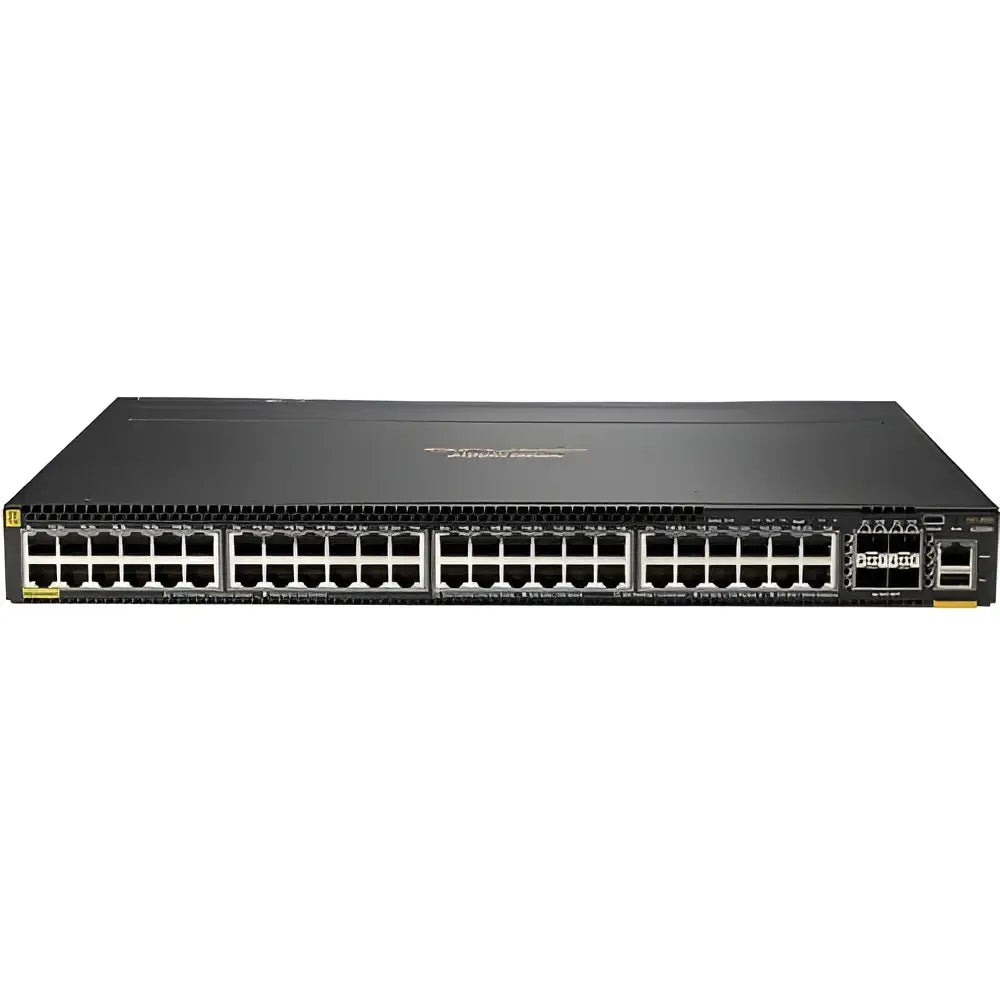

HPE Aruba CX 6300M 48-Port Smart Rate PoE Switch (JL659A)
Save thousands over list price on the HPE Aruba 6300M JL659A — a high-performance, stackable Layer 3 switch built for enterprise access, aggregation, and data center top-of-rack deployments. Backed by Reef Telecom's industry-leading 10-year warranty and free shipping on orders over $300.
Key Specifications
-
48 HPE Smart Rate Ports: Multi-gigabit 100M/1G/2.5G/5GbE with Class 6 PoE (IEEE 802.3bt) delivering up to 60W per port and 2,880W total PoE budget
-
4 SFP56 Uplinks: High-speed 1/10/25/50GbE connectivity for backbone and stacking
-
880 Gbps Switching Capacity: Non-blocking performance with ~654 Mpps forwarding rate powered by Aruba Gen7 ASIC
-
Advanced Layer 3 Routing: BGP, OSPF, EVPN, VXLAN, VRF, MACsec-256, PTP, and AVB support
-
Stacking (VSF): Stack up to 10 switches via Virtual Stacking Framework with up to 200 Gbps stacking bandwidth
-
Cloud Management: Managed via Aruba Central, CLI, Web GUI, SNMP, and Aruba Network Analytics Engine
-
Dynamic Segmentation: Role-based policy enforcement for enhanced security across wired, wireless, and WAN
-
Form Factor: 1U rack-mountable with hot-swappable power supplies and fans
Ideal Use Cases
The Aruba CX 6300M is the perfect fit for enterprise campus access layers, high-density Wi-Fi 6/6E AP deployments, IoT environments requiring high-power PoE, and data center top-of-rack switching. Its AOS-CX cloud-native operating system and programmable architecture ensure your network is ready for tomorrow's demands.
