Description

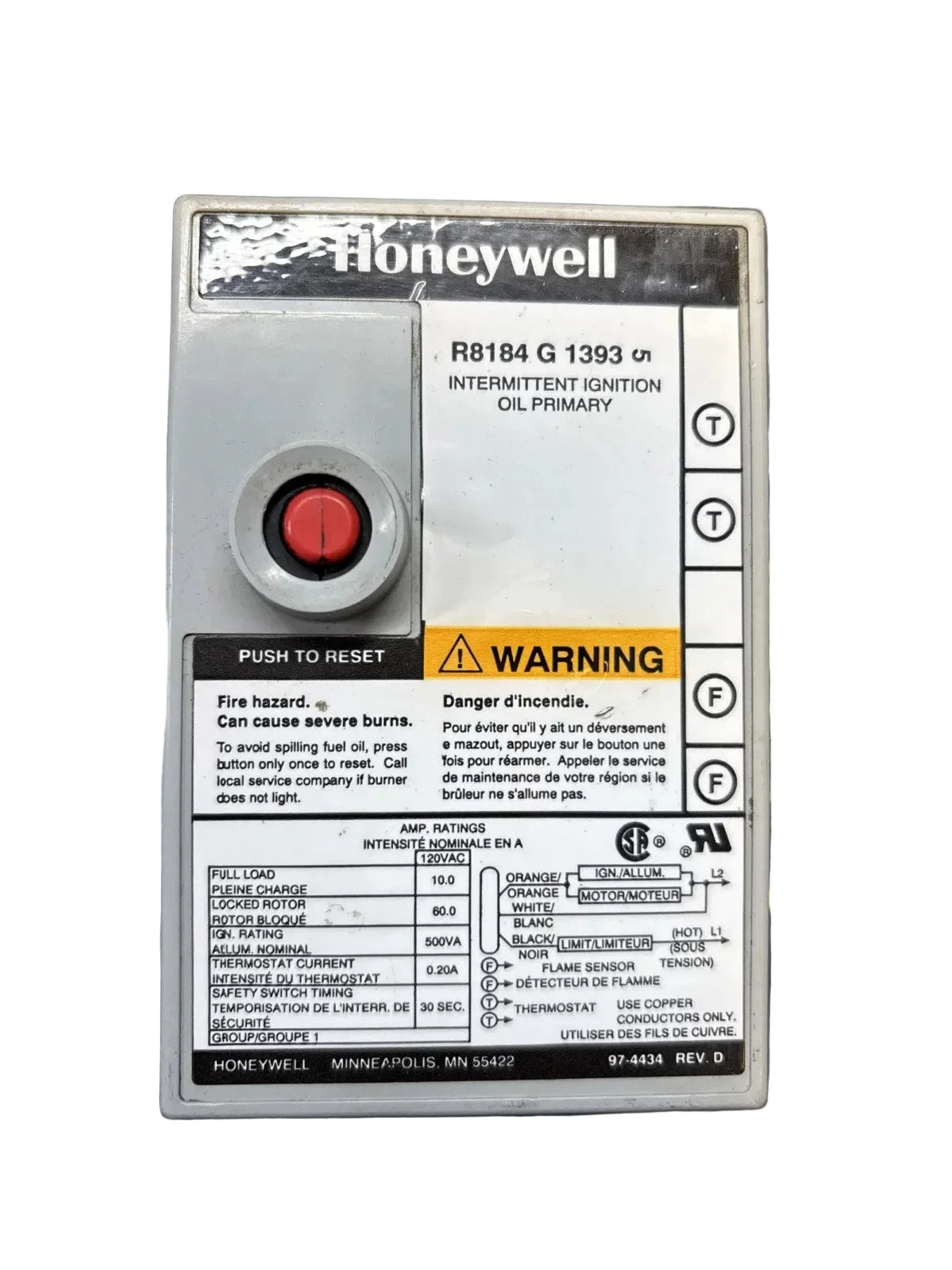

The Honeywell R8184G1393 is a solid-state oil burner control designed for reliable ignition management and flame monitoring in residential and light commercial heating systems. This control operates on 120V and features a 30-second safety timing, ensuring safe burner startup and shutdown. It integrates flame rectification technology to accurately detect flame presence and maintain efficient combustion control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Combustion Control |
| Part Number |
R8184G1393 |
| Subcategory |
Oil Burner Controls |
| Input Voltage |
120 VAC |
| Safety Timing |
30 Seconds |
| Flame Detection Type |
Rectification (Flame Rectifier) |
| Flame Signal Range |
0.0 to 5.0 VDC |
| Flame Failure Response Time |
2.0 to 3.0 Seconds |
| Compatibility |
Honeywell 7800 Series Relay Modules |
| Mounting Type |
Plug-In via Edge Connector |
| Diagnostics |
Flame Signal Test Jacks |
| Self-Check Function |
Dynamic Electronic Self-Check |
| Approvals |
UL Listed, CSA Certified |
| Color Identification |
Green Label |
| Application |
Oil Burner Control Systems |
| Weight |
1.2 lbs |
Information About R8184G1393
The R8184G1393 is a plug-in oil burner control module engineered for use with Honeywell 7800 Series relay systems and compatible flame detection components. It incorporates solid-state circuitry for improved durability, consistent performance, and enhanced safety in burner management applications. The unit supports rectification-based flame detection, providing accurate monitoring of flame signal strength within a defined voltage range. Designed for heating systems requiring dependable ignition control, it is commonly used in oil-fired furnaces, boilers, and industrial burner assemblies.
Key Features:
- Solid-State Control Design: Provides reliable operation with minimal mechanical wear and increased lifespan
- 120V Operation: Compatible with standard power supplies in heating system installations
- 30-Second Safety Timing: Ensures controlled ignition sequence and safe burner startup
- Flame Rectification Detection: Accurately detects flame presence using rectified signal technology
- Flame Failure Response Time: Adjustable response between approximately 2–3 seconds for safety shutdown
- Plug-In Module Configuration: Easily integrates with Honeywell 7800 Series relay modules
- Flame Signal Monitoring: Supports signal strength measurement from 0.0 to 5.0 VDC
- Built-In Test Jacks: Allows direct measurement of flame signal for diagnostics and maintenance
- Dynamic Self-Check Capability: Continuously monitors system integrity and detector performance
- Automatic Safety Lockout: System locks out upon flame detection failure or unsafe conditions
- Color-Coded Identification: Green label indicates flame detection type for easy identification
- Wide Detector Compatibility: Works with various Honeywell flame detectors (sold separately)
The R8184G1393 delivers the reliability and precision required for safe and efficient oil burner control in heating and combustion systems.
