Description

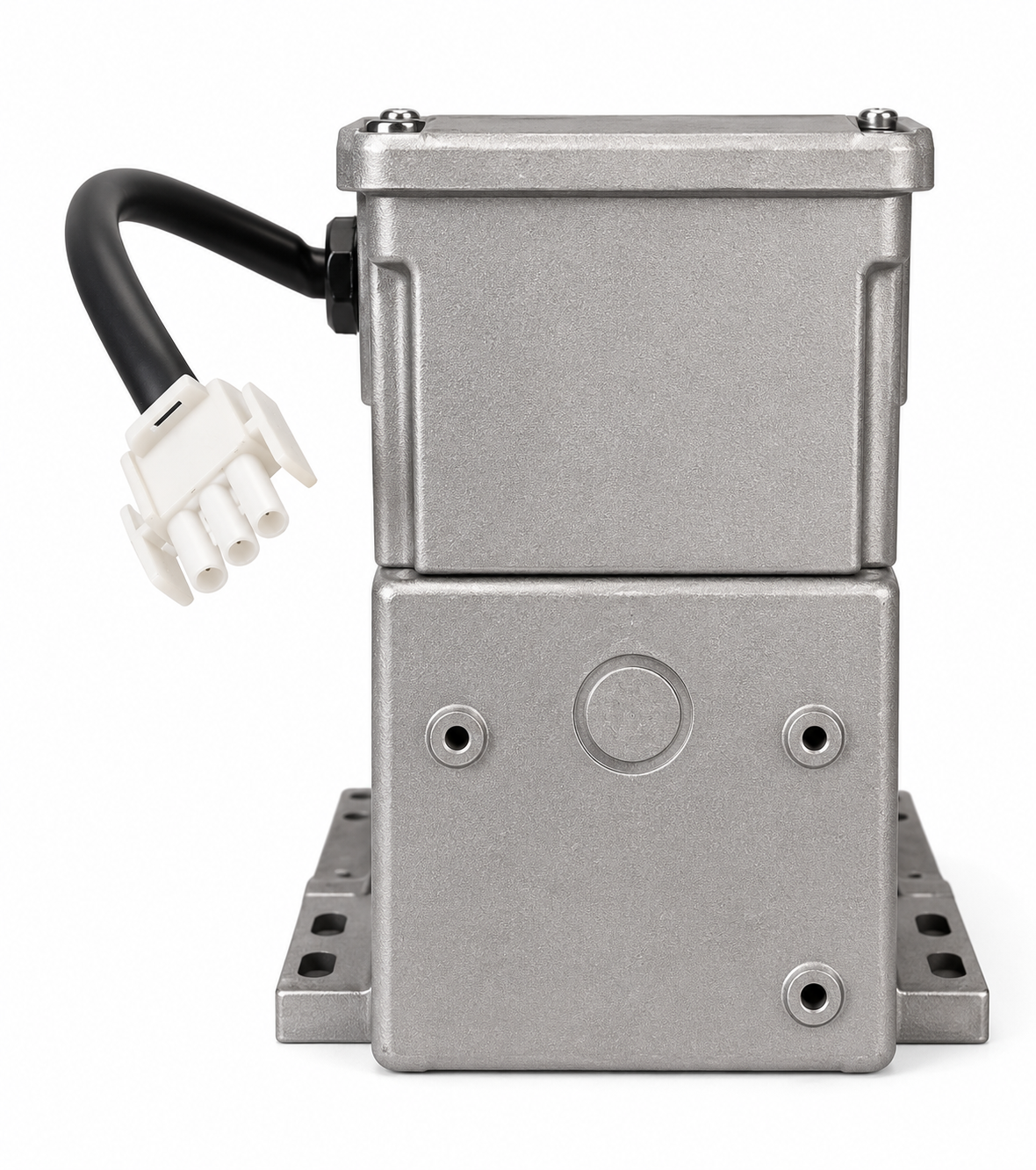

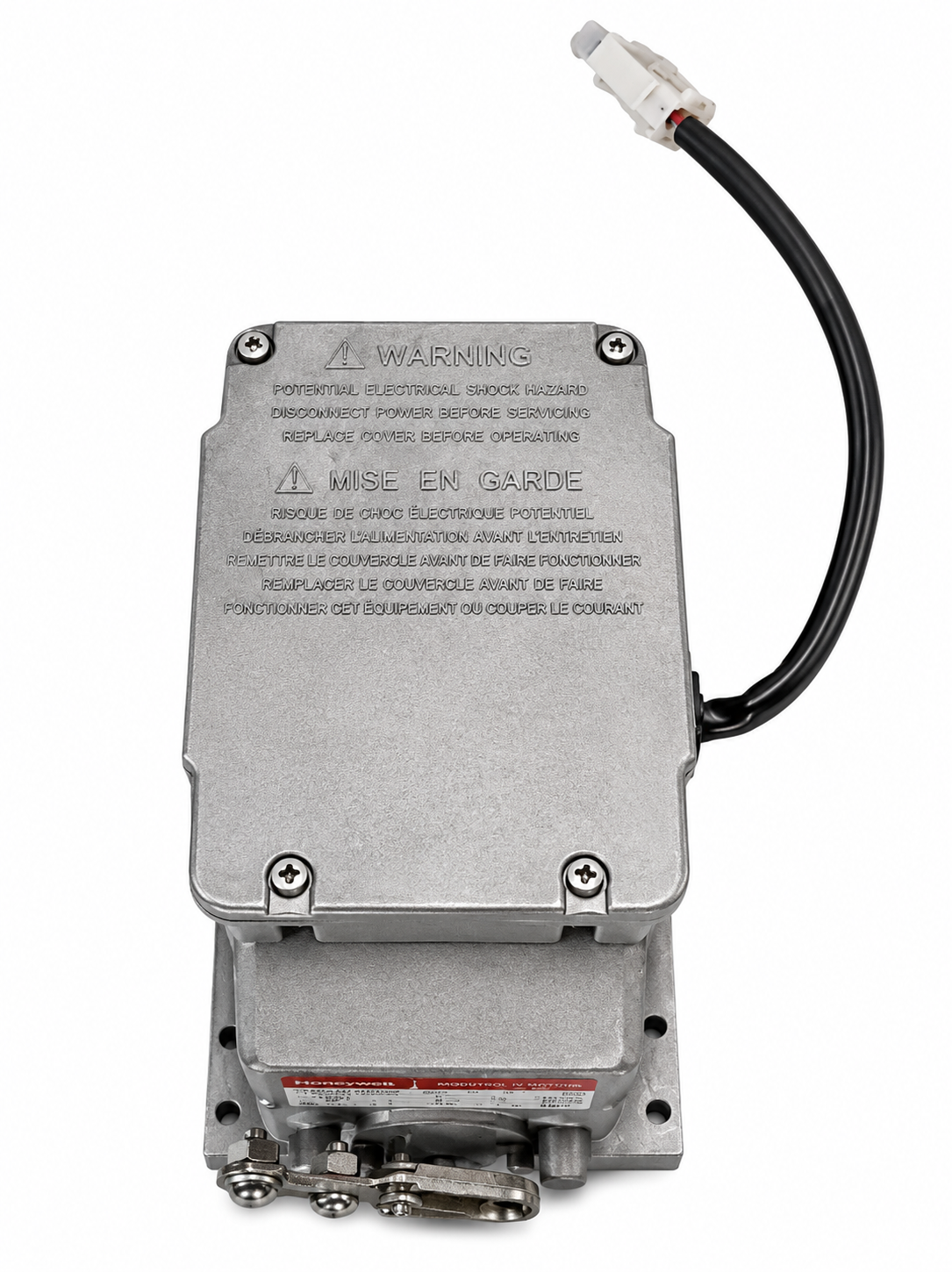

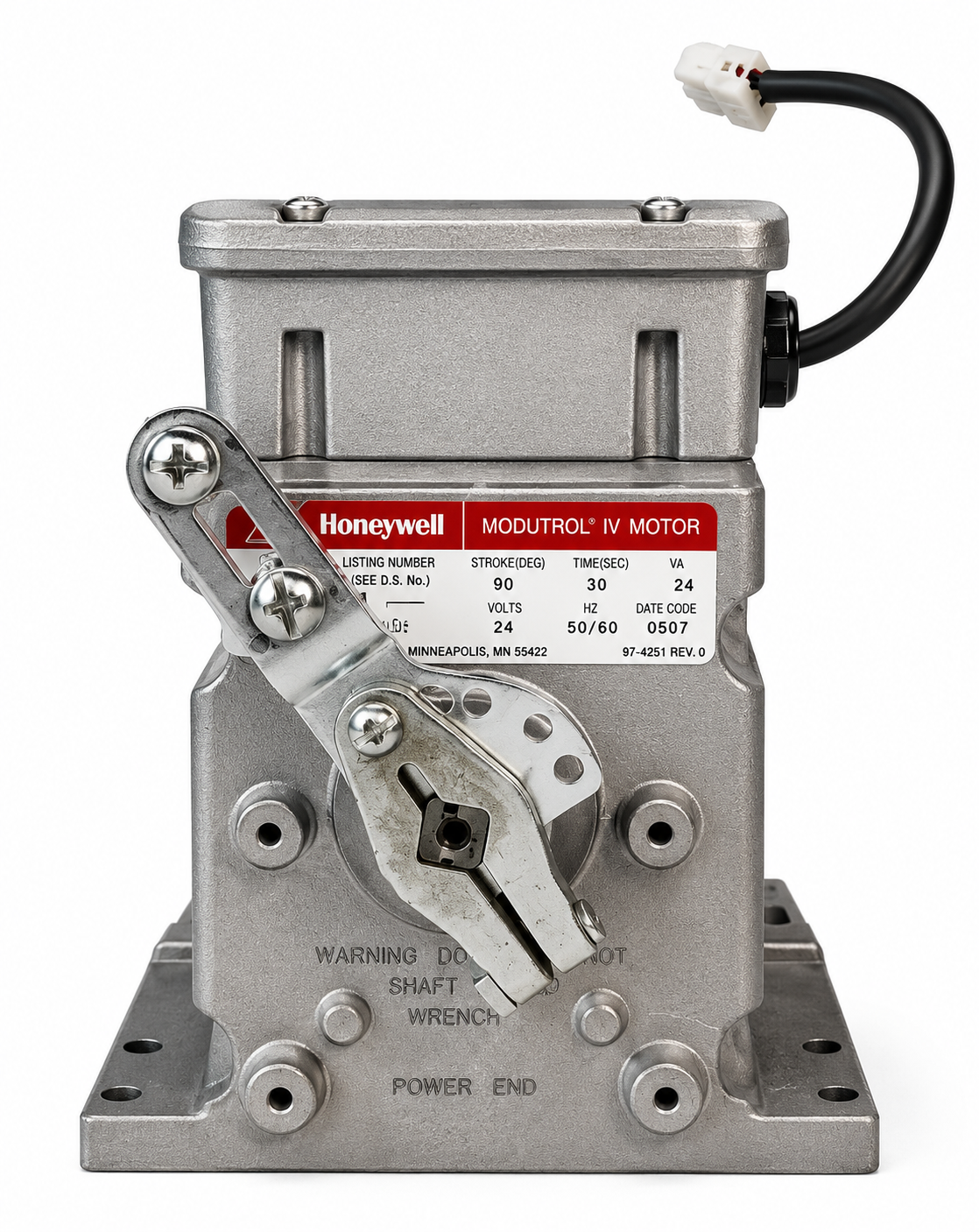

The M7282A1022 is a spring-return electronic Modutrol IV motor designed to position dampers and valves accurately within HVAC and process control systems. It operates on 120 VAC (50/60 Hz) and delivers precise torque and timing for rigorous industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
M7282A1022 |
| Subcategory |
Rotary Actuator / Valve & Damper Motor |
| Type |
Spring‑return electronic damper/valve actuator |
| Series |
Honeywell Modutrol IV (Series 72) |
| Input Signal |
4–20 mA proportional current |
| Stroke |
Fixed 90° |
| Timing |
30 seconds (90°) |
| Torque |
60 lb·in (6.8 N·m) |
| Input Voltage |
120 VAC, 50/60 Hz |
| Ambient Temperature |
–40 °F to +150 °F (–40 to +66 °C) |
| Housing Material |
Die‑cast aluminum |
| Gear Train |
Oil‑immersed |
| Wiring Protection |
NEMA 3 rated junction box |
| Weight |
10.00 lbs |
| Connection |
Quick‑connect terminals |
| Fail-Safe Behavior |
Spring returns to closed on power loss |
| Mounting |
Foot‑mounted |
Information About M7282A1022
The M7282A1022 is part of Honeywell’s Series 72 Modutrol IV line, engineered for modulating control of dampers and valves. As a spring-return variant, it reliably moves to its default (closed) position when power is interrupted, enhancing system safety. The motor features a fixed 90° stroke completed in 30 seconds, driven by a current input signal (4–20 mA), and provides a torque of 60 lb·in (6.8 N·m). Housed in a die-cast aluminum case with an oil-immersed gear train and NEMA-3-rated wiring box, it ensures durable operation across a wide temperature range (–40 to +66 °C).
Key Features:
- Spring-Return Fail Safe: Automatically returns to closed position upon power loss.
- Current-Controlled Modulation: Accepts a 4–20 mA control signal for precise positioning.
- Fixed 90° Actuation: Completes stroke in 30 sec for consistent response timing.
- Torque Output: 60 lb·in (6.8 N·m) to operate standard dampers/valves.
- Robust Housing: Die-cast aluminum with NEMA 3 junction box for indoor/outdoor use.
- Oil-Immersed Gear Train: Ensures long life and smooth performance.
- Wide Ambient Range: Works from –40 °F to +150 °F (–40 to +66 °C).
- Standard Input Voltage: Powered by 120 VAC at 50/60 Hz.
- Quick-Terminal Connections: Fast installation with quick-connect wiring.
- Legacy Compatibility: Replaces older M744/M745 series motors.
The M7282A1022 delivers reliable, spring-return actuation with precise control and rugged durability for HVAC and process system integration.
