Description

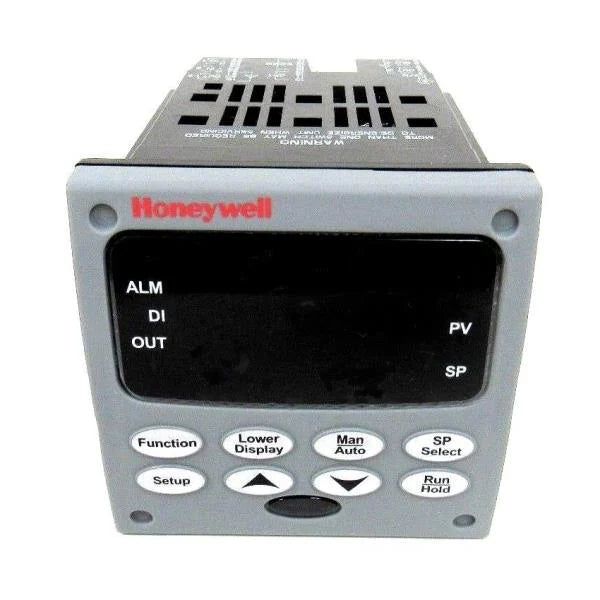

The Honeywell DC3200-CE-000R-200-00000-00-0 is a universal digital temperature and process controller from the UDC3200 series. This compact 1/4 DIN controller operates on 90–250 VAC and offers both analog and relay outputs. Designed for demanding industrial control applications, it includes a standard infrared interface and supports multiple input types including thermocouples, RTDs, mV, V, and mA signals.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
DC3200-CE-000R-200-00000-00-0 |
| Subcategory |
Temperature/Process Control |
| Series |
UDC3200 |
| Product Type |
Universal Digital Controller |
| Control Type |
Temperature / Process Control |
| Output #1 |
4–20 mA Analog Output |
| Output #2 |
Relay Output / Alarm |
| Input #1 |
TC/RTD/mV/0–5V/(0)4–20 mA |
| Interface |
Infrared (IR) Port |
| Power Supply |
90–250 VAC |
| Display |
Dual-line digital display |
| DIN Size |
1/4 DIN |
| Mounting Style |
Panel Mount |
| Software |
Standard |
| Certifications |
CE |
| Weight |
3.00 lbs |
Information About DC3200-CE-000R-200-00000-00-0
The DC3200 series represents Honeywell’s advanced generation of digital controllers with enhanced precision, flexibility, and usability. This model, DC3200-CE-000R-200-00000-00-0, supports universal power input (90–250 VAC) and offers dual output configuration: a 4–20 mA analog output for continuous control and a relay output for alarms or discrete actuation. With its standard firmware, this unit is capable of managing complex process variables with fast response times and stability. The built-in infrared interface allows configuration and monitoring via portable tools, without opening the panel. The universal input supports thermocouples, RTDs, 0–5V, and (0)4–20 mA signals, making it suitable for a broad range of industrial and OEM environments.
Key Features:
- Wide Power Supply Range: Accepts 90–250 VAC for flexibility in installation environments.
- Dual Output Capability: Includes a 4–20 mA output and relay output for alarm or switching functions.
- Universal Input Support: Compatible with TC, RTD, mV, 0–5V, and 4–20 mA signals for high integration flexibility.
- Infrared Configuration Port: Enables fast, non-intrusive setup and diagnostics via handheld tools.
- Compact 1/4 DIN Design: Space-saving enclosure ideal for control panels.
- Standard Software Package: Covers most essential control functions without the need for expansion.
- CE Marked: Ensures compliance with relevant European safety and EMC standards.
- Field Proven: Part of the Honeywell UDC family, known for durability and reliability in demanding applications.
The DC3200-CE-000R-200-00000-00-0 offers robust temperature and process control with versatile input/output options in a compact format.
