Description

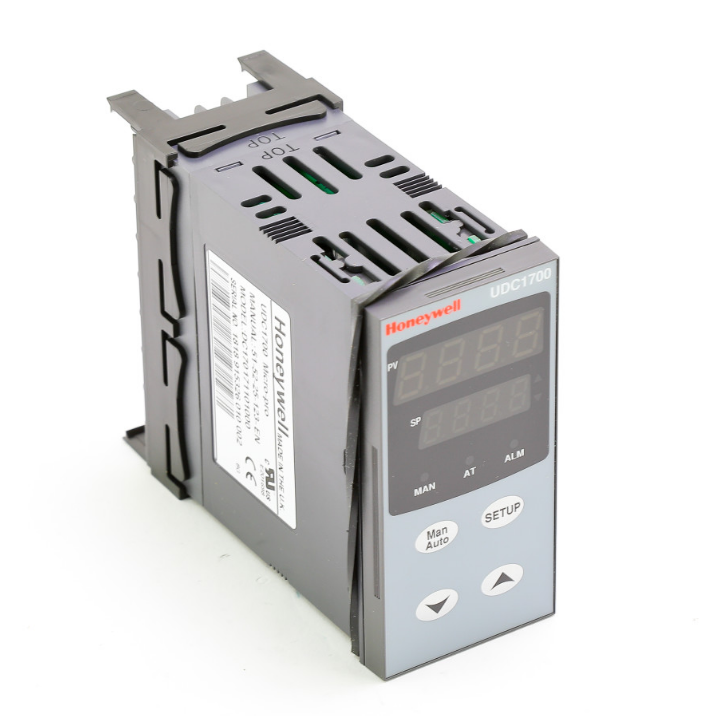

The Honeywell DC170221101220 is a compact, microprocessor-based universal digital controller from the UDC1700 series. It delivers precise control with dual digital displays and flexible analog and relay outputs, ideal for general-purpose industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
DC170221101220 |
| Subcategory |
Temperature/Process Control |
| Series |
UDC1700 |
| Display Type |
Dual Digital
|
Input Type
|
Linear mA |
| Output 1 |
Linear 4–20 mA |
| Output 2 |
Relay |
| Output 3 |
Relay |
| Power Supply |
90–264 VAC |
| Mounting Format |
1/8 DIN |
| Technology |
Microprocessor-Based |
| Power Consumption |
4 W |
| Weight |
250 grams |
| Height |
96 mm / 3.78 in |
| Width |
48 mm / 1.89 in |
| Depth |
100 mm / 3.94 in |
Information About DC170221101220
The DC170221101220 is part of Honeywell’s UDC1700 microprocessor-based digital controller line, built in a 1/8 DIN housing. It features a clear dual digital display that simplifies monitoring and configuration across diverse industrial processes. The controller supports a linear mA input, a 4–20 mA linear analog output, and two additional relay outputs for versatile signal control and alarming. Operating on a universal power supply (90–264 VAC), it’s compatible with global voltage standards. Designed for flexibility and reliability, it can be integrated into a wide range of industrial and manufacturing systems requiring stable PID or on/off control.
Key Features:
- Universal Power Input: Operates on 90–264 VAC for worldwide voltage compatibility.
- 1/8 DIN Form Factor: Compact size for convenient panel installation in industrial environments.
- Dual Digital Display: Provides clear visualization of process variables and setpoints.
- Linear mA Input: Accepts analog input signals with precision for accurate monitoring.
- 4–20 mA Output (Output 1): Delivers proportional analog control signal for actuators or monitoring.
- Relay Output 2: Provides discrete on/off control or alarm signaling capability.
- Relay Output 3: Adds additional relay output for extended control functionality.
- Microprocessor-Based: Ensures stable, intelligent control for process consistency.
- Versatile Application Use: Suitable for temperature, pressure, flow, and other process variables.
- Honeywell Reliability: Built to industrial-grade standards for long-term, dependable operation.
The DC170221101220 delivers compact, flexible, and robust control performance for various industrial processes where space and precision matter.
