Description

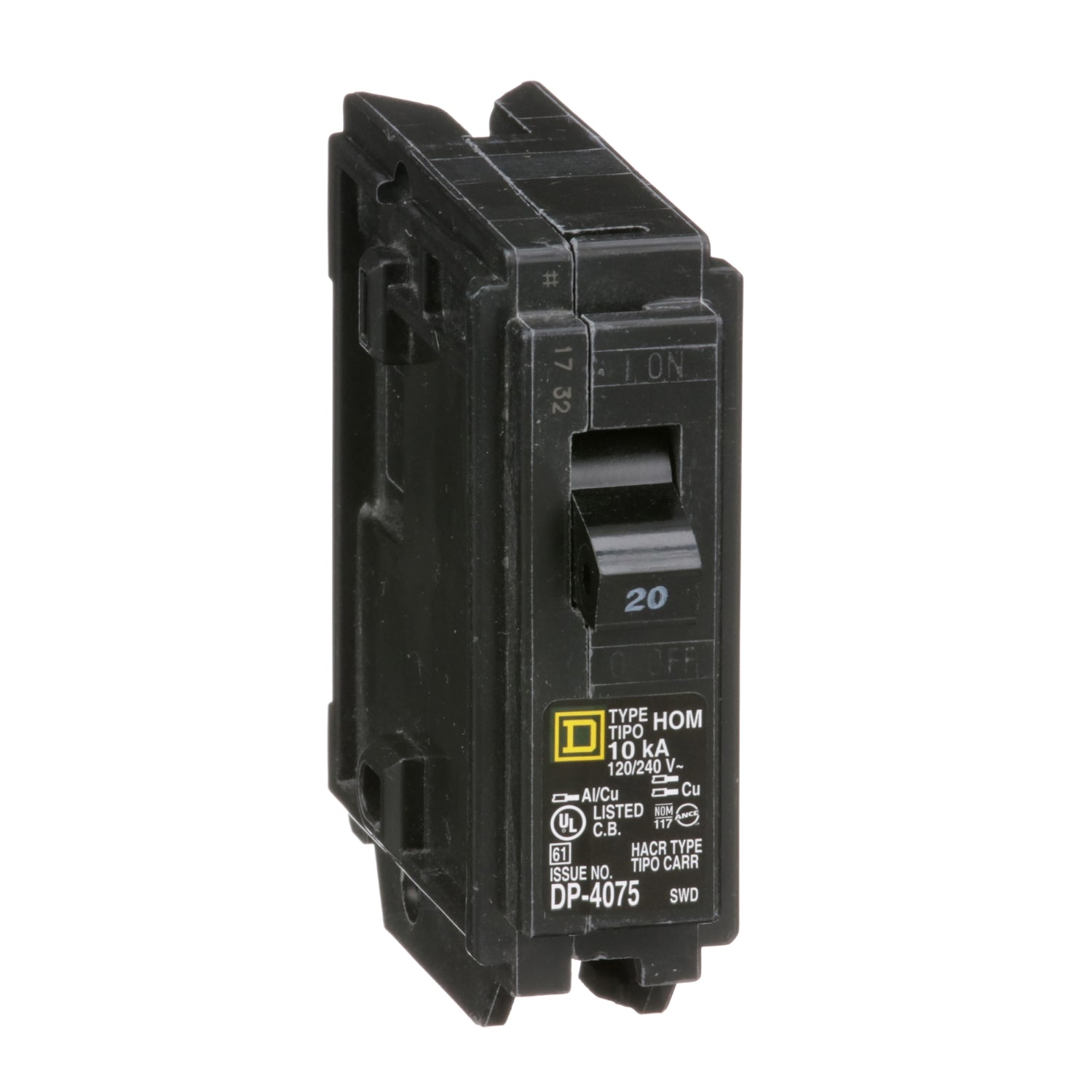

The HOM120 is a Homeline miniature circuit breaker engineered for swift installation and efficient circuit protection. Designed to be compatible with Homeline load centers, these circuit breakers offer standard circuit protection and are HACR rated.
This specific model is a 1-pole circuit breaker with plug-in mounting, rated at 20A for 120/240 VAC systems. It provides a breaking capacity of 10 kA. The electrical connection utilizes a clamp terminal capable of accommodating two wires within a range of 14 AWG to 8 AWG copper or aluminum wire.
Technical Specifications
|
|
|
|
|
|
|
|
Molded Case Circuit Breaker
|
|
|
Miniature circuit-breaker
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Short Circuit Current Rating
|
|
|
|
|
|
|
|
|
|
Clamp terminal for 2 cables
|
|
|
1 x AWG 14...AWG 8 (aluminium/copper)
|
|
|
2 x AWG 14...AWG 10 (copper)
|
|
|
|
|
|
0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
|
|
|
|
|
|
|
|
|
|
Information About HOM120
Homeline miniature circuit breakers, exemplified by the HOM120 model, are meticulously engineered and meticulously designed to ensure swift installation and premium circuit safeguarding. Specifically tailored to integrate seamlessly with Homeline load centers, these circuit breakers function as pivotal components in providing comprehensive circuit protection.
Equipped with a standard configuration, the HOM120 circuit breaker is HACR rated, signifying its adherence to stringent quality and safety standards. Featuring a singular pole and plug-in mounting, this breaker is capable of handling currents of up to 20A at both 120V and 240V AC voltages.
Notably, Homeline breakers boast a robust 10kA breaking capacity, ensuring effective mitigation of electrical faults and overloads. The electrical connection mechanism employs a clamp terminal designed to accommodate two wires simultaneously, with compatibility spanning from 14 AWG to 8 AWG copper or aluminum wires.
Manufacturer Information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
