Description

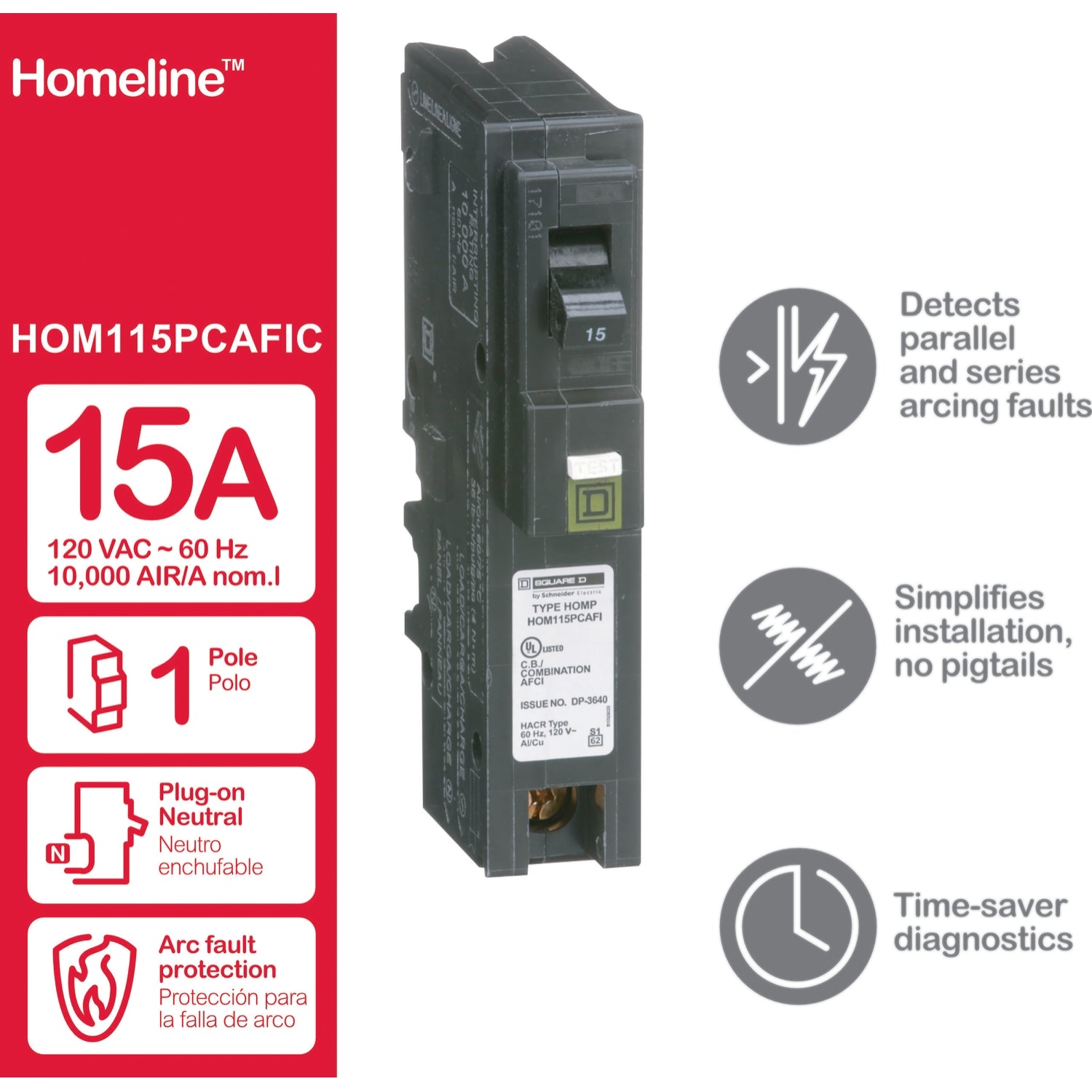

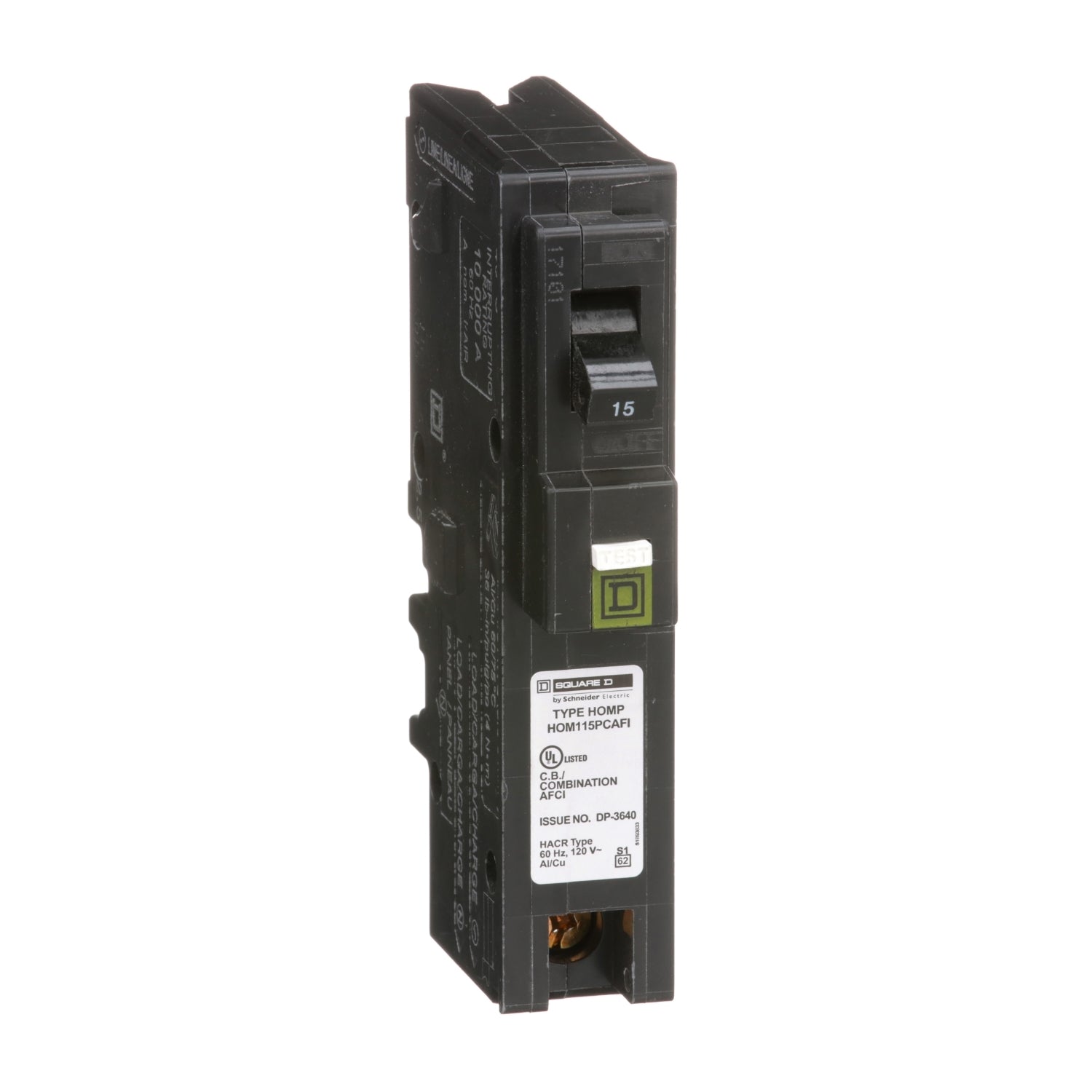

The Square D HOM115PCAFIC is a 1-pole miniature circuit breaker designed to provide combination arc fault, overload, and short-circuit protection in residential electrical systems. Rated at 15A and operating at 120VAC, the Square D HOM115PCAFIC is intended for use in Homeline load centers where plug-on neutral installation is required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Circuit Breaker |
| Part Number |
HOM115PCAFIC |
| Subcategory |
Miniature Circuit Breaker |
| Series |
Homeline |
| Breaker Type |
Combination Arc Fault Circuit Interrupter (CAFCI) |
| Current Rating |
15 Amps |
| Voltage Rating |
120 VAC |
| Poles |
1 |
| Interrupting Rating |
10 kA |
| Mounting Type |
Plug-In |
| Neutral Connection |
Plug-On Neutral |
| Electrical Connection |
Screw Clamp Terminals |
| Wire Size |
14–8 AWG Copper or Aluminum |
| Certifications |
UL Listed |

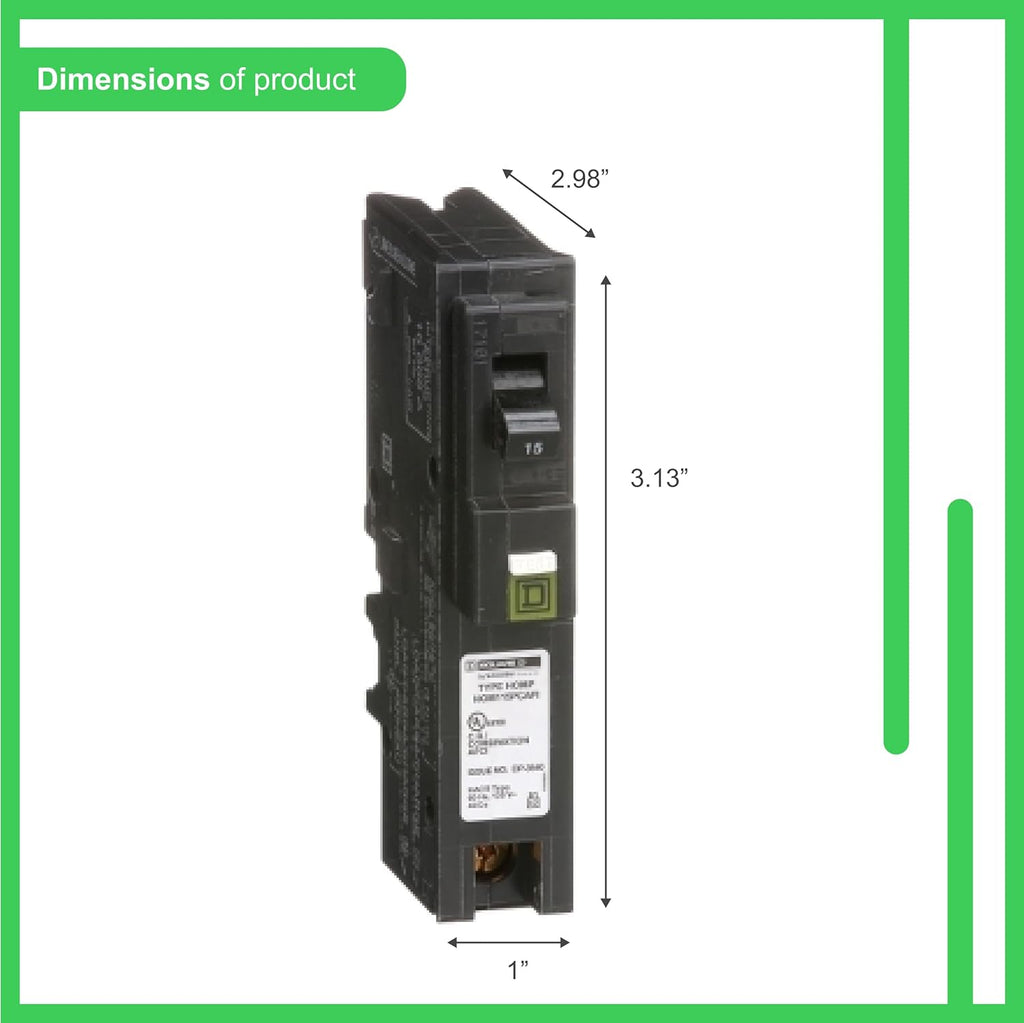

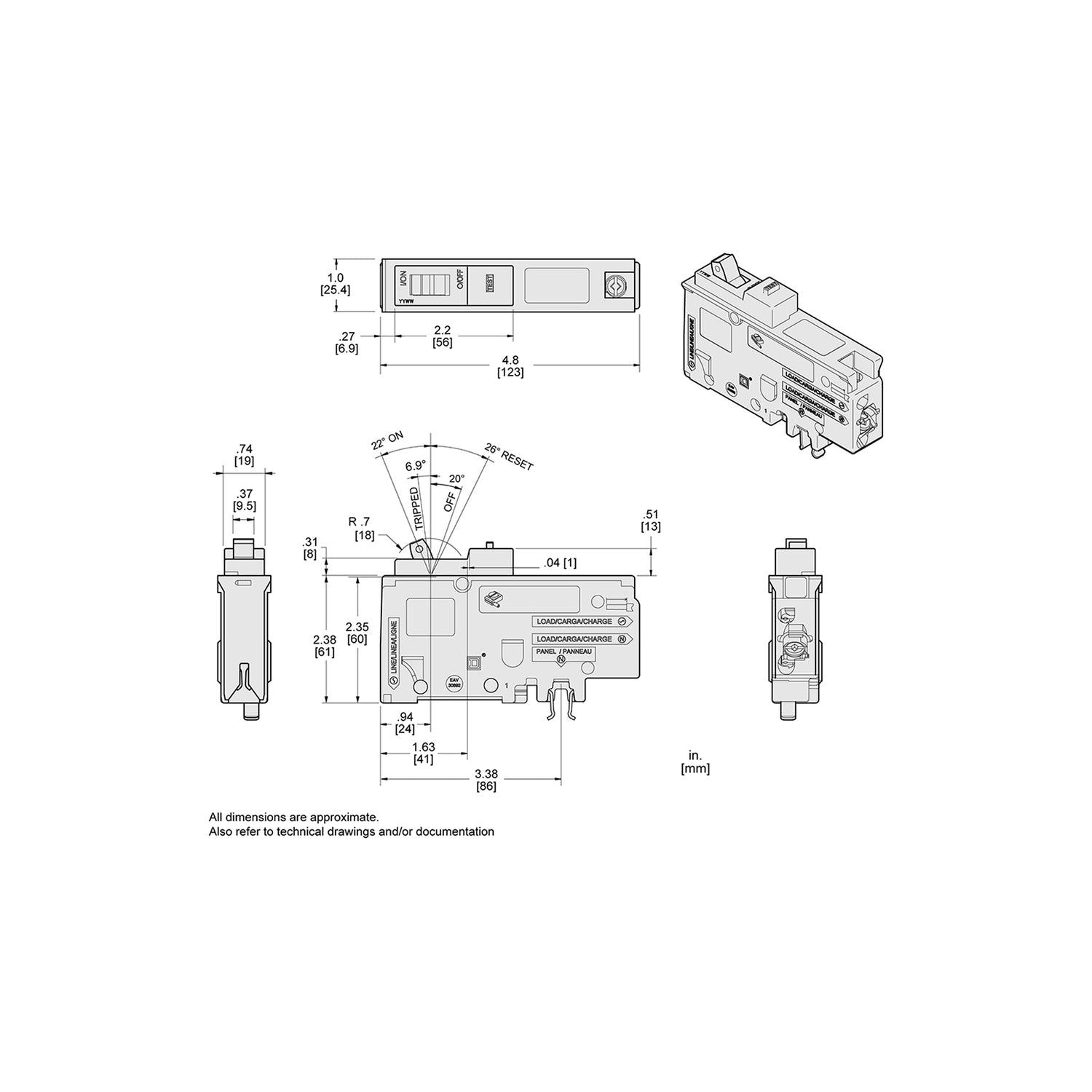

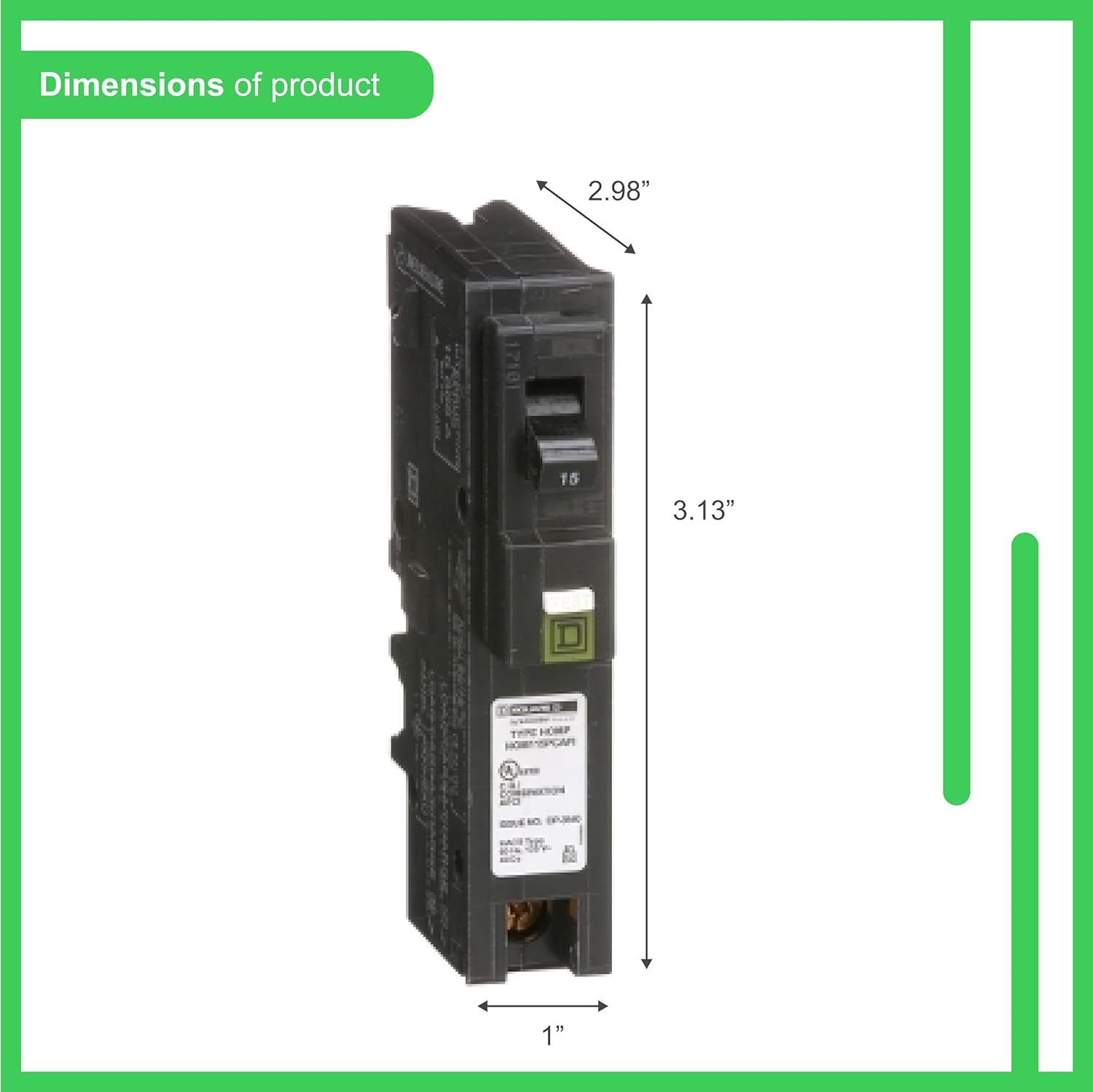

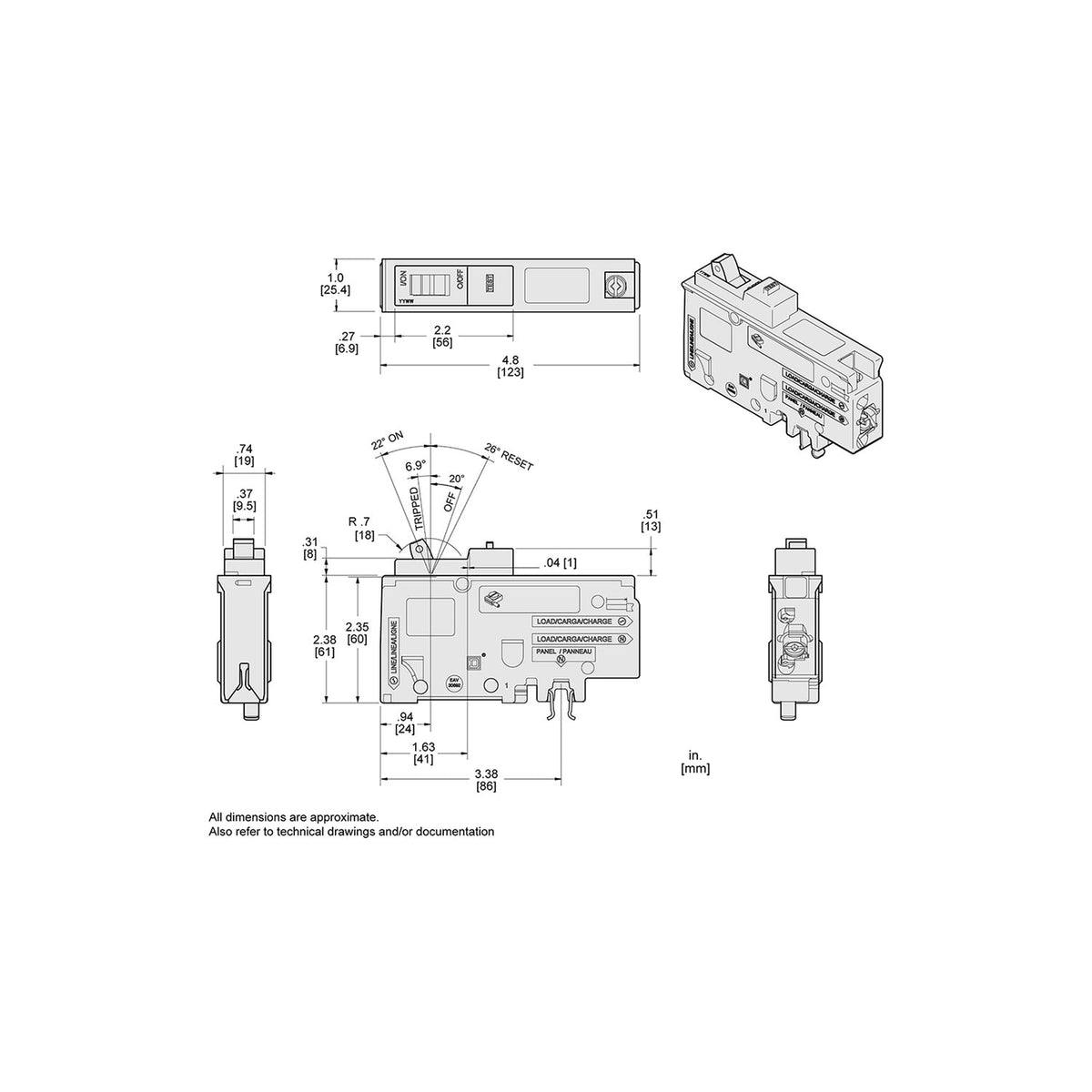

| Dimensions (HxWxD) |
3.13 x 1 x 2.98 in |
| Weight |
0.66 lb |
Information About HOM115PCAFIC
The HOM115PCAFIC is part of the Square D Homeline series, engineered for efficient installation and dependable branch circuit protection. It features a combination arc fault circuit interrupter (CAFCI) design that detects both series and parallel arc faults in compliance with NEC and UL1699 requirements. The breaker uses a plug-on neutral connection and plug-in mounting, eliminating the need for a neutral pigtail and reducing wiring complexity. Designed for residential applications, it supports copper or aluminum conductors and meets UL listing and HACR rating standards.

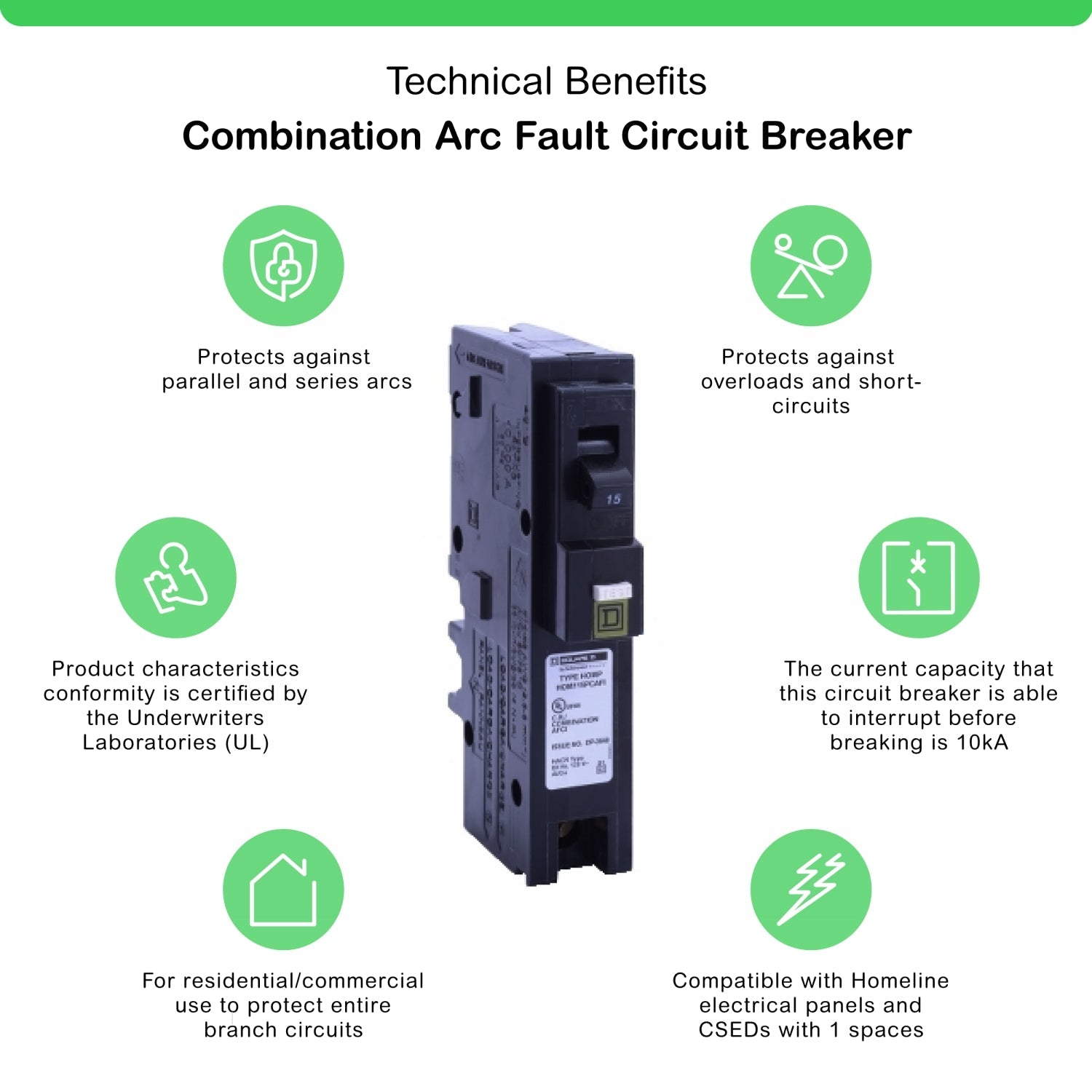

Key Features:
- Combination Arc Fault Protection: Detects and interrupts both series and parallel arc faults for enhanced circuit safety.
- 15 Amp Current Rating: Supports standard residential branch circuits such as lighting and receptacles.
- Plug-On Neutral Design: Simplifies installation and reduces wiring time by eliminating neutral pigtails.
- Plug-In Mounting: Designed specifically for compatibility with Square D Homeline load centers.
- 10 kA Interrupting Rating: Provides reliable fault interruption at rated short-circuit levels.
- Clamp Terminal Connection: Accepts two conductors with a wire range of 14 AWG to 8 AWG copper or aluminum.
- HACR Rated: Approved for heating, air conditioning, and refrigeration equipment circuits.
The HOM115PCAFIC delivers the reliability and precision required for residential branch circuit protection with advanced arc fault detection.
