Description

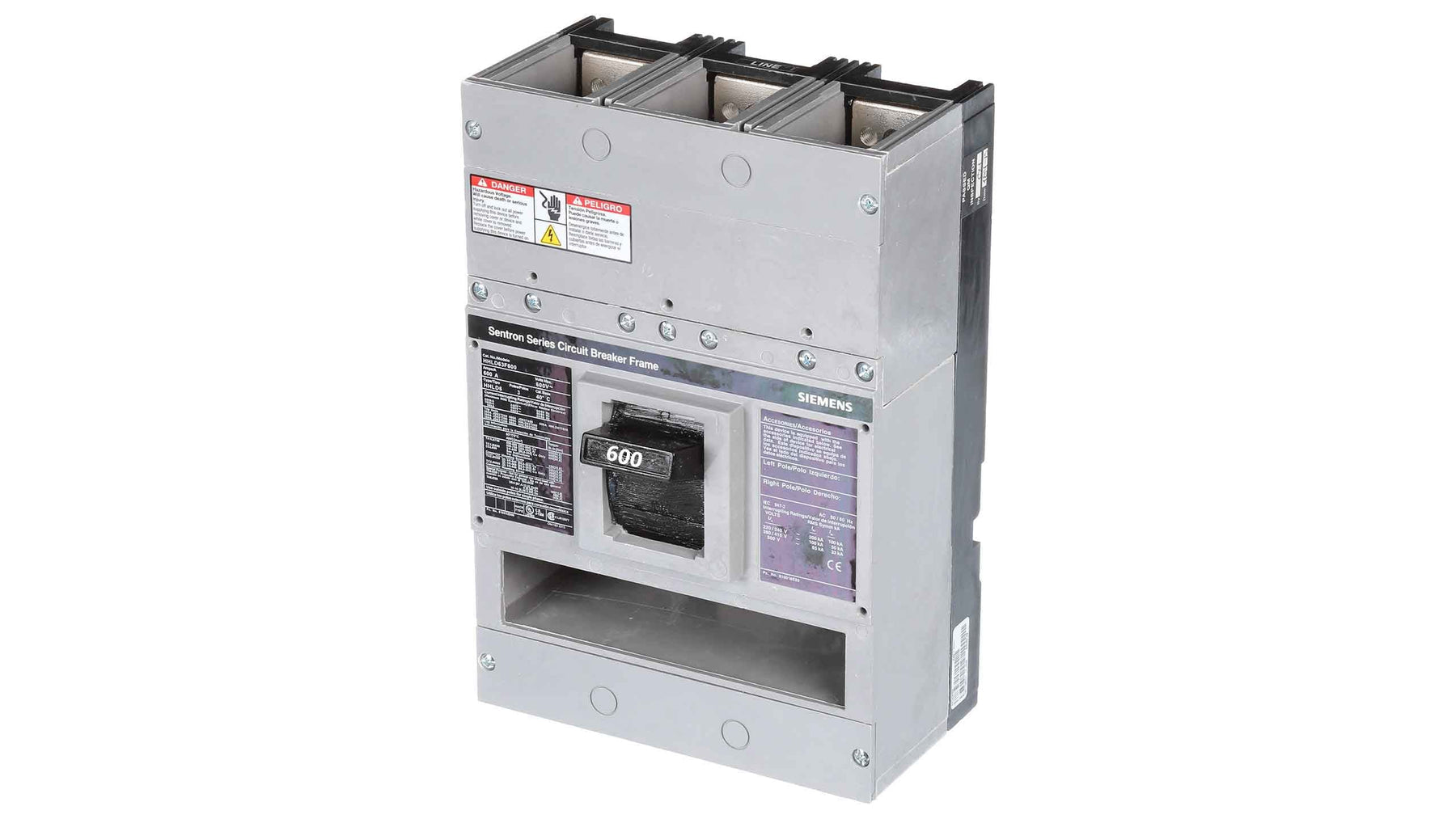

The Siemens HHLD63F600 is a Molded Case Circuit Breaker designed for high-capacity electrical protection. This 3-pole, 600 Amp, 600 Volt circuit breaker provides reliable thermal-magnetic protection and is ideal for industrial and commercial electrical systems. The HHLD63F600 ensures safe operation with a high interrupting capacity of 100kA at 480V.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Breaker |
| Part Number |
HHLD63F600 |
| Subcategory |
Molded Case |
| Family |
Sentron Series |
| Type |
HHLD |
| Poles |
3 |
| Voltage |
600 V |
| Amperage |
600 A |
| Phase |
3 |
| Interrupting Capacity |
100kA@480V |
| Connection Type |
Bolt-On |
| Frame Size |
LD Frame |
| Protection |
Thermal Magnetic |
| Dimensions (HxWxD) |
11" x 7.5" x 4" |
| Temperature Rating |
40°C |
| Country of Origin |
Mexico |
| Weight |
25 lbs |
Information About HHLD63F600
The HHLD63F600 is part of Siemens’ Sentron Series HHLD family and features a bolt-on connection for secure installation. It is built as a frame-only unit, compatible with appropriate lugs and trip units. This breaker is suitable for 3-phase electrical systems requiring high-current protection and is designed for panelboard or switchboard integration. Key technologies include thermal-magnetic trip protection and a durable LD frame construction, supporting consistent operation in demanding industrial environments.
Key Features:
- Brand: Siemens – Recognized for high-quality electrical components.
- Amp Rating: 600A – Provides high-capacity current protection for industrial circuits.
- Voltage Rating: 600V – Suitable for low-voltage applications up to 600 volts.
- Poles: 3 – Designed for three-phase systems.
- Interrupting Capacity: 100kA@480V – Ensures safe fault handling.
- Connection Type: Bolt-On – Simplifies installation into panelboards.
- Frame Type: LD Frame – Provides structural integrity and supports additional components.
- Protection Type: Thermal-Magnetic – Offers reliable trip response under overload and short-circuit conditions.
The HHLD63F600 delivers the reliability and precision required for industrial and commercial circuit protection systems.
