Description

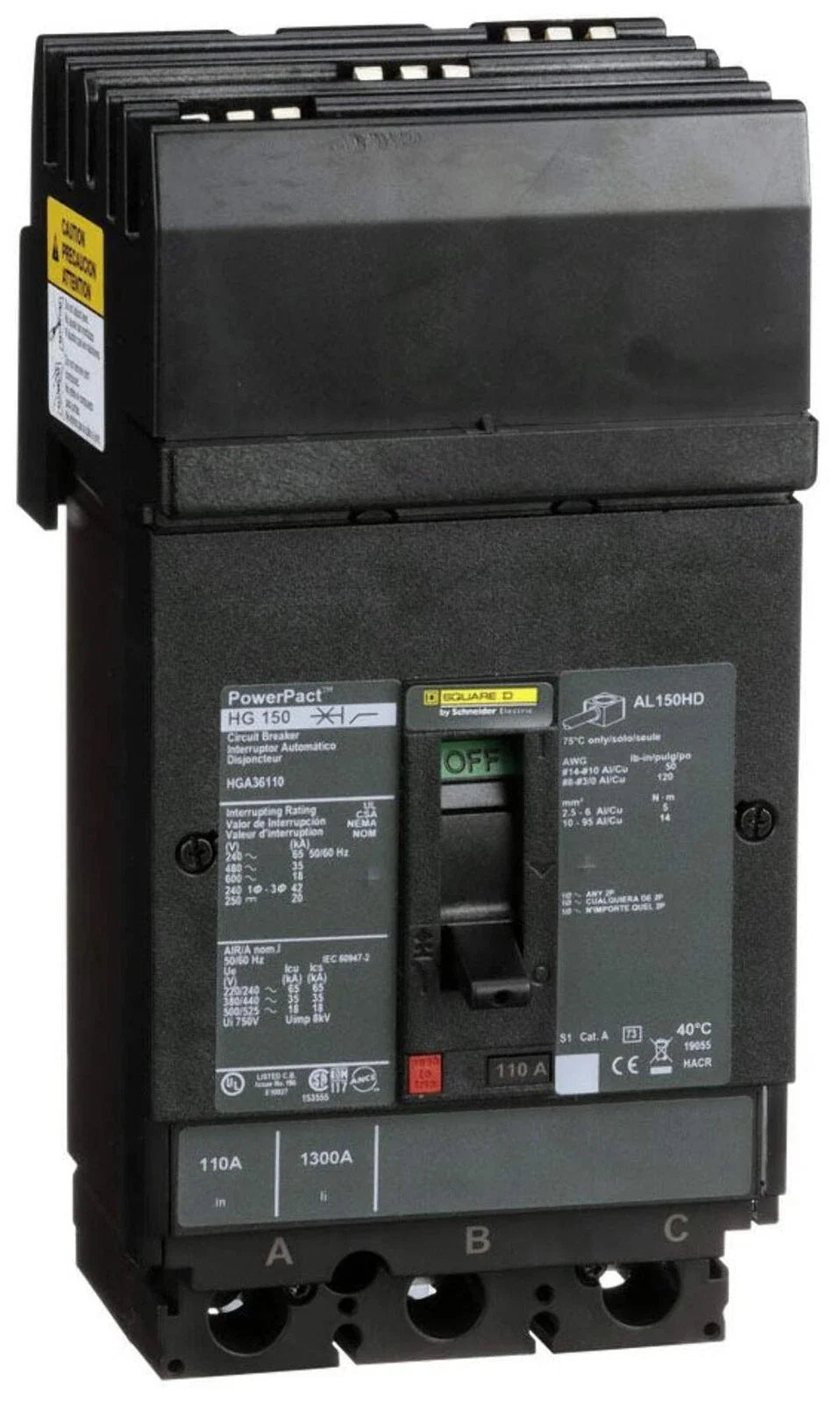

The Schneider Electric HGA36110 is a PowerPact H molded case circuit breaker designed for reliable power distribution and circuit protection in commercial and industrial electrical systems. It features a thermal-magnetic trip unit and high interrupting capacity to protect against overloads and short circuits. This three-pole circuit breaker is engineered for dependable performance across AC and DC applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Protection |
| Part Number |
HGA36110 |
| Subcategory |
Molded Case Circuit Breakers |
| Product Line |
PowerPact H |
| Product Type |
Circuit Breaker |
| Device Application |
Distribution |
| Rated Current |
110 A |
| Number of Poles |
3 |
| Trip Unit Technology |
Thermal-Magnetic |
| Rated Operational Voltage |
Up to 690 VAC |
| Network Frequency |
50/60 Hz |
| Breaking Capacity |
Up to 65 kA @ 240 VAC |
| Rated Insulation Voltage |
750 V |
| Mounting Mode |
I-Line Bracket |
| Electrical Connection |
I-Line (Line), Lugs (Load) |
| Height |
6.4 in (163 mm) |
| Width |
4.09 in (104 mm) |
| Depth |
3.4 in (86 mm) |
| IP Rating |
IP40 (Front Cover) |
| Operating Temperature |
-25°C to 70°C |
| Weight |
4.9 lb (2.2 kg) |
Information About HGA36110
The HGA36110 is part of Schneider Electric’s PowerPact H product line, developed to meet demanding distribution and protection requirements. It is designed for use in three-phase systems and supports both AC and DC voltage ratings across a wide range of operating conditions. The breaker incorporates thermal-magnetic trip technology to provide consistent protection against overload and fault currents. Its construction supports I-Line mounting and compatibility with auxiliary and communication accessories for advanced system integration.
Key Features
- PowerPact H Series Design: Engineered for high-performance power distribution applications.
- Thermal-Magnetic Trip Unit: Provides dependable overload and short-circuit protection.
- High Interrupting Capacity: Rated up to 65 kA at 240 VAC for robust fault protection.
- Three-Pole Configuration: Suitable for three-phase electrical systems.
- Wide Voltage Compatibility: Supports AC and DC operational voltages across multiple standards.
- I-Line Mounting Capability: Enables efficient installation in Schneider Electric panel systems.
- Accessory Support: Compatible with auxiliary switches, alarm switches, and communication modules.
The HGA36110 delivers the reliability and precision required for industrial and commercial power distribution and circuit protection applications.
