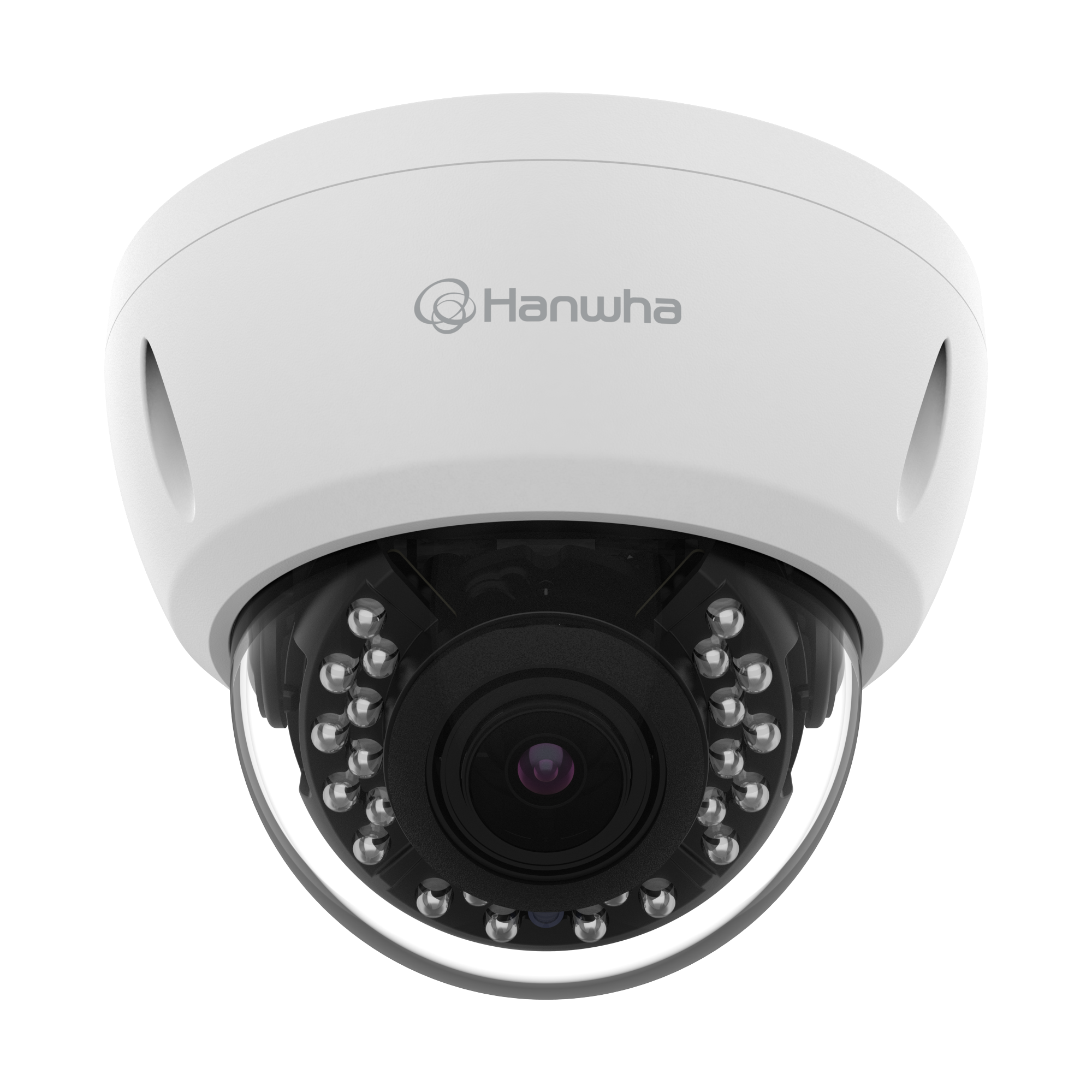

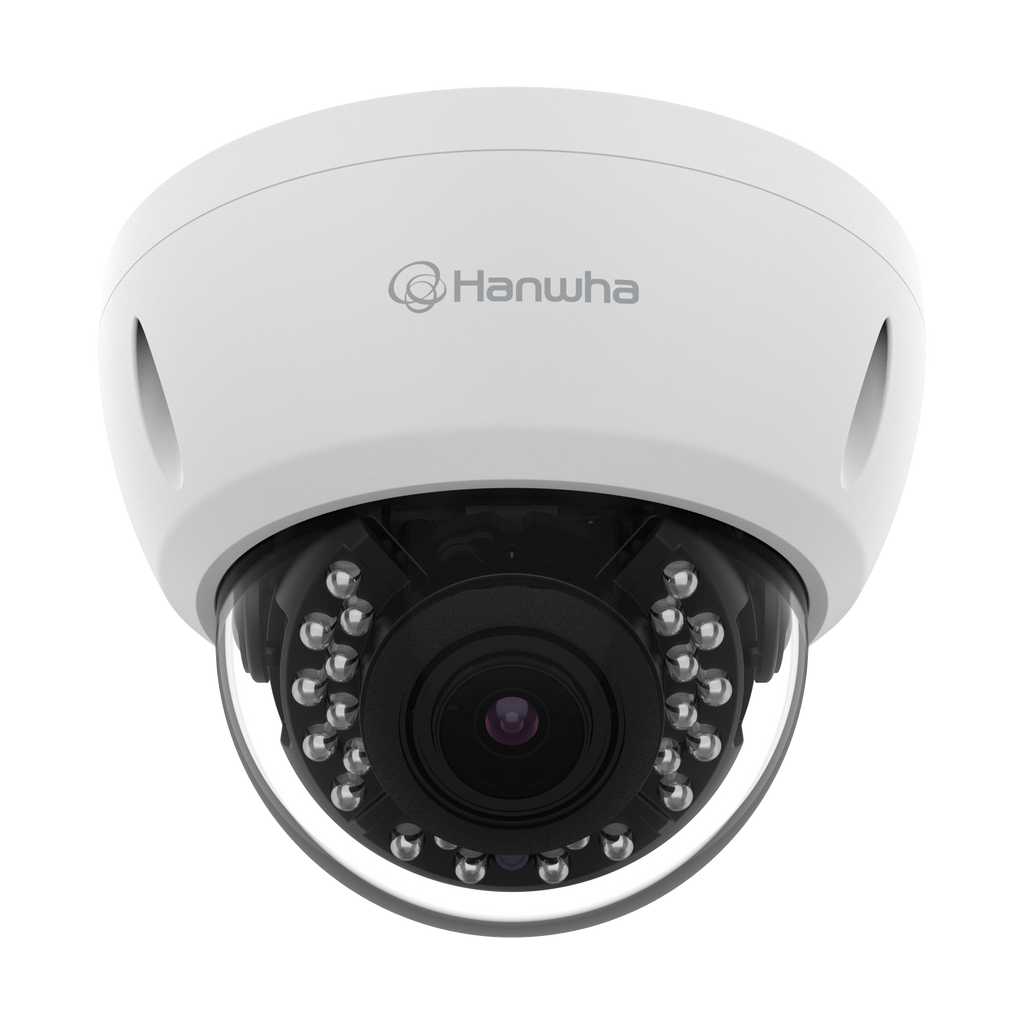

Hanwha ACV-8081R 5MP Analog HD IR Outdoor Dome

Wisenet A Series 5MP IR vandal dome camera, AHD / TVI / CVI / CVBS formats are available, 5MP @ 30fps, motorized vari-focal lens 3x (3.5~10.5mm) (99.1°~ 30.3°), WDR, IR distance 20m(65.6 ft), day & night, IP66, IK10, 12VDC, Analog, white.

Video
Imaging Device																																																																1/2.8" CMOS
Resolution																																																																2592x1944, 2560x1440
Max. Framerate																																																																Max. 30fps (@5MP Max. 20fps)
NETD																																																																None
Pixel Size																																																																None
Min. Illumination																																																																Color : 0.06Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on)
Video Out																																																																BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance																																																																300m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)																																																																3.5mm~10.5mm (3x) motorized varifocal
Max. Aperture Ratio																																																																F1.6
Angular Field of View																																																																H: 82°(Wide)~27°(Tele) V: 60°(Wide)~20°(Tele) D: 105°(Wide)~33°(Tele)
Min. Object Distance																																																																0.8m(2.62ft)
Focus Control																																																																None
Lens Type																																																																None
Mount Type																																																																None
Optional Lens																																																																None

US-Based Distributor

Wellington, Florida — serving US businesses, agencies & OEMs.

Send a Part Number

Search or send your list — obsolete & current GE Speedtronic, boards & controls.

24-Hour Quotes

US-based specialists reply within 24 hours.

Purchase Orders Welcome

POs accepted from qualified US buyers; cards too.

Product

Name: Hanwha ACV-8081R 5MP Analog HD IR Outdoor Dome
Brand: Hanwha Techwin
SKU: ACV-8081R
Price: 292.19 USD
Availability: InStock
