Description

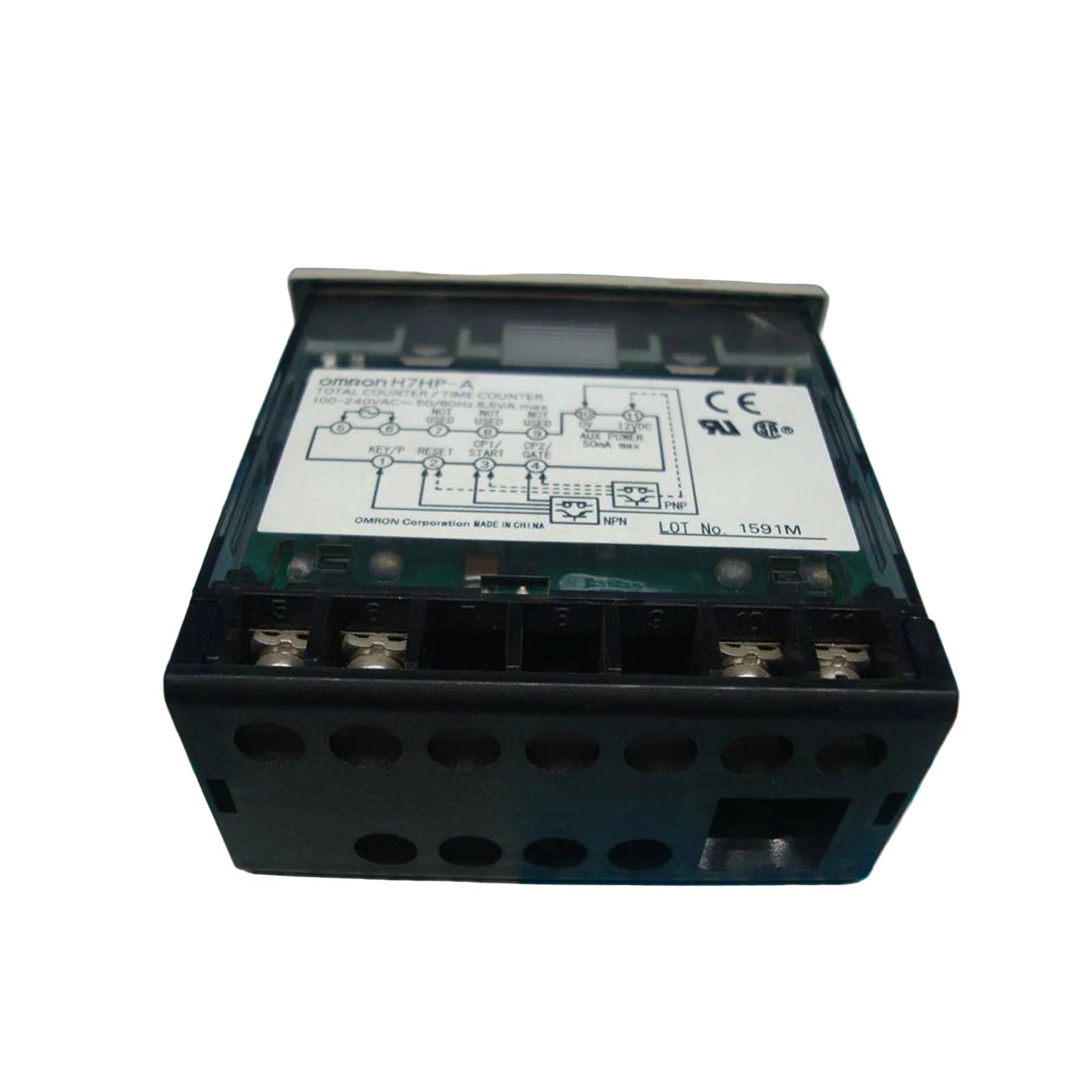

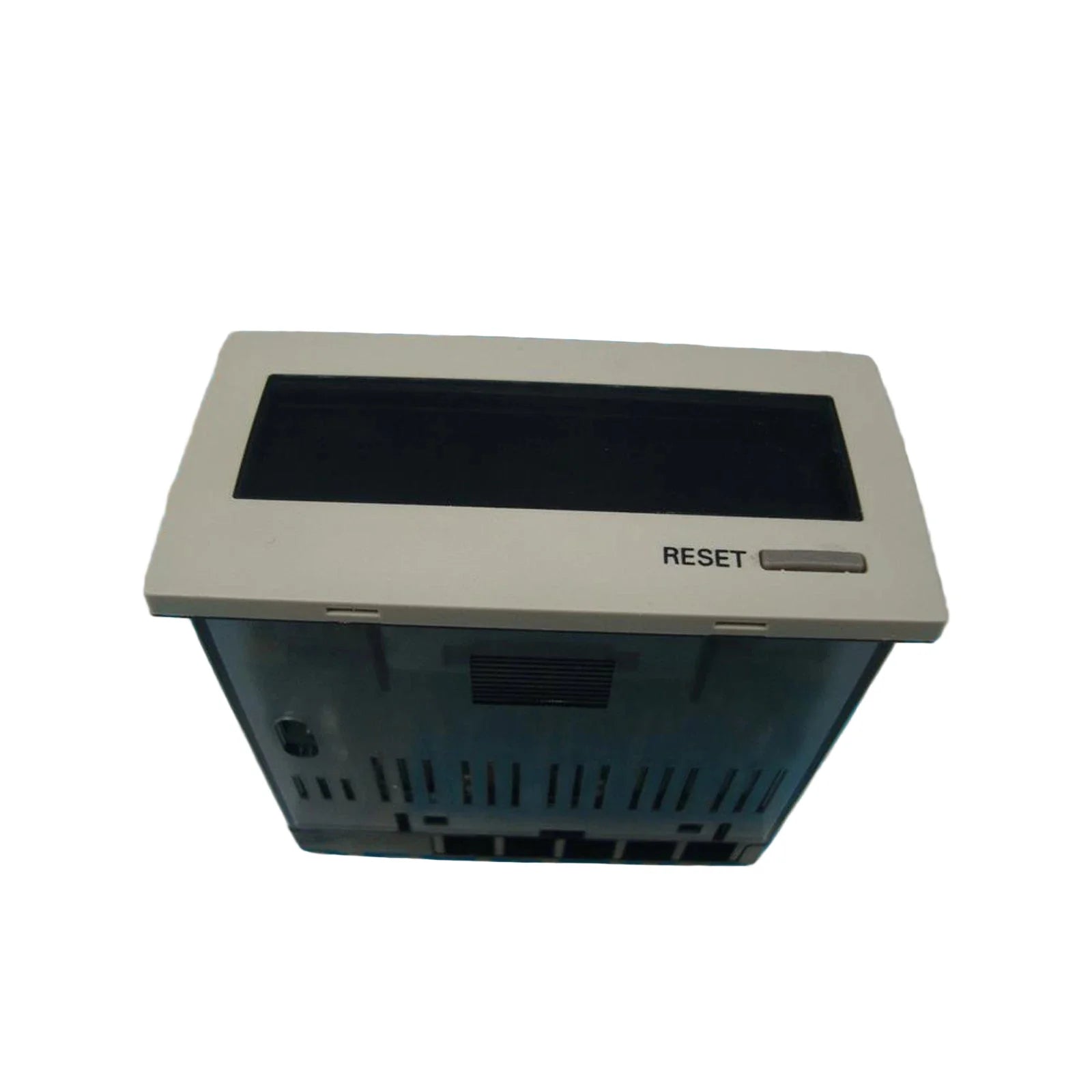

The Omron H7HP-A Time Counter is a six-digit LCD panel-mounted totalizer designed for tracking elapsed time and operational cycles in automation and process systems. It supports both up and down counting modes with selectable NPN/PNP or no-voltage input options. Featuring a large, high-contrast backlit display and IP66-rated front protection, this counter delivers accurate and reliable timing performance in industrial control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
H7HP-A |
| Subcategory |
Time Counters |
| Alternate Part Number |
H7HPA |
| Series |
H7HP Series |
| Type |
Time Counter / Totalizer |
| Display Type |
LCD with red characters, backlight |
| Number of Digits |
6 |
| Display Character Height |
0.590" (15 mm) |
| Operating Modes |
Up, Down, Individual |
| Time Format |
99999.9 hrs or 99 hrs 59 min 59 sec |
| Count Rate |
30 Hz / 5 kHz |
| Input Type |
Selectable (No Voltage, NPN, or PNP) |
| Output Type |
Visual Display |
| Power Supply Voltage |
100–240 VAC |
| Mounting Type |
Panel Mount (Flush) |
| Panel Cutout Dimensions |
68 × 33 mm (Rectangular) |
| Connection Type |
Screw Terminals |
| Reset Method |
External or Front Panel |
| Case Color |
Light Gray |
| Ingress Protection |
IP66 (Dust Tight, Water Resistant) |
| Operating Temperature Range |
-10°C to +55°C |
| Weight |
Approx. 0.2 kg (0.44 lb) |
Information About H7HP-A
The H7HP-A belongs to Omron’s H7HP Series, a family of versatile panel-mounted counters and totalizers used for time and event measurement in automation panels. This model offers multi-mode operation—up, down, and individual—providing flexibility for totalizing, elapsed-time, and process control applications. With screw terminal connections, a universal 100–240 VAC power supply, and a flush-mount design, it easily integrates into existing control enclosures. Its IP66-rated front panel ensures resistance to dust, moisture, and vibration, making it suitable for demanding industrial environments.
Key Features:
- Six-Digit Time Counter: Displays up to 99999.9 hrs or 99 hrs 59 min 59 sec for precise time monitoring.
- Selectable Input Type: Supports NPN/PNP voltage input or no-voltage signal selection for versatility.
- High-Visibility LCD Display: Large red-character display (15 mm height) with backlight for easy reading.
- Multi-Mode Operation: Configurable for up, down, or individual counting modes.
- Flexible Power Input: Operates on universal 100–240 VAC power supply.
- IP66 Front Protection: Dust-tight and water-resistant for reliable operation in harsh conditions.
- Flush Panel Mounting: Compact design fits standard 68 × 33 mm cutouts.
- Durable Omron Build: Designed for industrial automation, ensuring long-term accuracy and dependability.
The H7HP-A delivers the reliability and precision required for time measurement, process monitoring, and control system integration in industrial automation.
