Description

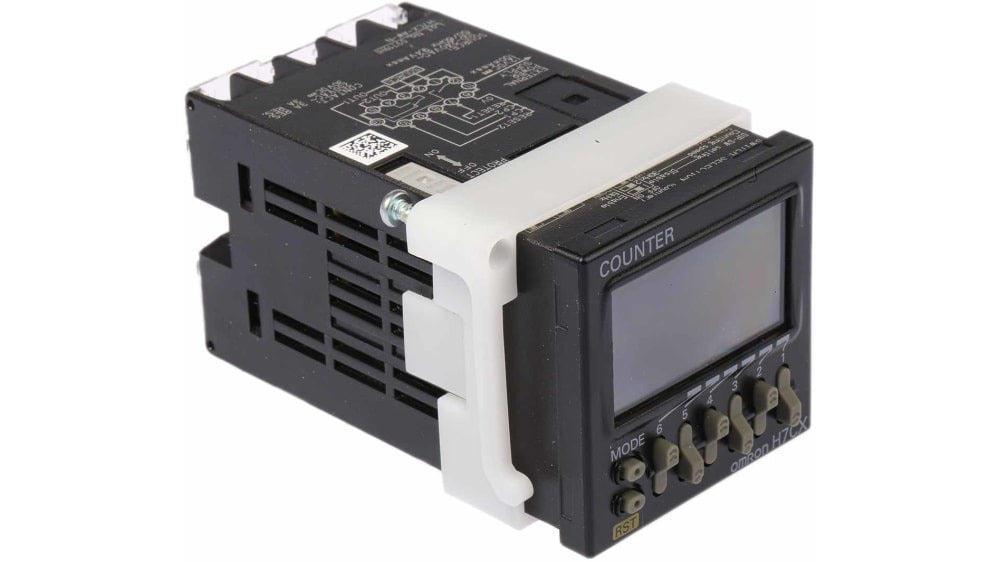

The H7CX-A11-N is a 6-digit multifunction counter with dual-color LCD display and relay output, designed for 100–240 VAC operation. It supports multiple counting modes and provides high-speed response with IP66-rated front protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
H7CX-A11-N |
| Subcategory |
Timer/Counter |
| Series |
H7CX Series |
| Counting Modes |
Up, Down, Quadrature, Command, Individual |
Number of Digits
|
6 |
| Display Type |
Dual-color LCD with backlight |
| Character Height |
10 mm (Main), 6 mm (Secondary) |
| Count Rate |
30 Hz / 5 kHz |
| Input Type |
Voltage / No-voltage |
| Output Type |
Relay |
| Supply Voltage |
100–240 VAC |
| Mounting Type |
Panel Mount |
| Panel Cutout |
45 × 45 mm |
| Termination Style |
Plug-in, 11-pin (Octal) |
| Operating Temperature |
–10°C to 55°C |
| Ingress Protection |
IP66 (Front Panel) |
| Weight |
4.585615 oz |
Information About H7CX-A11-N
The H7CX-A11-N is part of Omron’s H7CX series of advanced digital counters, designed to provide accurate and flexible counting in a wide range of automation environments. It supports preset and totalizer functions and offers several counting modes including up, down, quadrature, command, and individual. With a high-speed count rate of up to 5 kHz, it is well-suited for applications requiring fast and precise pulse processing. The bright dual-color backlit LCD screen displays six digits, making it ideal for monitoring longer production counts or cycles. Operating on a 100–240 VAC supply, the unit offers flexible installation with a plug-in 11-pin octal base and is protected by an IP66-rated front panel for use in harsh industrial environments.
Key Features:
- 6-Digit LCD Display: Dual-color backlit display provides clear and visible readings for both preset and current values.
- Multifunction Counting Modes: Supports up, down, quadrature, command, and individual modes for versatile automation tasks.
- High-Speed Count Rate (30 Hz / 5 kHz): Offers selectable counting speeds to accommodate both slow and high-frequency inputs.
- Relay Output: Includes durable contact output for triggering external devices such as alarms or relays.
- Wide Input Compatibility: Accepts both voltage and no-voltage inputs, enhancing flexibility with different signal sources.
- 100–240 VAC Power Supply: Operates reliably across a wide AC voltage range without needing a separate power adapter.
- Front, External, and Programmable Reset Options: Multiple reset methods enable easy integration into control systems.
- IP66 Front Panel Protection: Dust-tight and water-resistant, suitable for demanding industrial environments.
The H7CX-A11-N combines high-speed counting, clear six-digit display, and reliable AC-powered operation in a compact, durable package for industrial use.
