Description

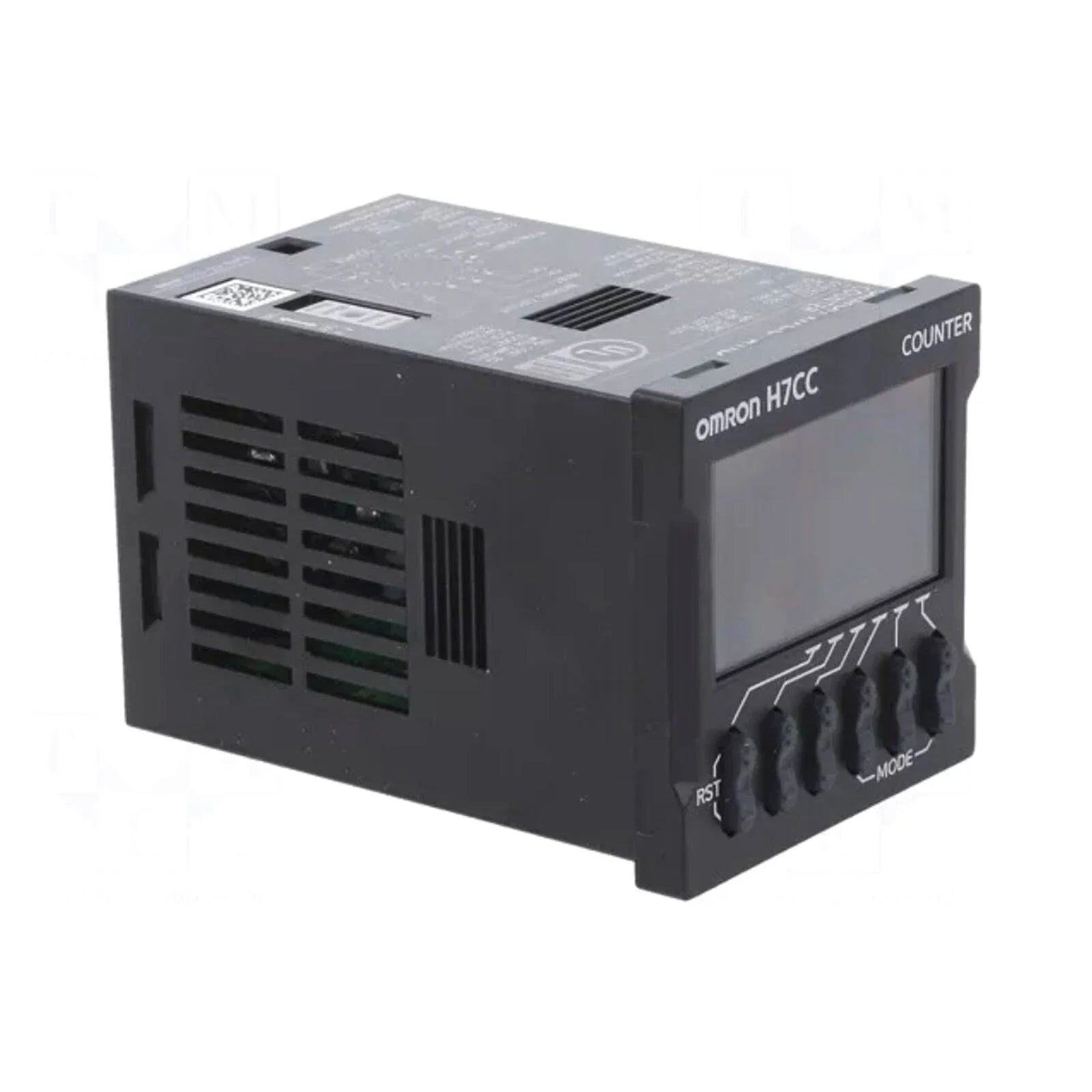

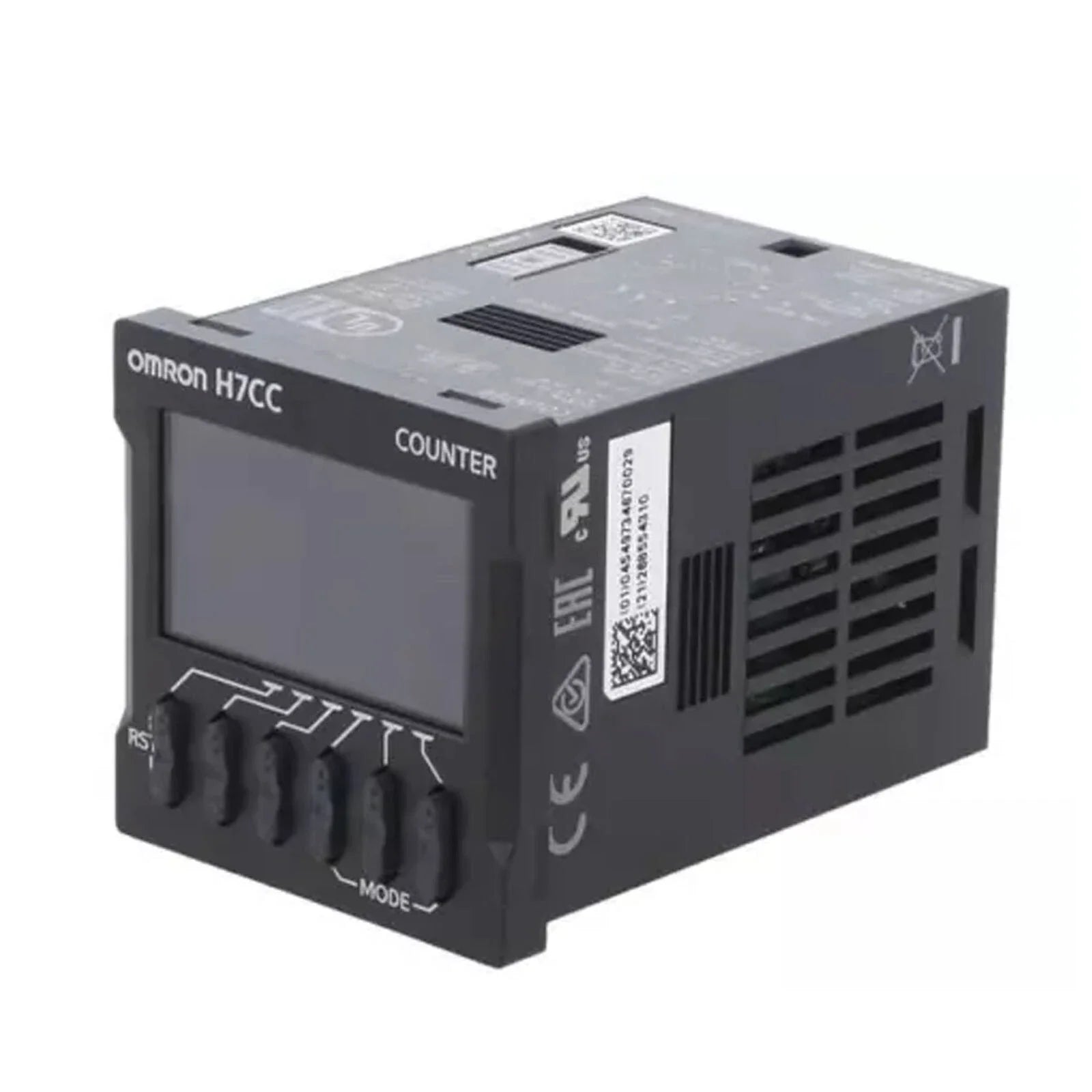

The Omron H7CC-A11 is an electronic preset counter designed for accurate pulse counting and process monitoring in industrial automation systems. It features a six-digit LCD display and supports progressive or reversing counting with preset functionality. This counter is commonly used for production tracking, machine cycle monitoring, and process control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Controls & Indicators |
| Part Number |
H7CC-A11 |
| Subcategory |
Time/Count Totalizer |
| Series |
H7CC |
| Counter Type |
Electronic preset counter |
| Display Type |
LCD with backlight |
| Number of Digits |
6 |
| Counting Range |
-99999 to 999999 |
| Maximum Counting Frequency |
10 kHz |
| Input Types |
Contact, NPN, PNP |
| Input Voltage Range |
0–2 V / 4.5–30 V |
| Output Type |
SPDT relay |
| Relay Rating |
240 VAC / 3 A |
| Supply Voltage |
100–240 VAC |
| Mounting |
Panel, DIN rail, or socket |
| Panel Size |
48 × 48 mm |
| Operating Temperature |
-10°C to 55°C |
| Number of Pins |

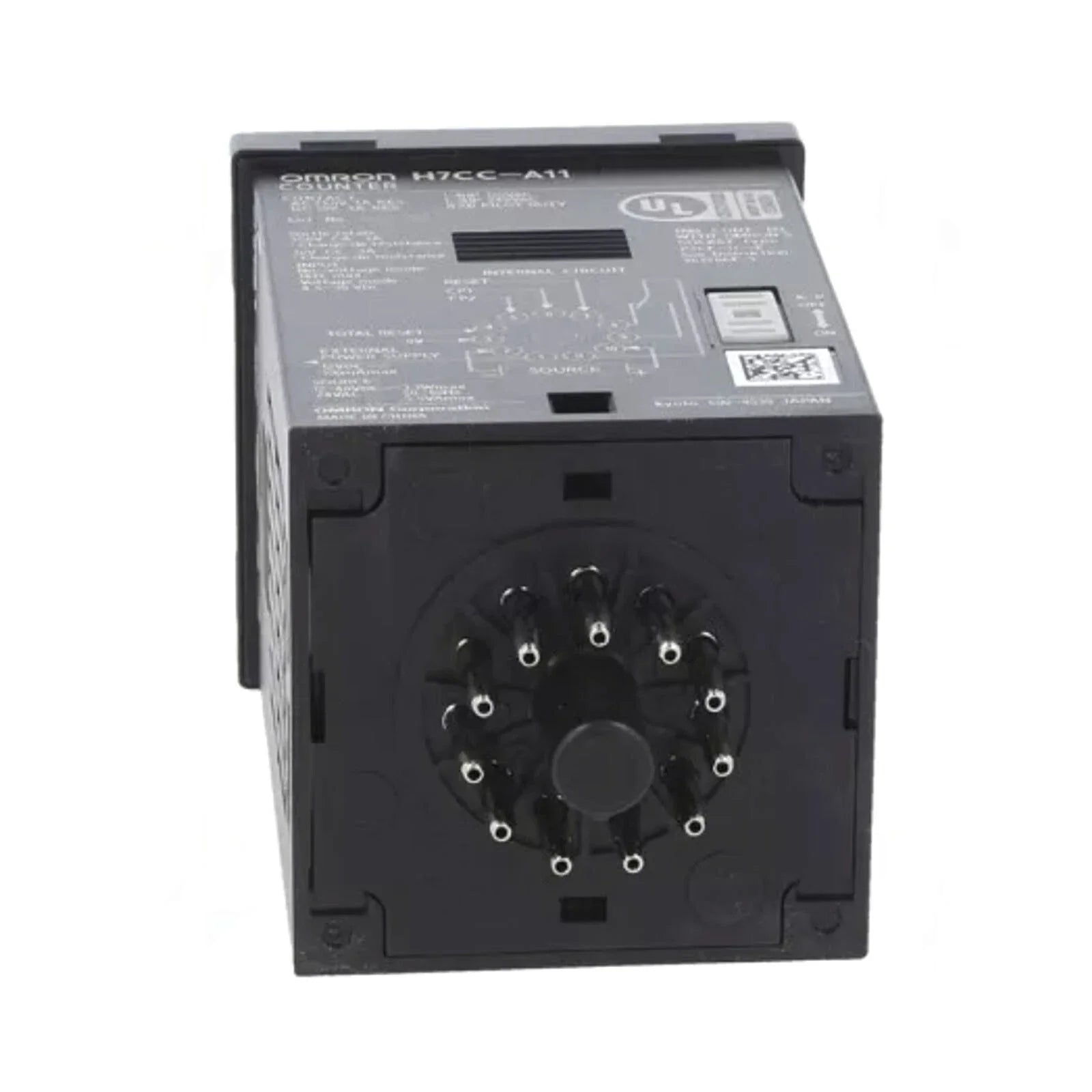

11 |
| Weight |
0.33 lbs |
Information About H7CC-A11
The H7CC-A11 is part of the Omron H7CC series of electronic counters designed for industrial counting and monitoring tasks. It supports a wide input voltage range and can accept contact, NPN, or PNP input signals, allowing compatibility with various sensors and control devices. The counter includes a relay output for control actions based on preset values, enabling integration with machine control circuits. With its compact 1/16 DIN design and plug-in socket connection, the device can be easily installed in control panels or mounted on DIN rails.
Key Features:
-

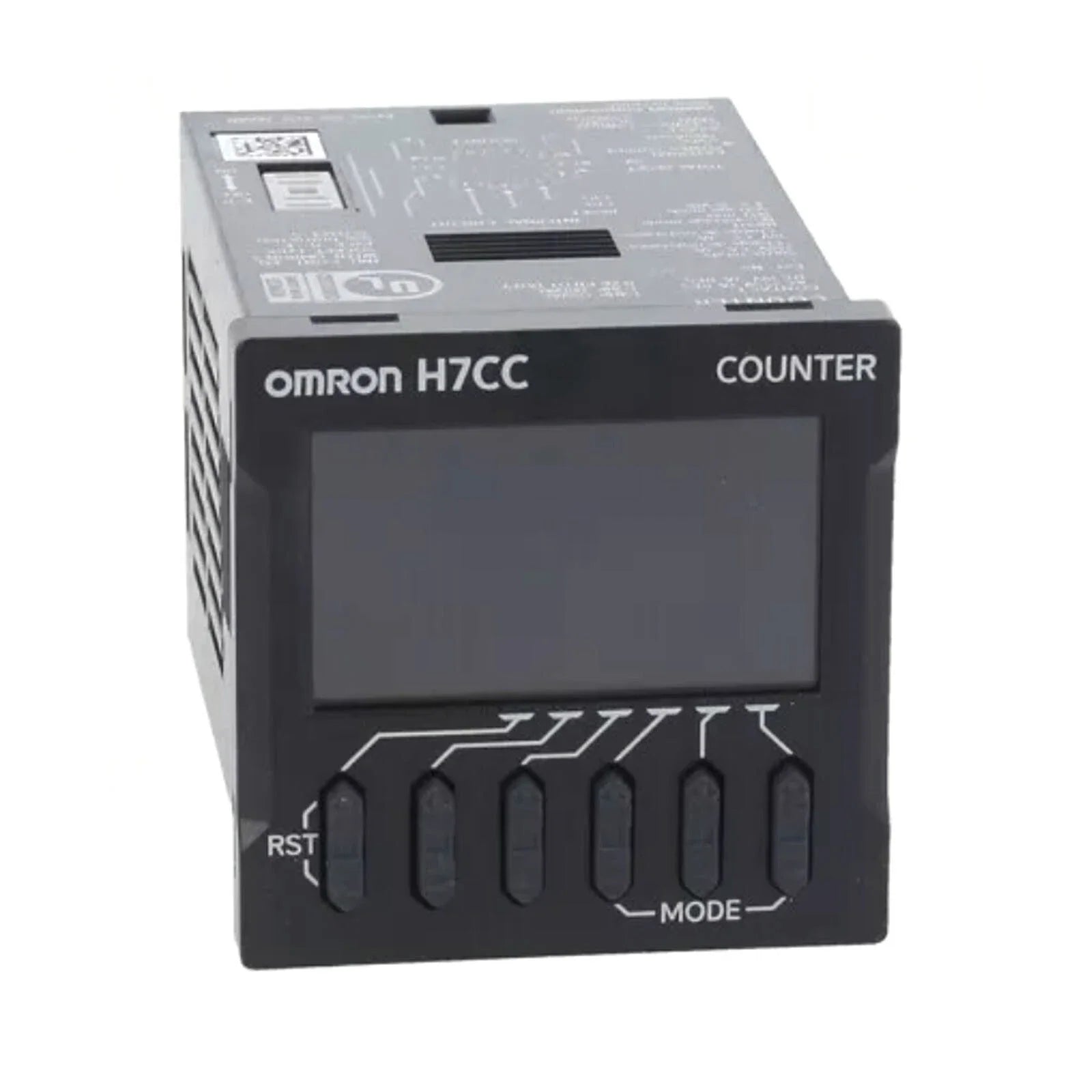

Six-Digit LCD Display: Provides clear visualization of counting values and preset parameters.
-
Wide Counting Range: Supports values from -99999 to 999999 for flexible counting applications.
-
Preset Counter Function: Enables automatic control output when preset counts are reached.
-
High Counting Frequency: Accepts input signals up to 10 kHz for fast pulse detection.
-
Flexible Input Compatibility: Accepts contact, NPN, or PNP input signals.
-
Relay Output Control: Includes SPDT relay rated up to 240 VAC at 3 A for switching applications.
-
Multiple Reset Methods: Supports both manual and electrical reset options.
-
Compact Panel Design: Standard 48 × 48 mm panel size suitable for industrial control panels.
The H7CC-A11 delivers the reliability and precision required for pulse counting, machine monitoring, and automation control applications.
