Description

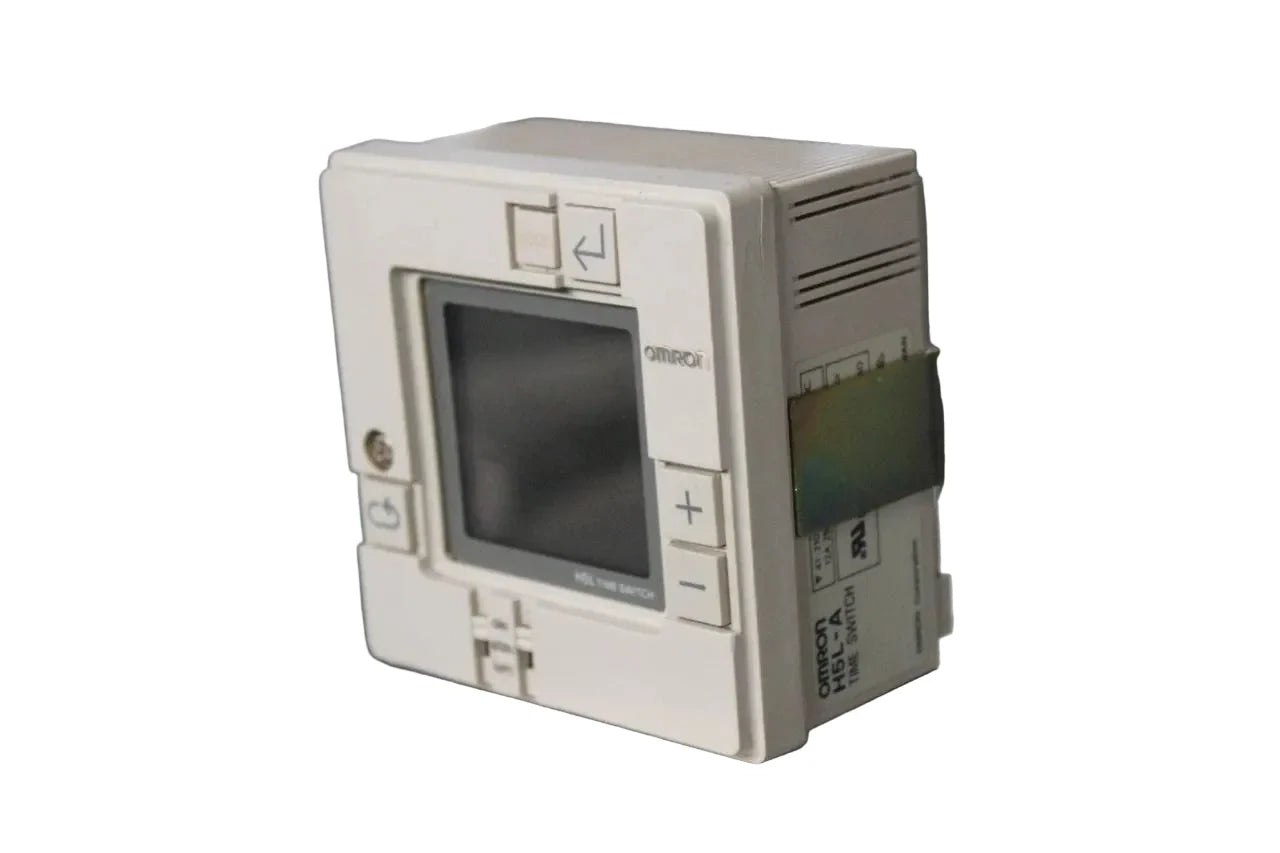

The Omron H5L-A is a panel-mounted daily and weekly programmable timer designed for precise time-based control in industrial and commercial applications. Operating on a wide 100–240 VAC supply range, it supports timing schedules from minutes up to seven days. This timer provides reliable switching through electromechanical relay outputs for dependable long-duration timing control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron Automation |
| Category |
Timers |
| Part Number |
H5L-A |
| Subcategory |
Programmable Timers |
| Series |
H5L Series |
| Product Type |
Panel Mount Timer |
| Supply Voltage |
100–240 VAC |
| Control Voltage |
240 VAC |
| Timing Range |
1 Minute to 1 Week |
| Time Formats |
Daily / Weekly |
| Display Type |
LCD |
| Relay Type |
Electromechanical |
| Output Circuit |
SPST-NO (1 Form A) x 2 |
| Contact Rating |
15 A @ 250 VAC |
| Mounting Type |
Panel Mount |
| Panel Cutout Dimensions |
92 mm x 92 mm |
| Termination Style |
Screw Terminal |
| Standards |
UL, CSA |
| Weight |
0.88 lb |
Information About H5L-A
The H5L-A is part of Omron’s H5L series of time delay relays, engineered for programmable daily and weekly scheduling tasks. It features a clear LCD display with digital key adjustment for intuitive time setting and monitoring. The timer is designed for panel mounting with a standardized 92 mm x 92 mm cutout, allowing easy integration into control panels. Built to meet UL and CSA standards, it is suitable for applications requiring consistent timing accuracy and robust relay performance.
Key Features:
- Daily and Weekly Programmable Timer: Supports timing cycles from 1 minute up to 7 days.
- Wide AC Supply Range: Operates on 100–240 VAC for flexible installation.
- LCD Display Interface: Provides clear visibility of timing settings and status.
- Dual Relay Outputs: Includes two SPST-NO (Form A) electromechanical relay circuits.
- High Contact Rating: Rated at 15 A at 250 VAC for switching industrial loads.
- Panel Mount Design: Fits standard 92 mm x 92 mm panel cutouts.
- Digital Timing Adjustment: Uses up/down digit keys for precise time configuration.
The H5L-A delivers the reliability and precision required for programmable time control in industrial automation and facility management systems.
